Transfer Case Output Shaft Seal Replacement - Rear
Transfer Case Output Shaft Seal Replacement - RearTools Required
^ J37668-A Output Shaft Seal Installer (4401 & 4470 Transfer Case)
Removal Procedure
1. Raise the vehicle.

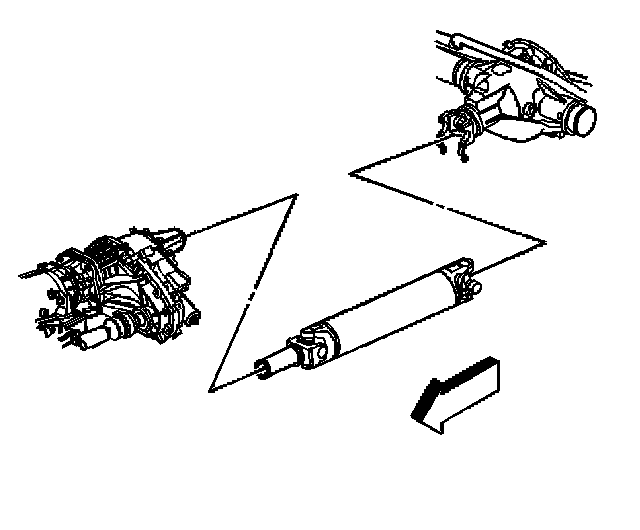

2. Remove the rear propeller shaft.
3. Remove the rear output shaft seal.
Installation Procedure

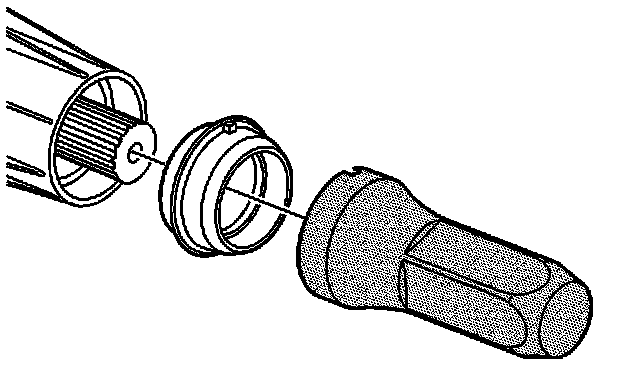

1. Align the rear output shaft seal.

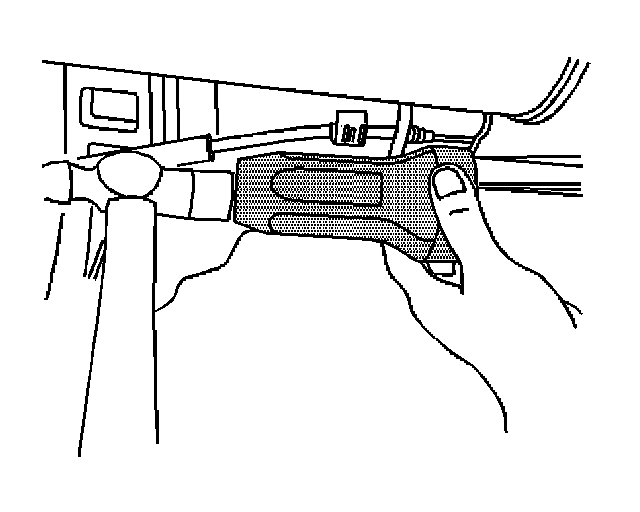

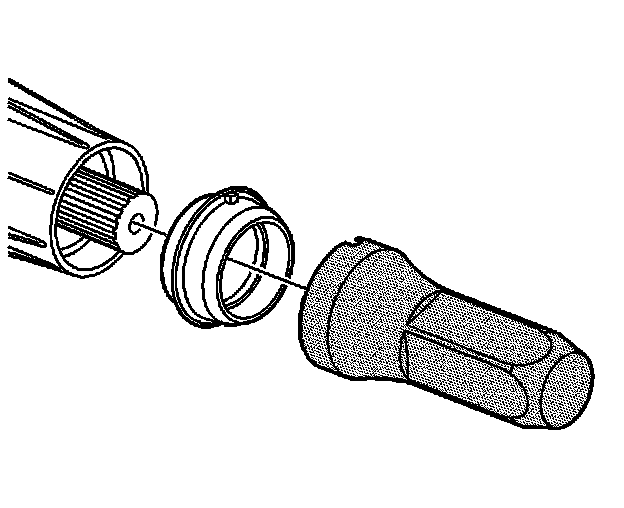

2. Using the J37668-A, install the rear output shaft seal.

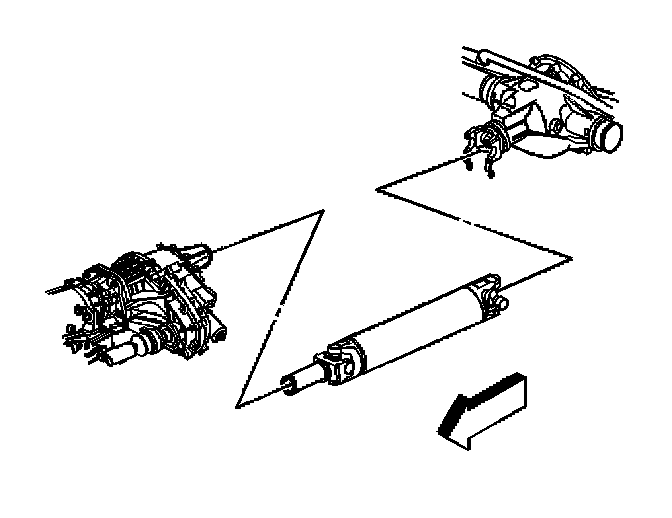

3. Install the rear propeller shaft.
4. Inspect the transfer case fluid level.
5. Lower the vehicle.
