No Correction For Slip In AWD Mode
No Correction for Slip in AWD ModeTest Description
The numbers below refer to the step numbers on the diagnostic table.
2. Helps determine whether the front axle switch is functioning properly.
3. Helps determine whether the front axle switch is locking and unlocking.
4. Tests transfer case clutch performance.

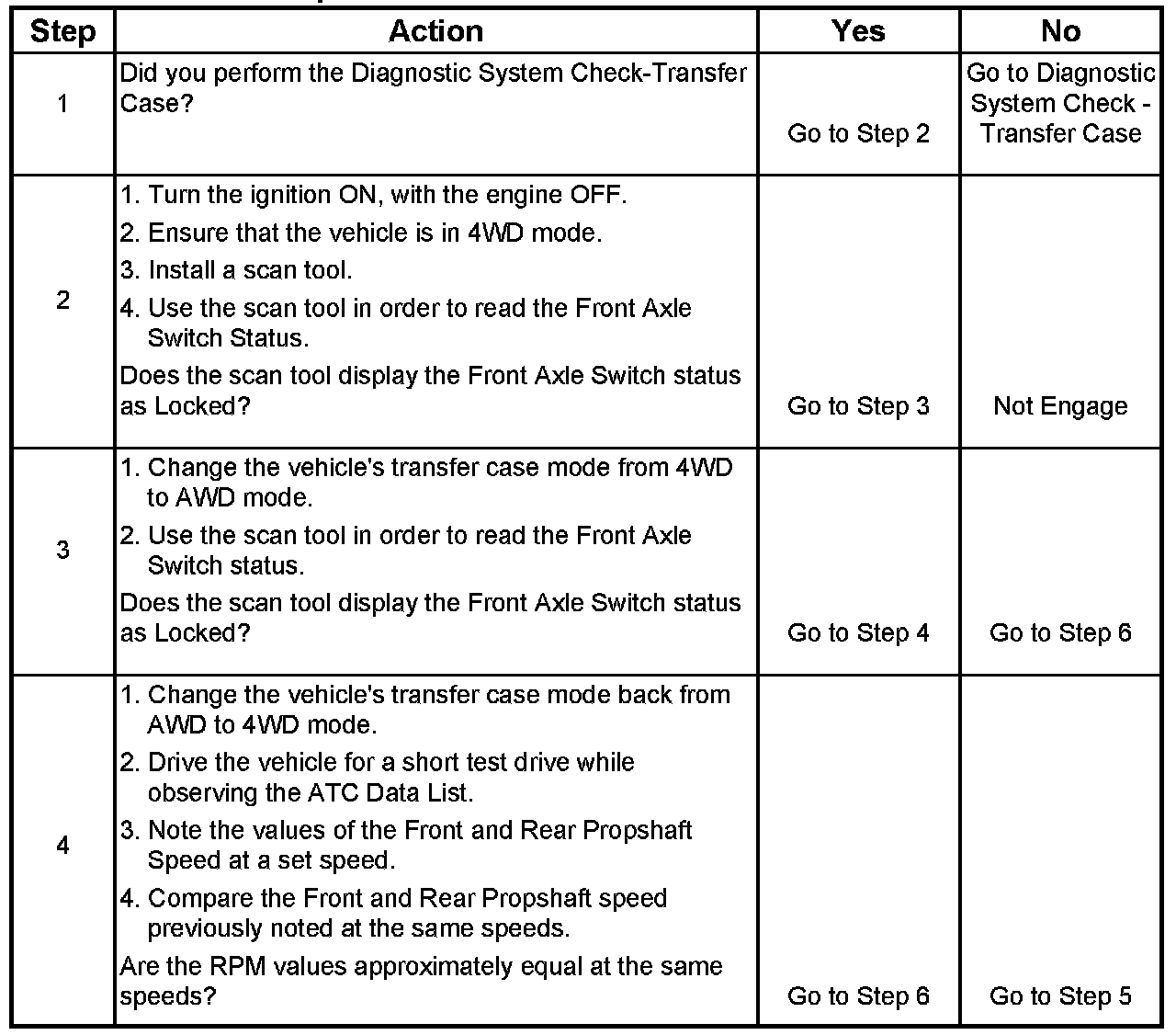

No Correction for Slip in AWD Mode (1 Of 2):

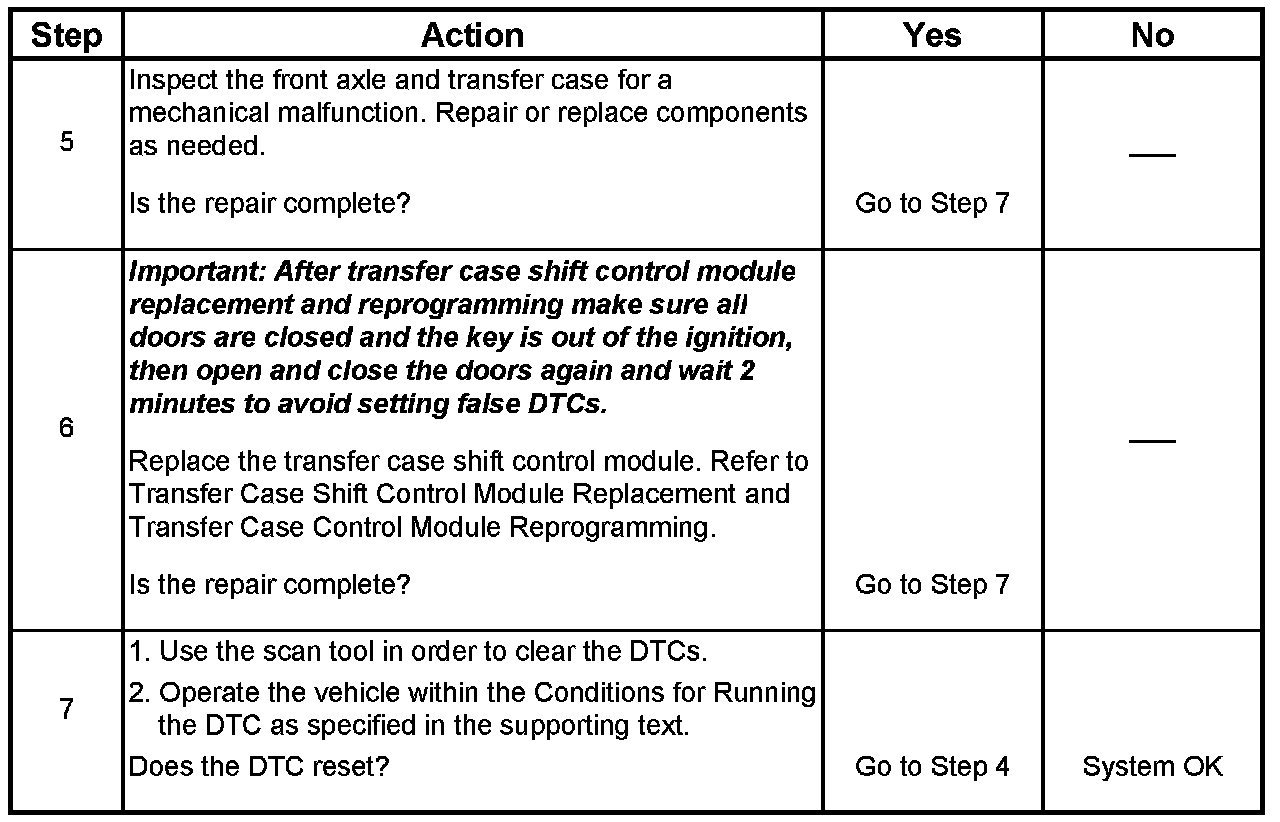

No Correction for Slip in AWD Mode (2 Of 2):
