Hinge Replacement - Endgate Lower - Endgate Side

Hinge Replacement - Endgate Lower - Endgate Side

Removal Procedure

1. Remove the endgate from the vehicle.




2. Remove the bolts retaining the hinge to the endgate.
3. Remove the hinge from the endgate.

Installation Procedure




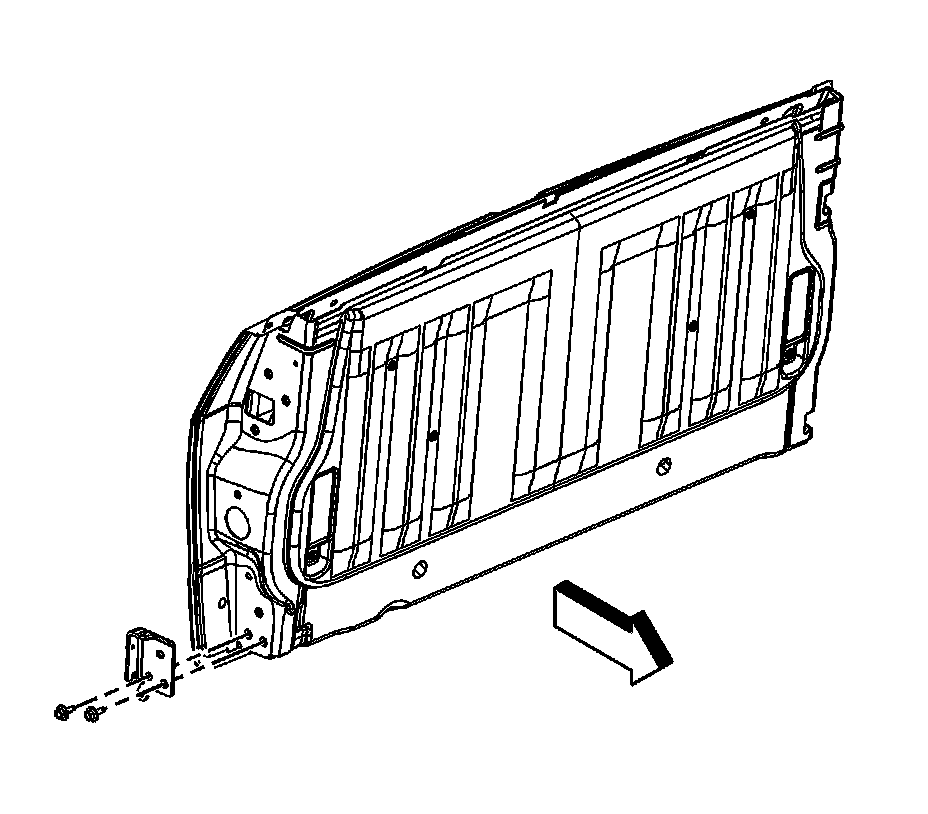

1. Install the hinge to the endgate.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the bolts retaining the hinge to the endgate.

1. Tighten the lower forward bolt (2) to 25 N.m (18.4 lb ft).
2. Tighten the lower rear bolt (1) to 25 N.m (18.4 lb ft),

3. Install the endgate to the vehicle.
