Diesel Data
: Automotive Repair
Home
>>
Isuzu Truck
>>
2005
>>
Ascender 4WD V8-5.3L
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Hydraulic System
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
Initial Inspection and Diagnostic Overview
Hydraulic Brake System Diagnosis

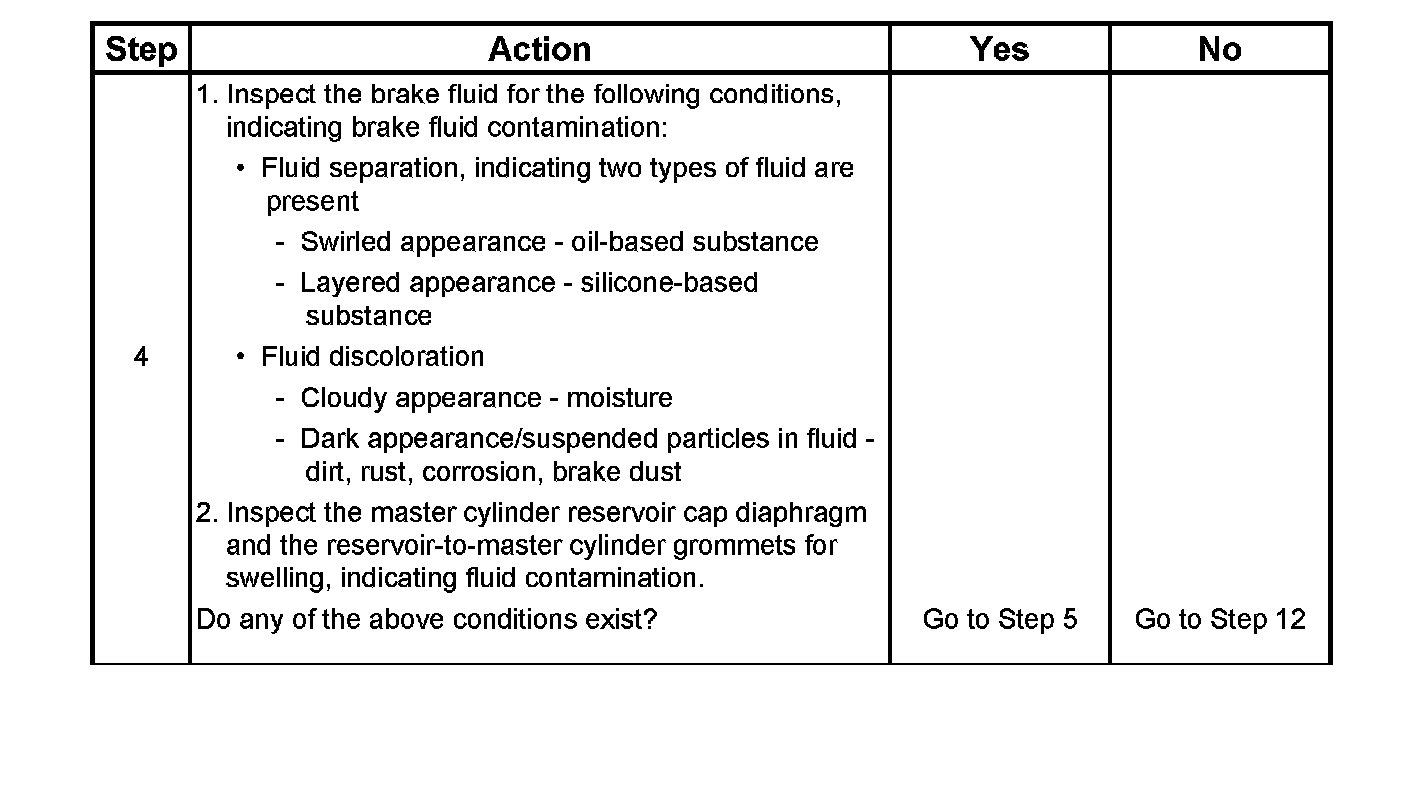

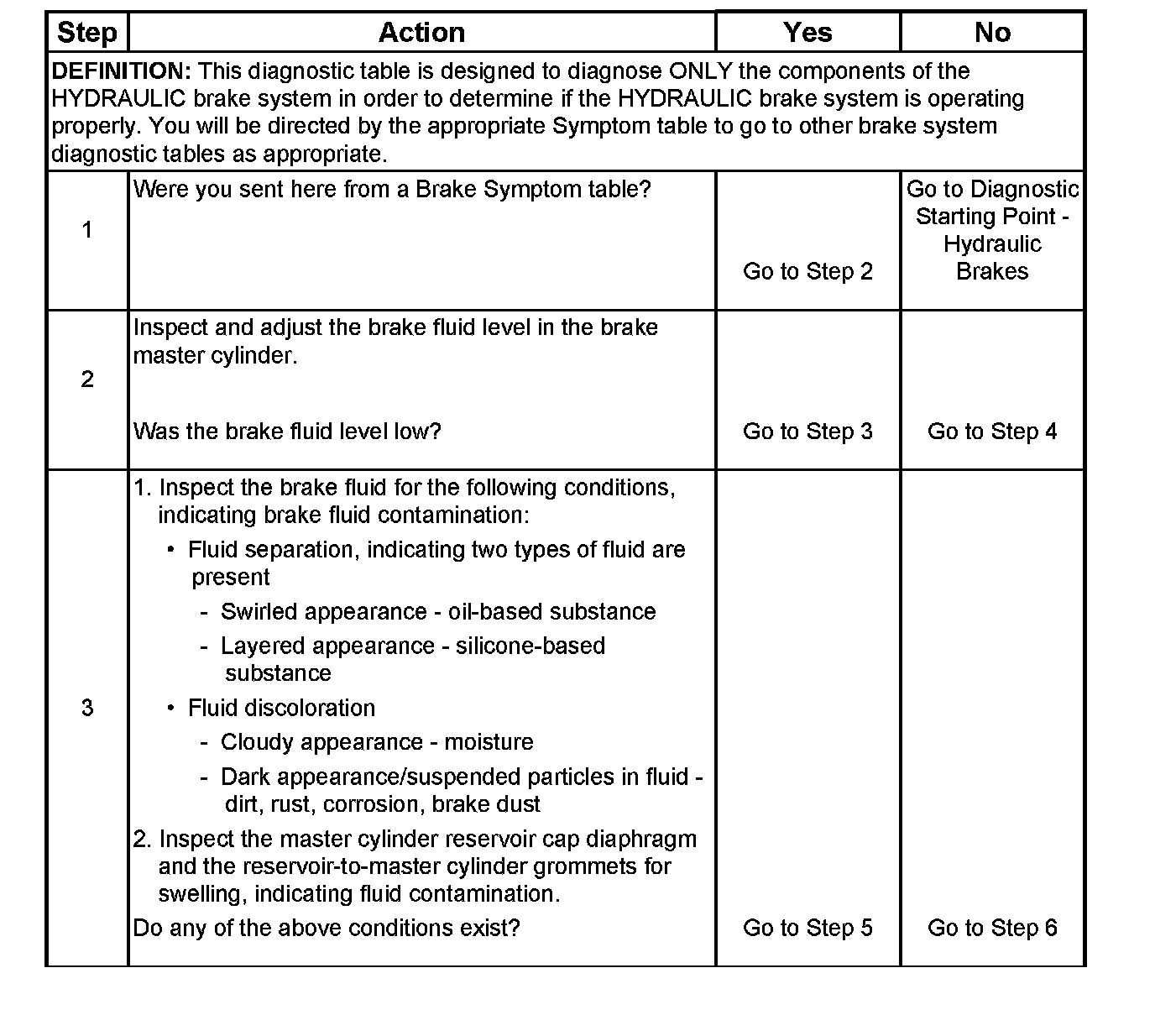

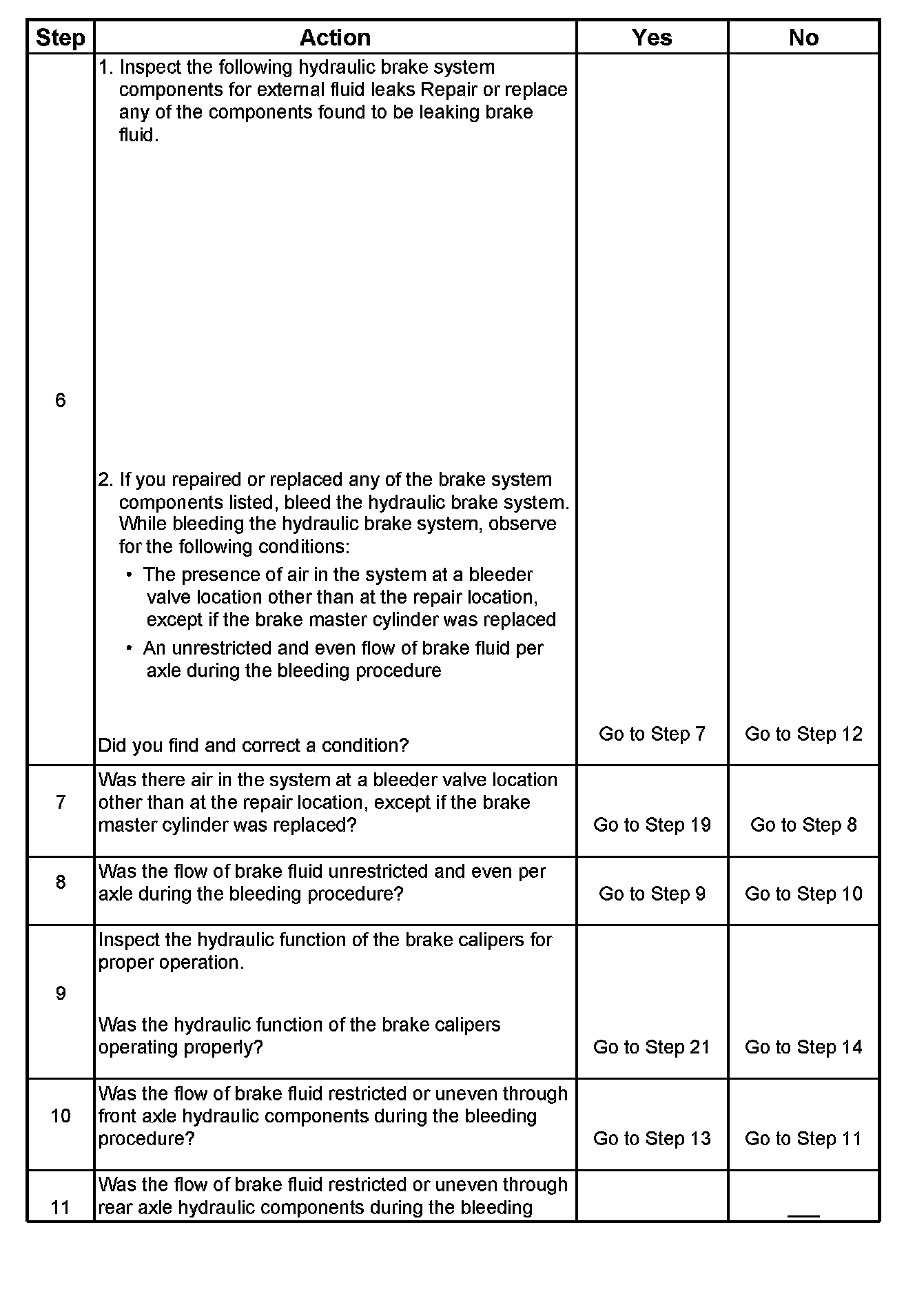

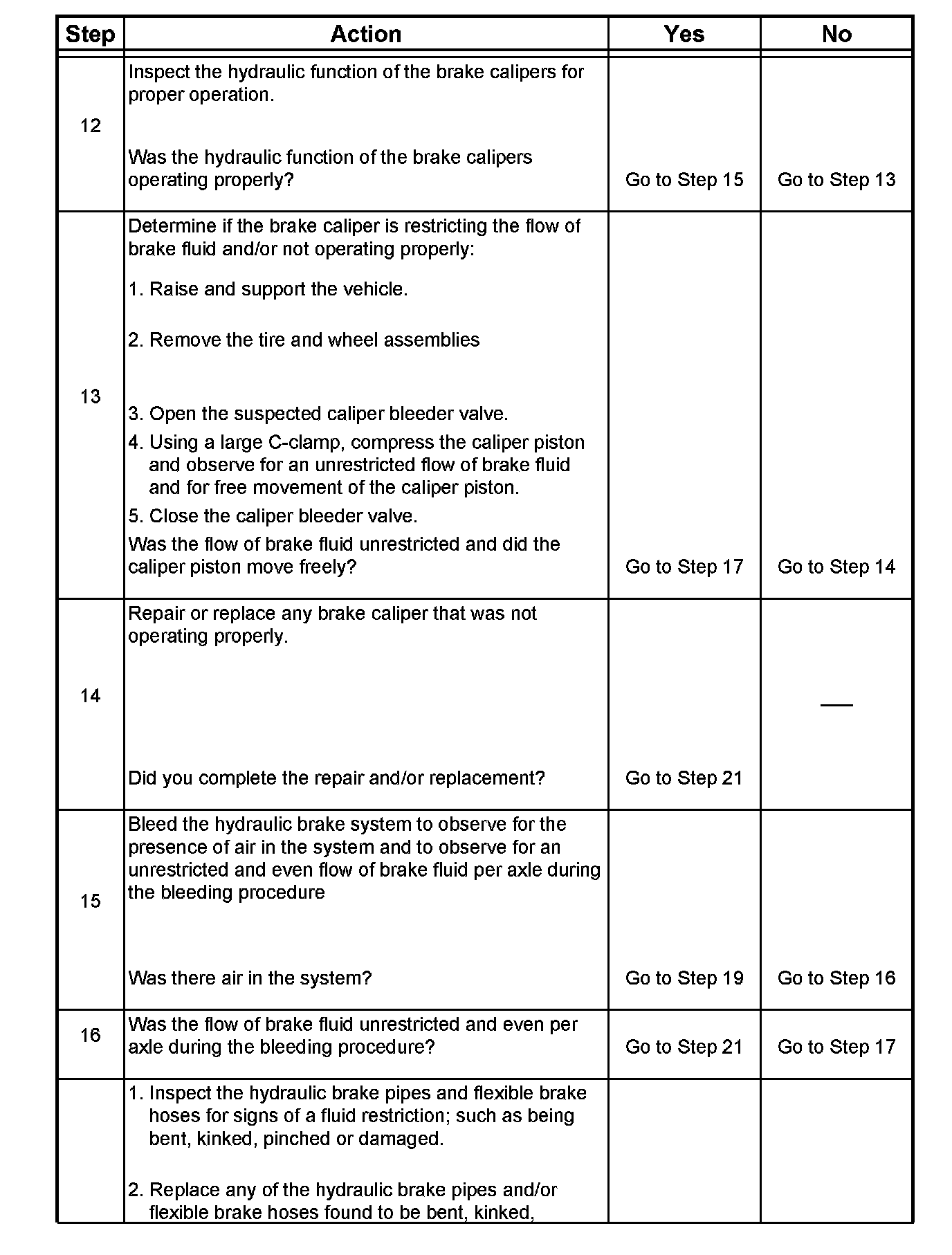

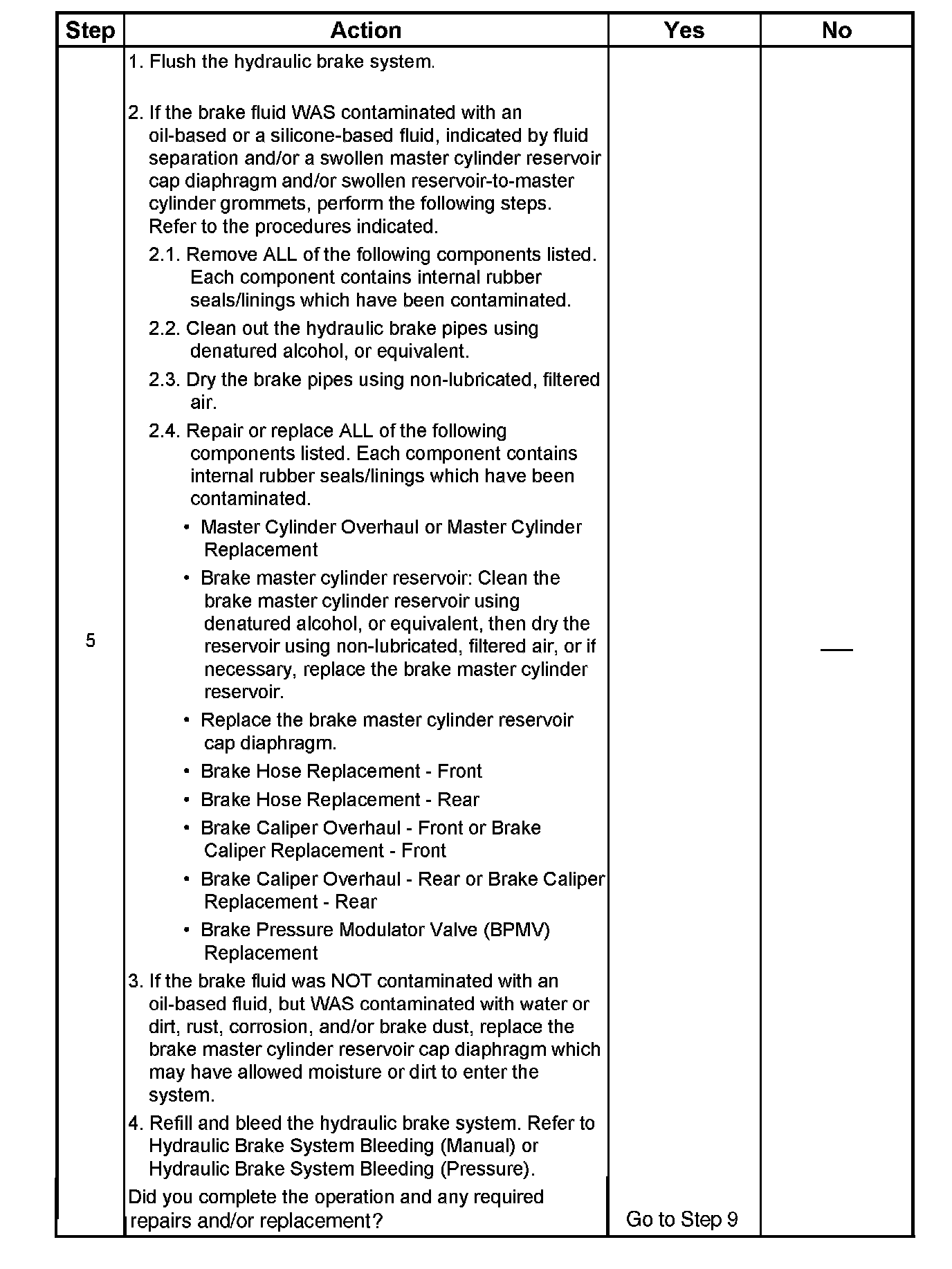

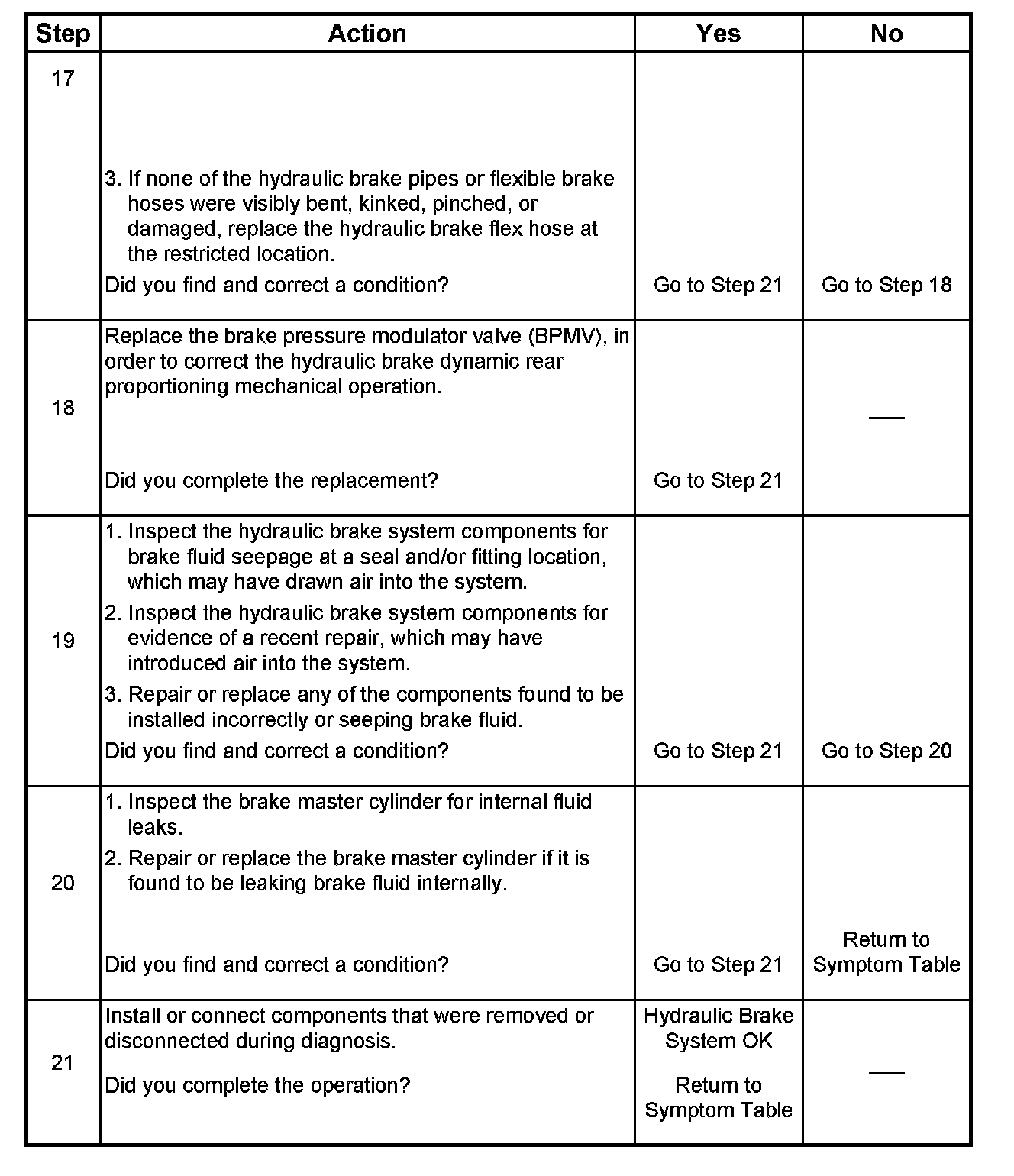

Test 1 Of 6:
Test 2 Of 6:
Test 3 Of 6:
Test 4 Of 6:
Test 5 Of 6:
Test 6 Of 6:
