Initial Inspection and Diagnostic Overview
>>
HVAC
>>
Heating Performance Diagnostic
Heating Performance Diagnostic

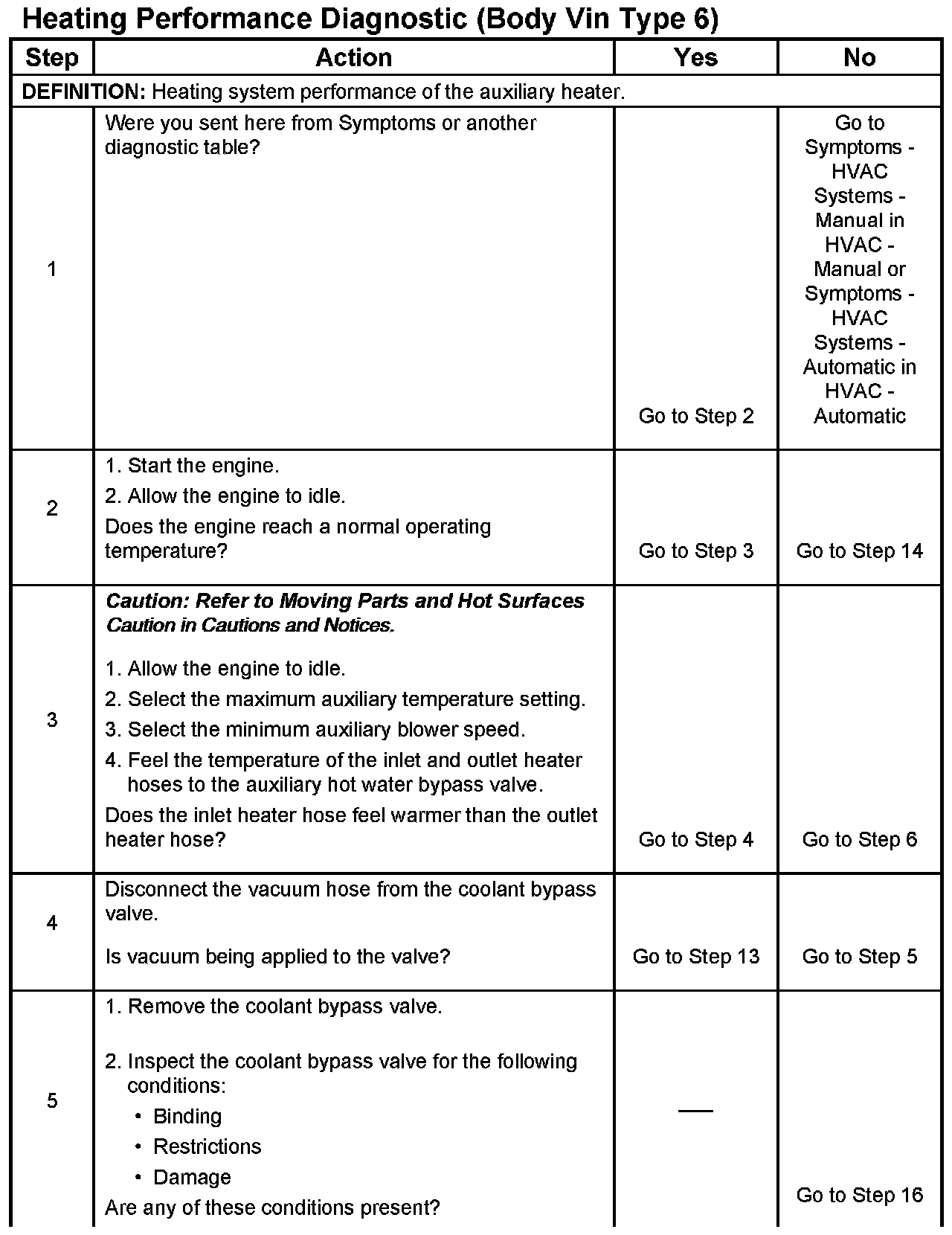

Step 1 - 5:

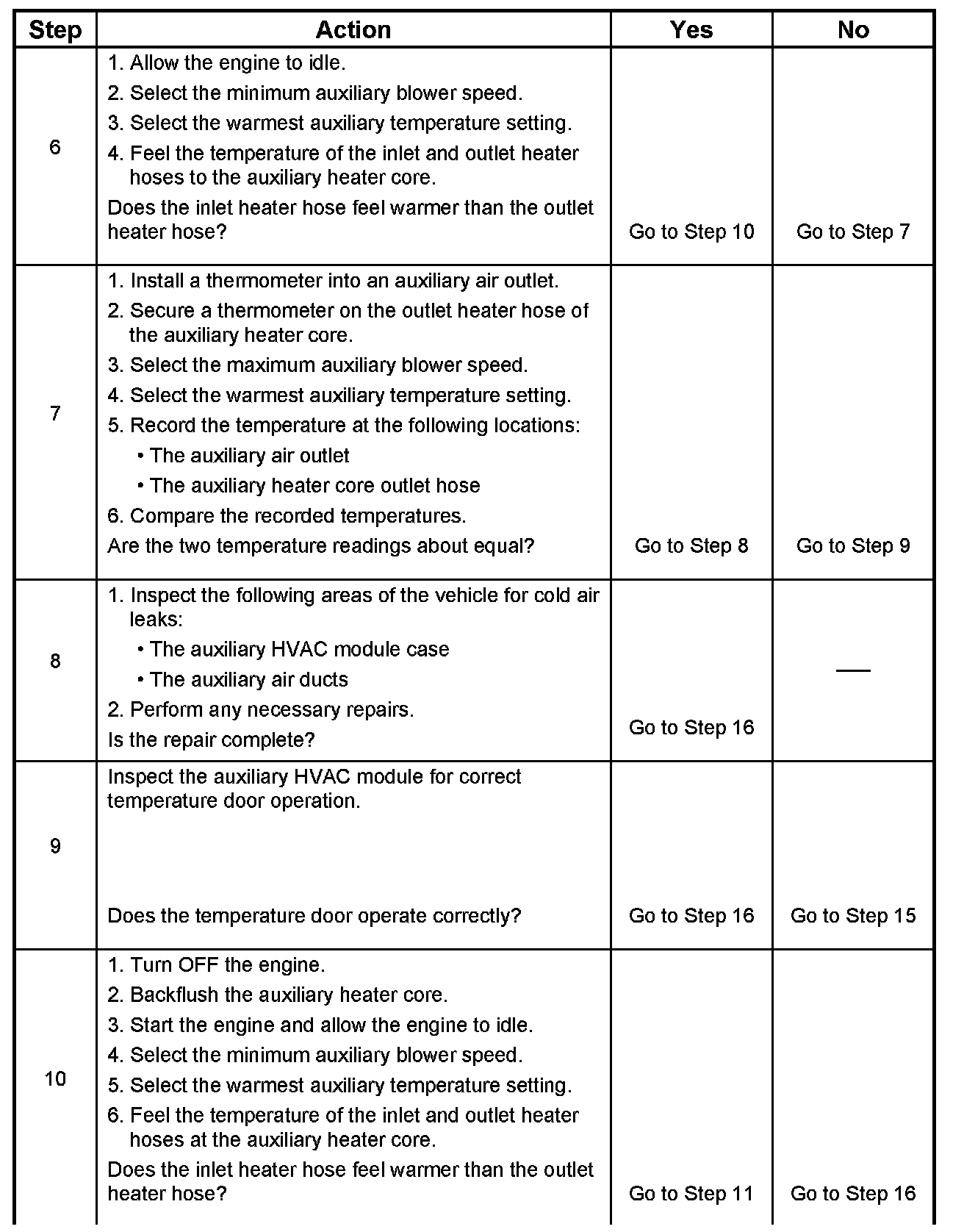

Step 6 - 10:

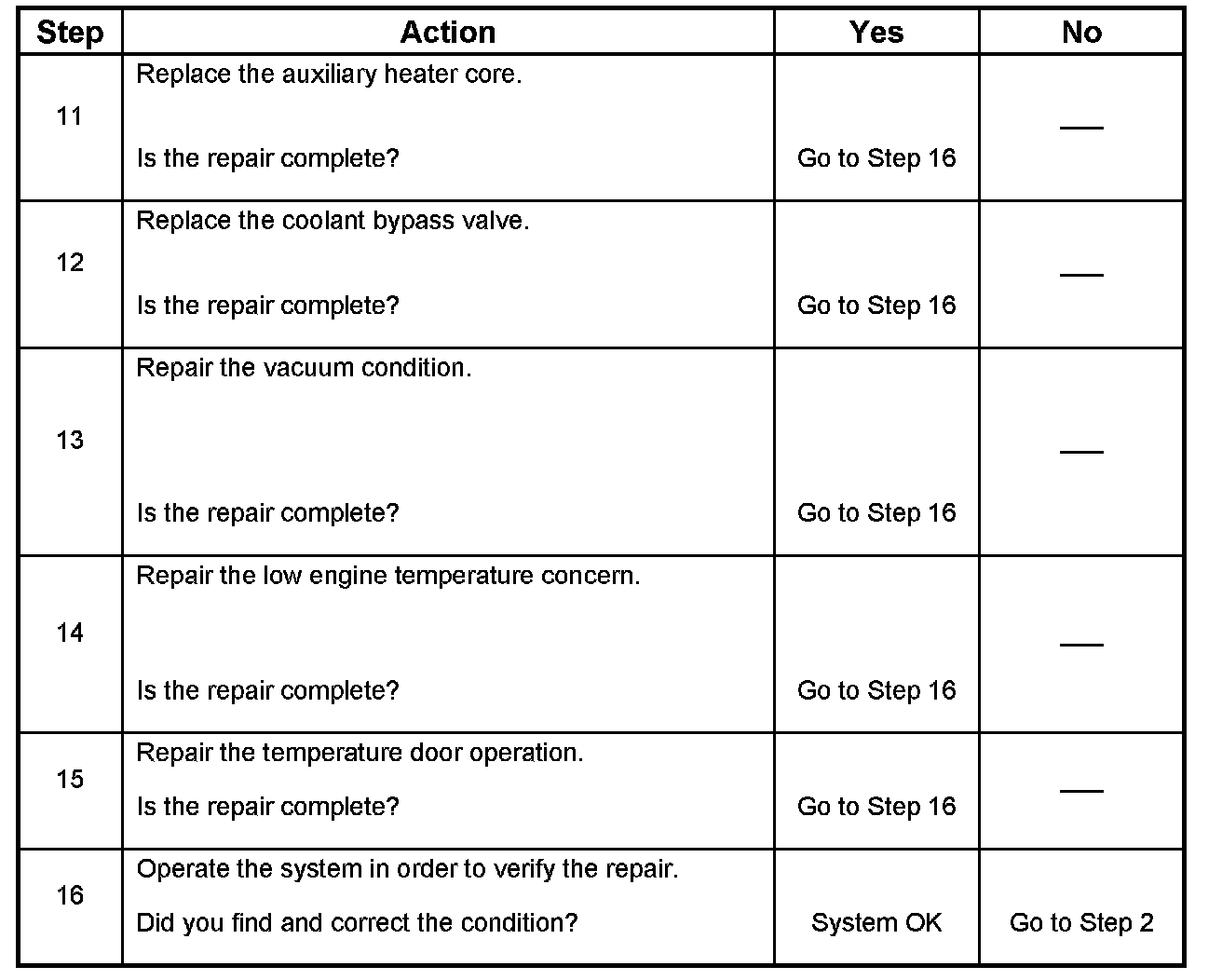

Step 11 - 16:
