Home >> Isuzu Truck >> 2005 >> Ascender 4WD V8-5.3L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> HVAC - Manual >> Blower Motor Malfunction - Auxiliary

Blower Motor Malfunction - Auxiliary

Step 1 - 4:

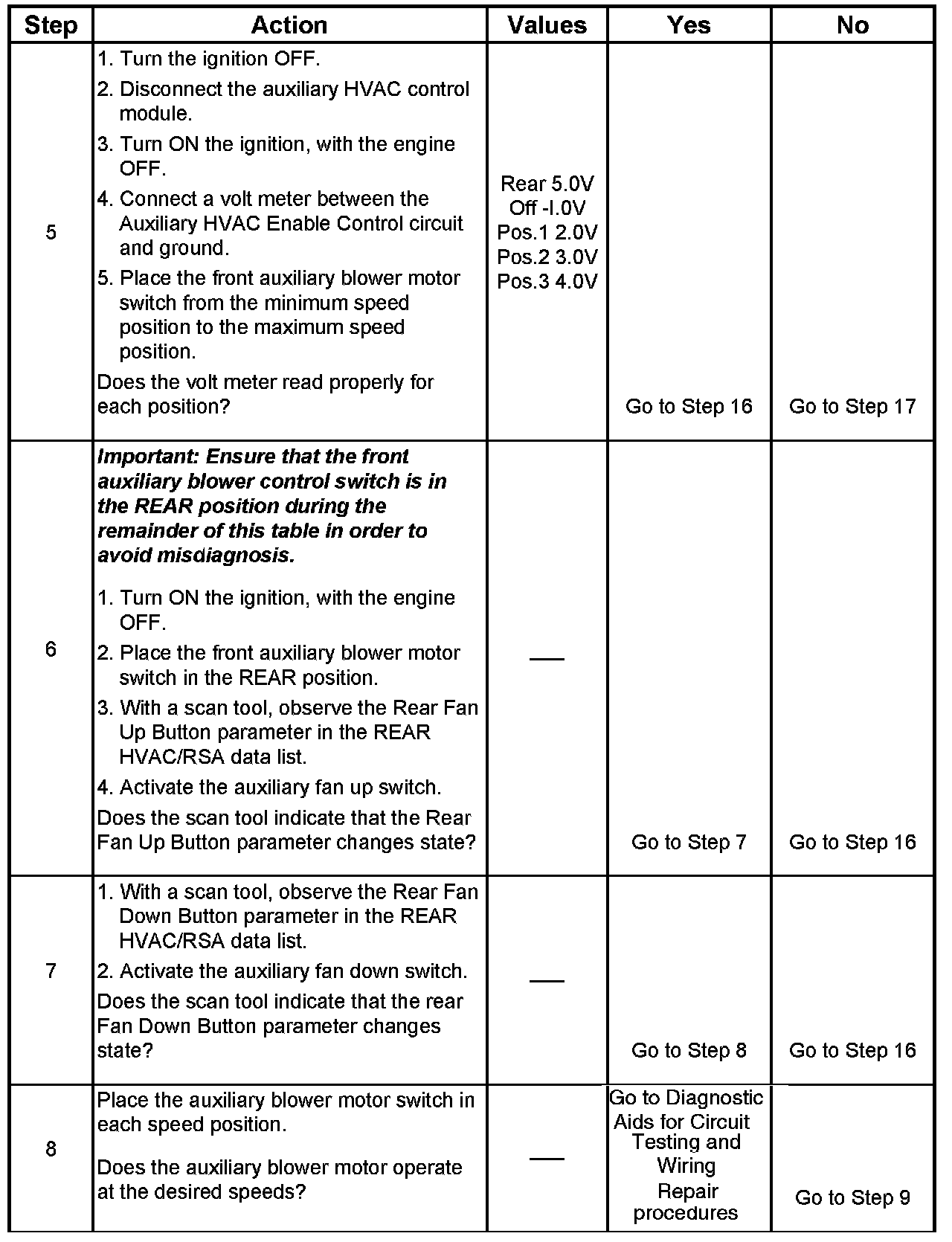

Step 5 - 8:

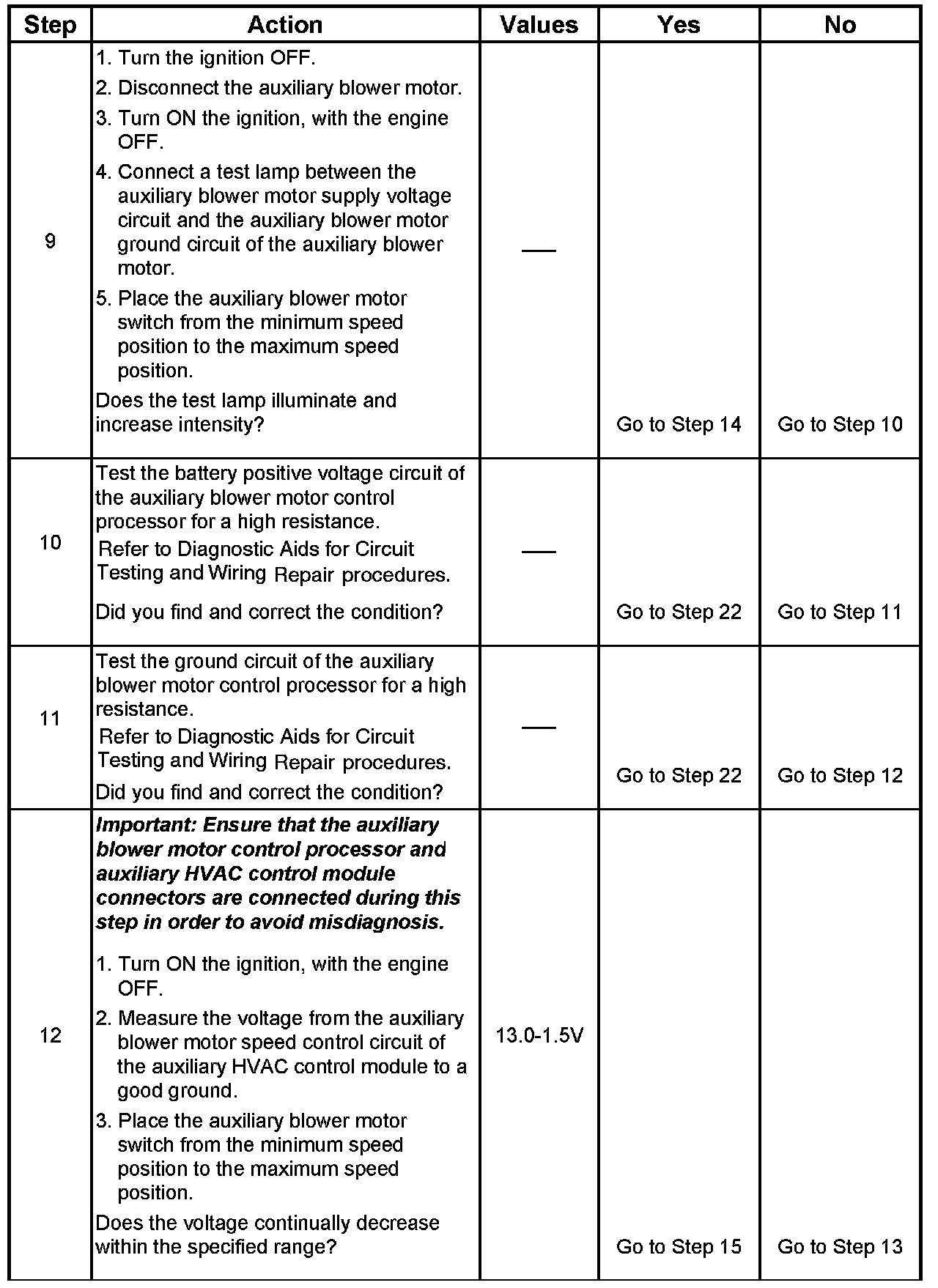

Step 9 - 12:

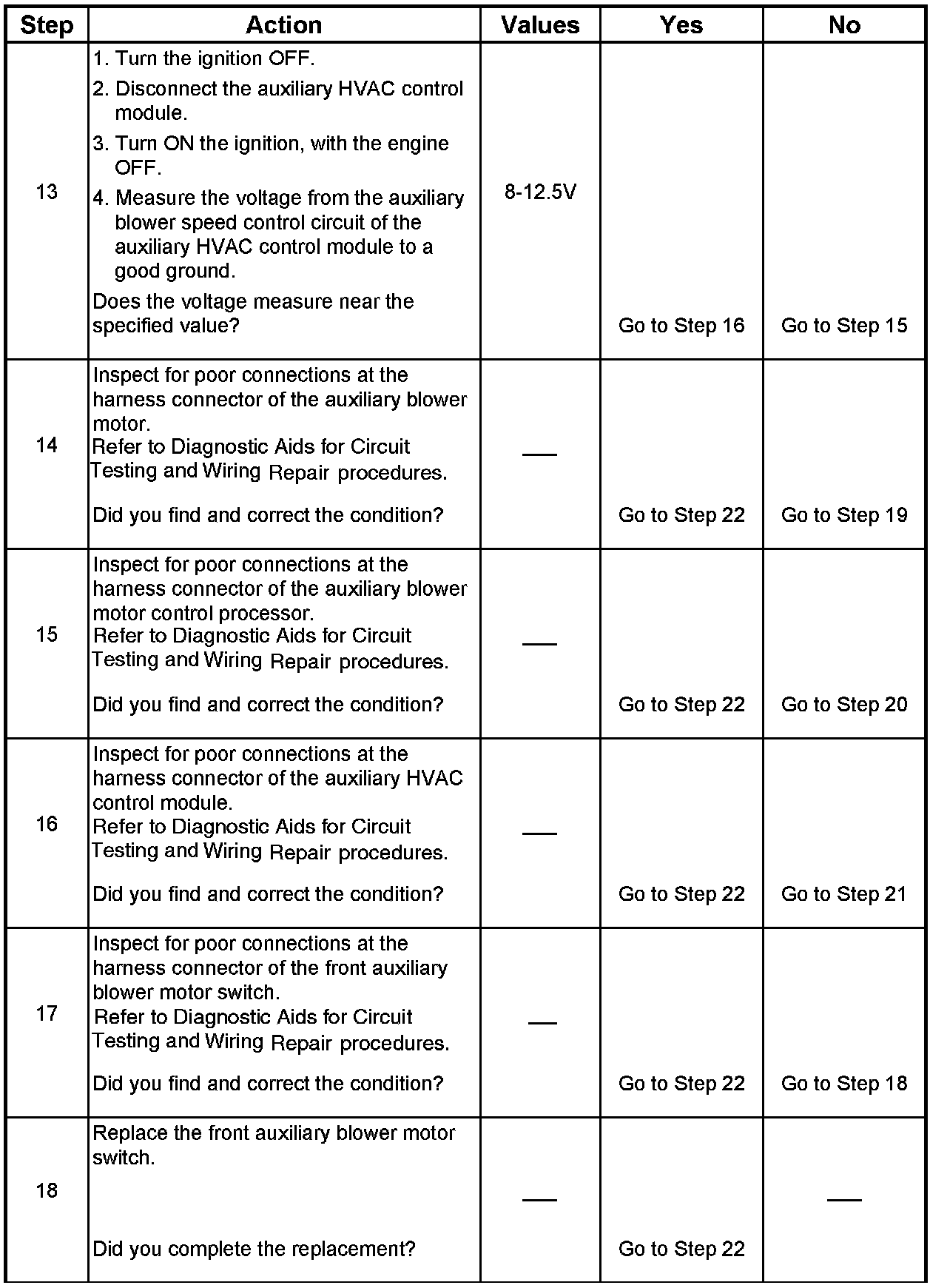

Step 13 - 18:

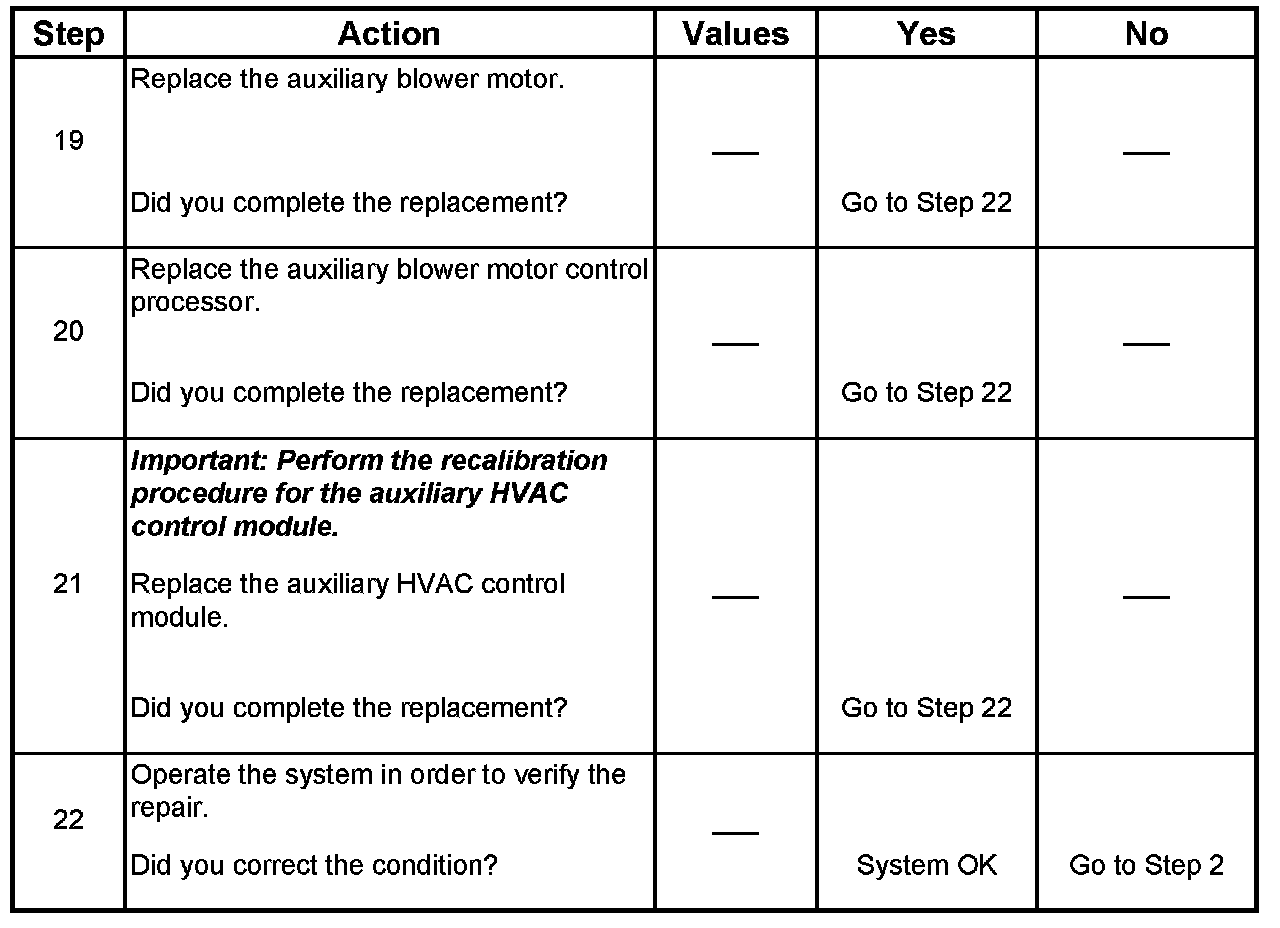

Step 19 - 22:
