Home >> Isuzu Truck >> 2005 >> Ascender 4WD V8-5.3L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> HVAC >> Diagnosis By Symptom >> Odor Diagnosis

Odor Diagnosis

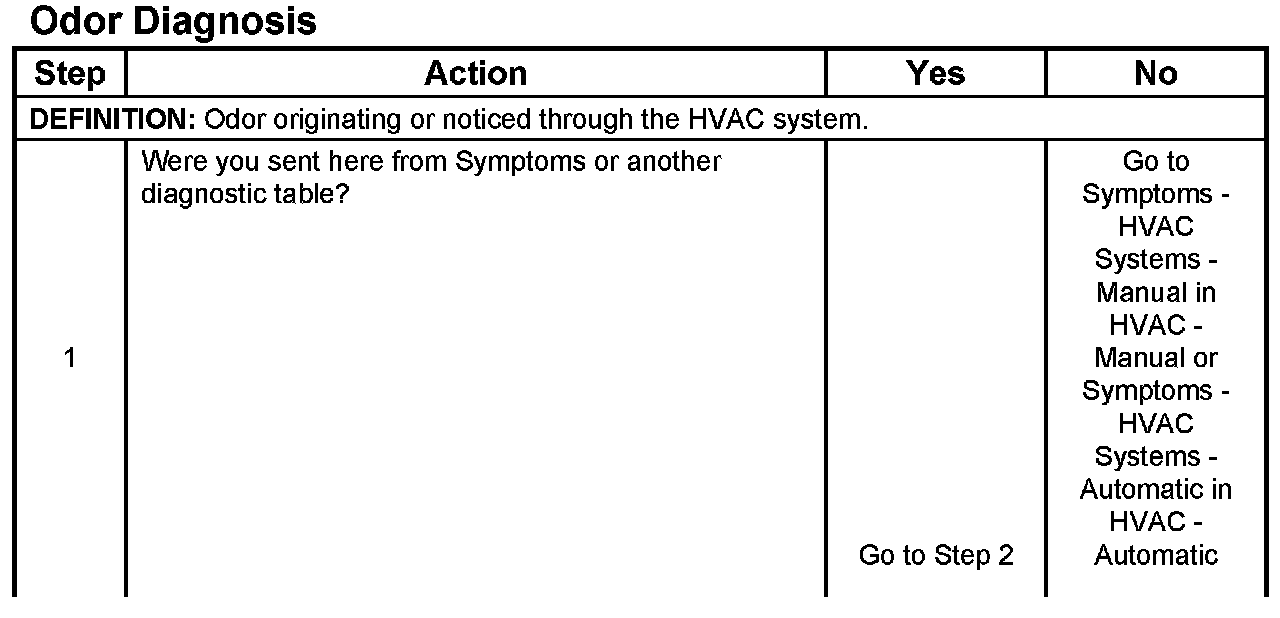

Step 1:

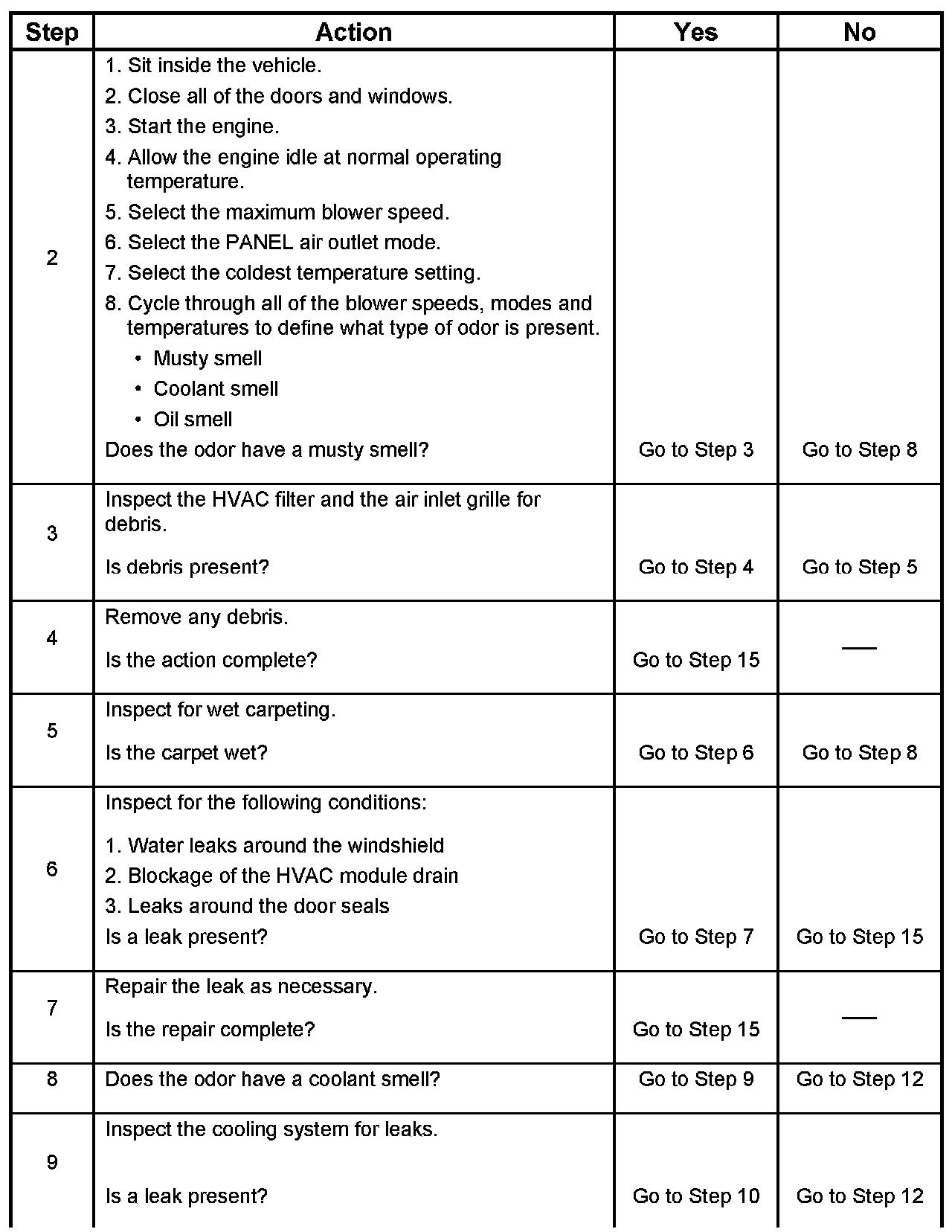

Step 2 - 9:

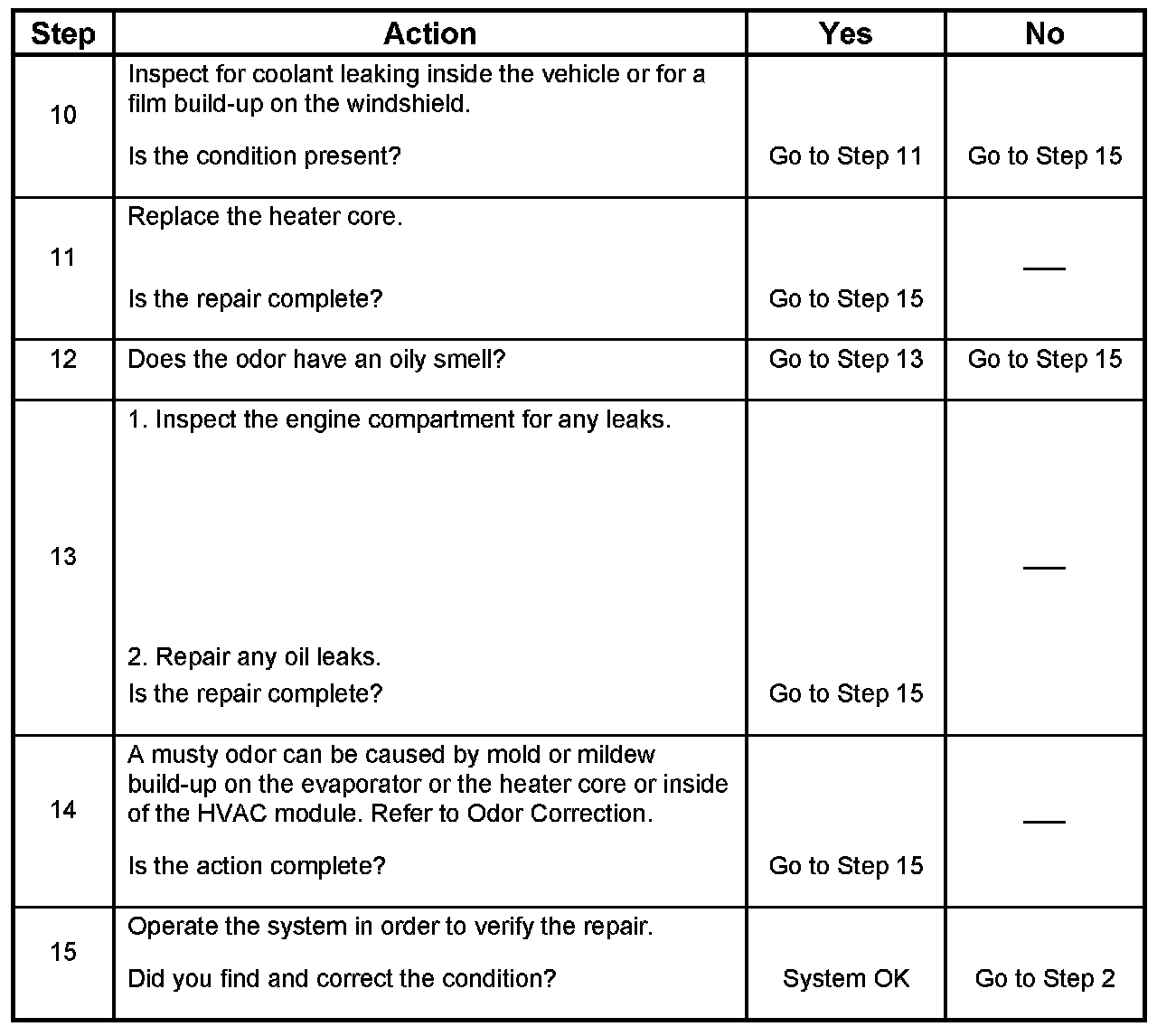

Step 10 - 15:
