Diesel Data: Automotive Repair
Home >> Isuzu Truck >> 2005 >> Ascender 4WD V8-5.3L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Engine Oil Pressure Gage Inaccurate or Inoperative

Engine Oil Pressure Gage Inaccurate or Inoperative

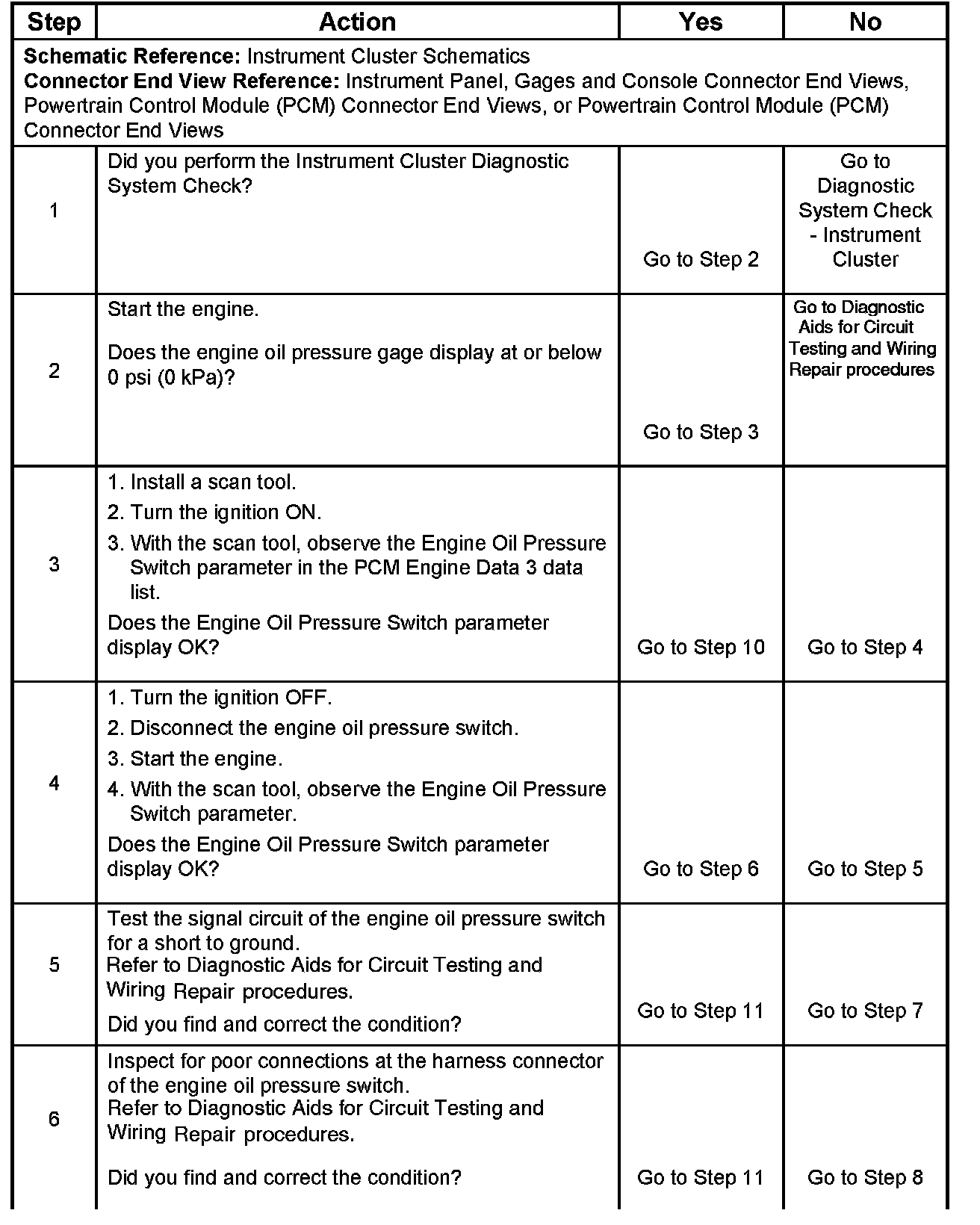

Step 1 - 6:

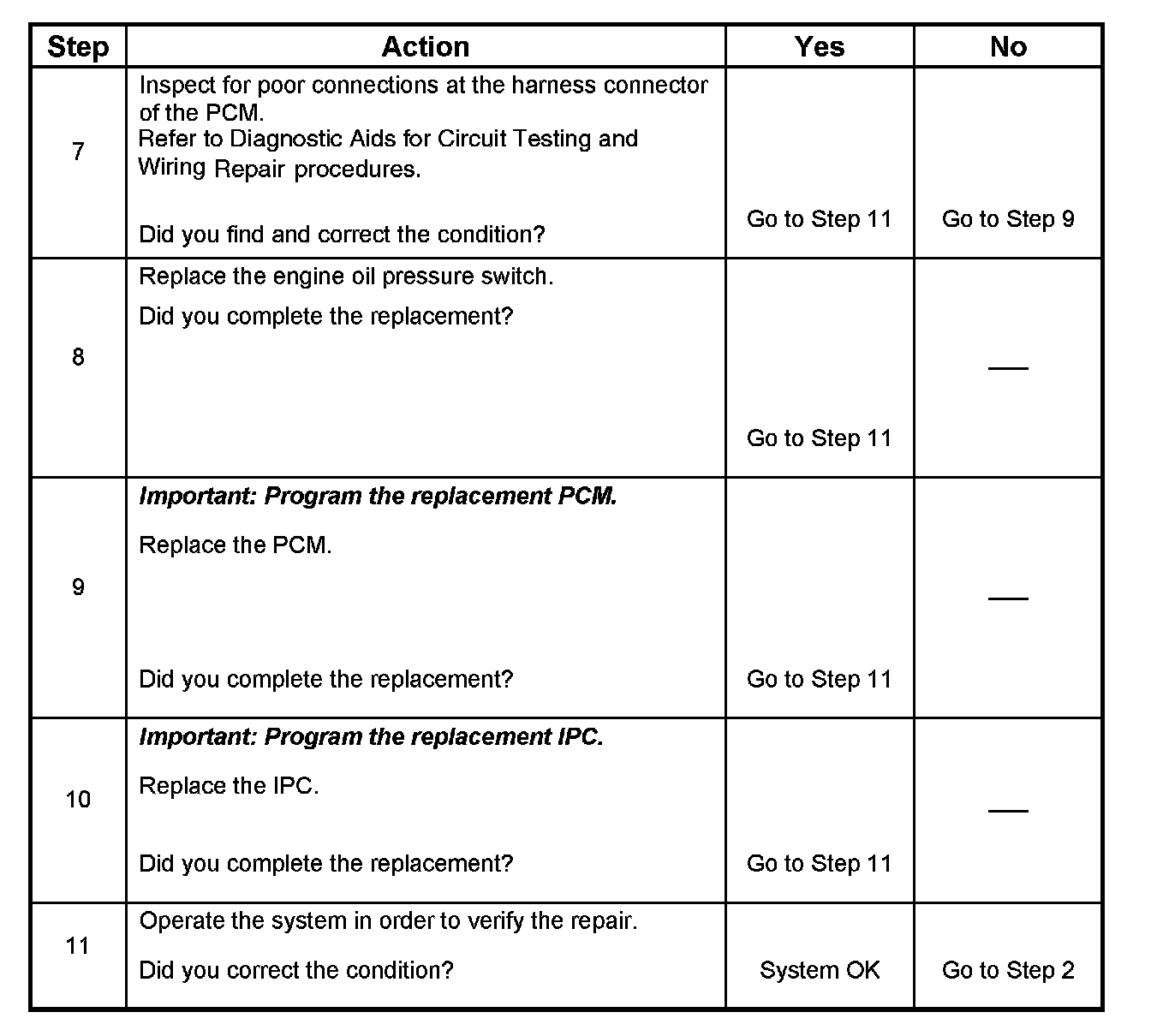

Step 7 - 11:
