Turn Signal Lamps and/or Indicators Inoperative

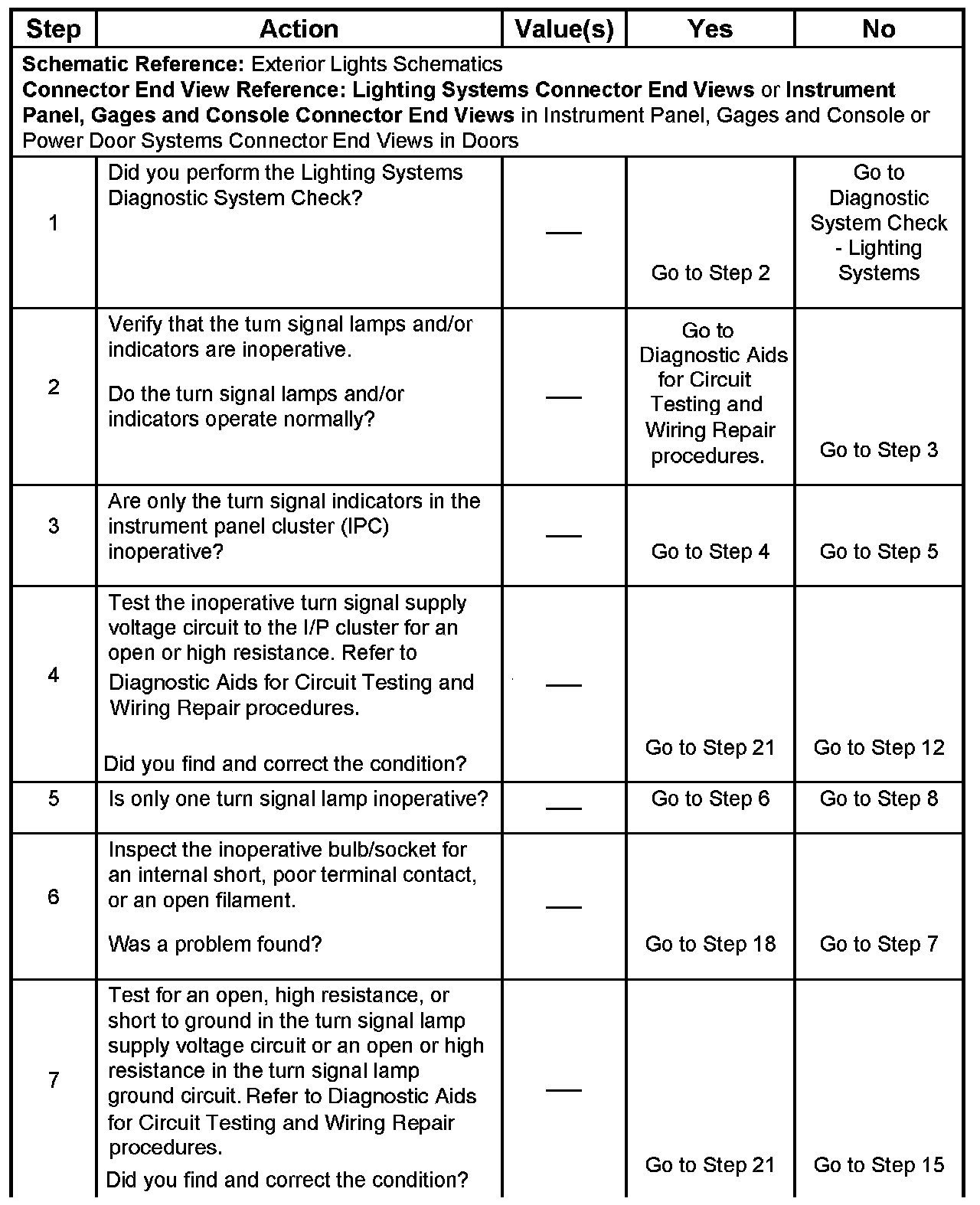

Step 1 - 7:

Step 8 - 11:

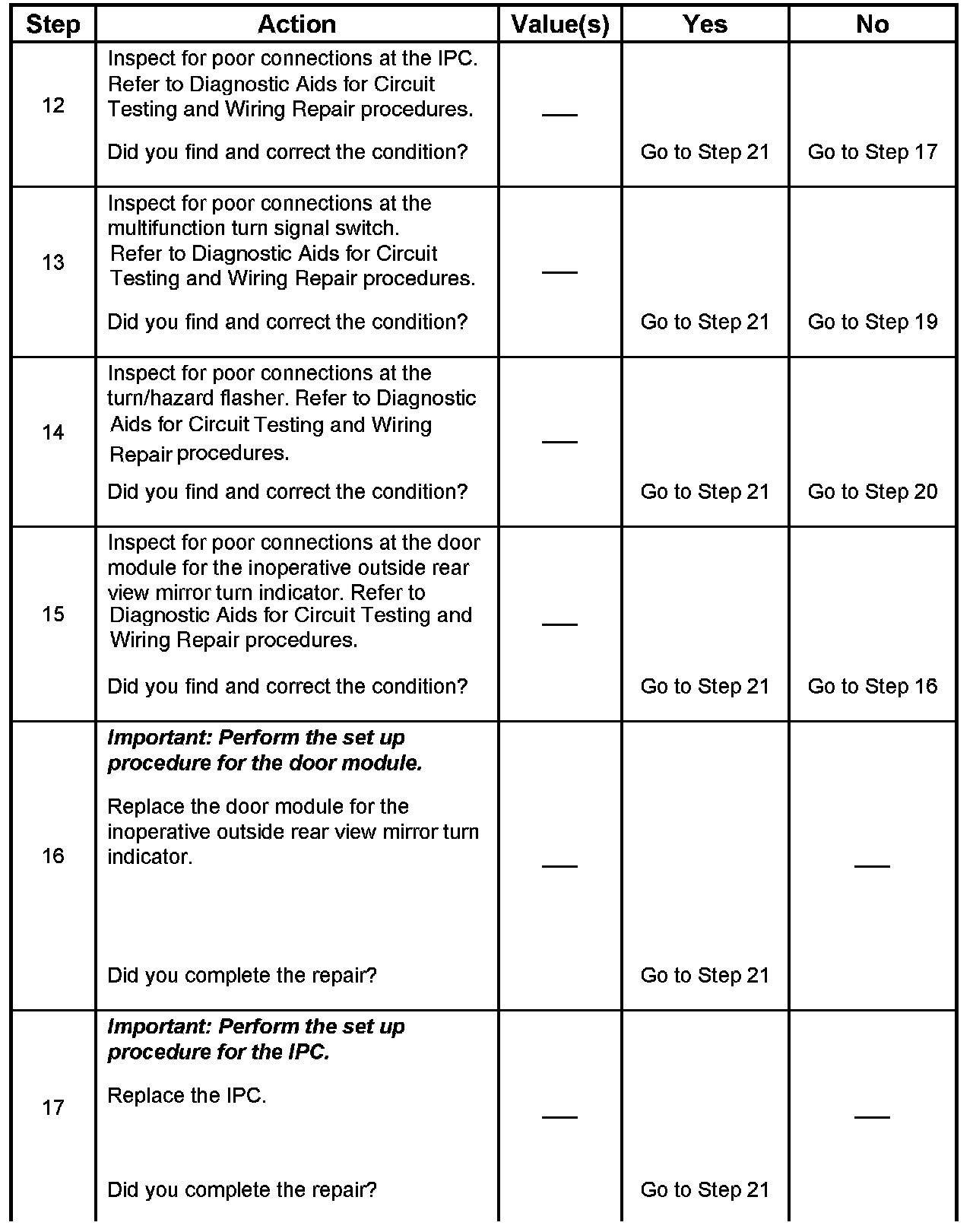

Step 12 - 17:

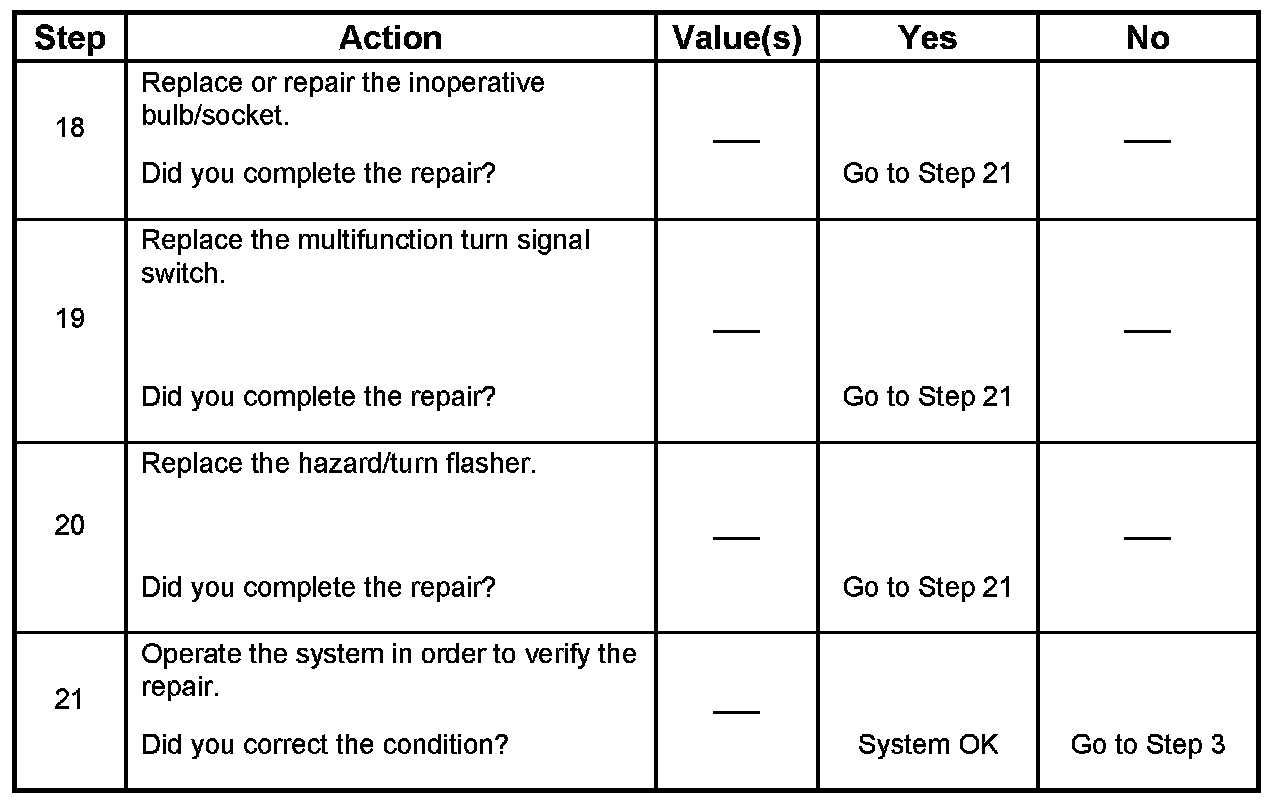

Step 18 - 21:
