Diesel Data
: Automotive Repair
Home
>>
Isuzu Truck
>>
2005
>>
Ascender 4WD V8-5.3L
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Differential Assembly
>>
Rear Drive Axle
Rear Drive Axle

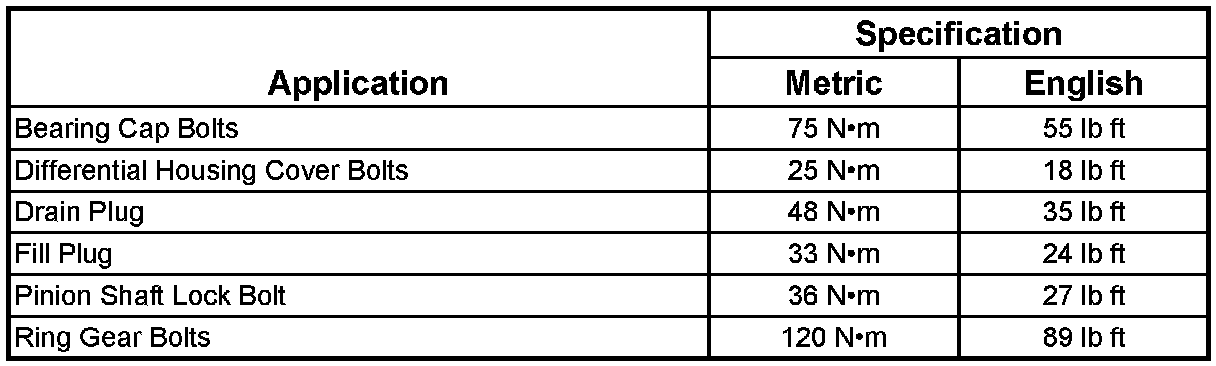

Fastener Tightening Specifications:

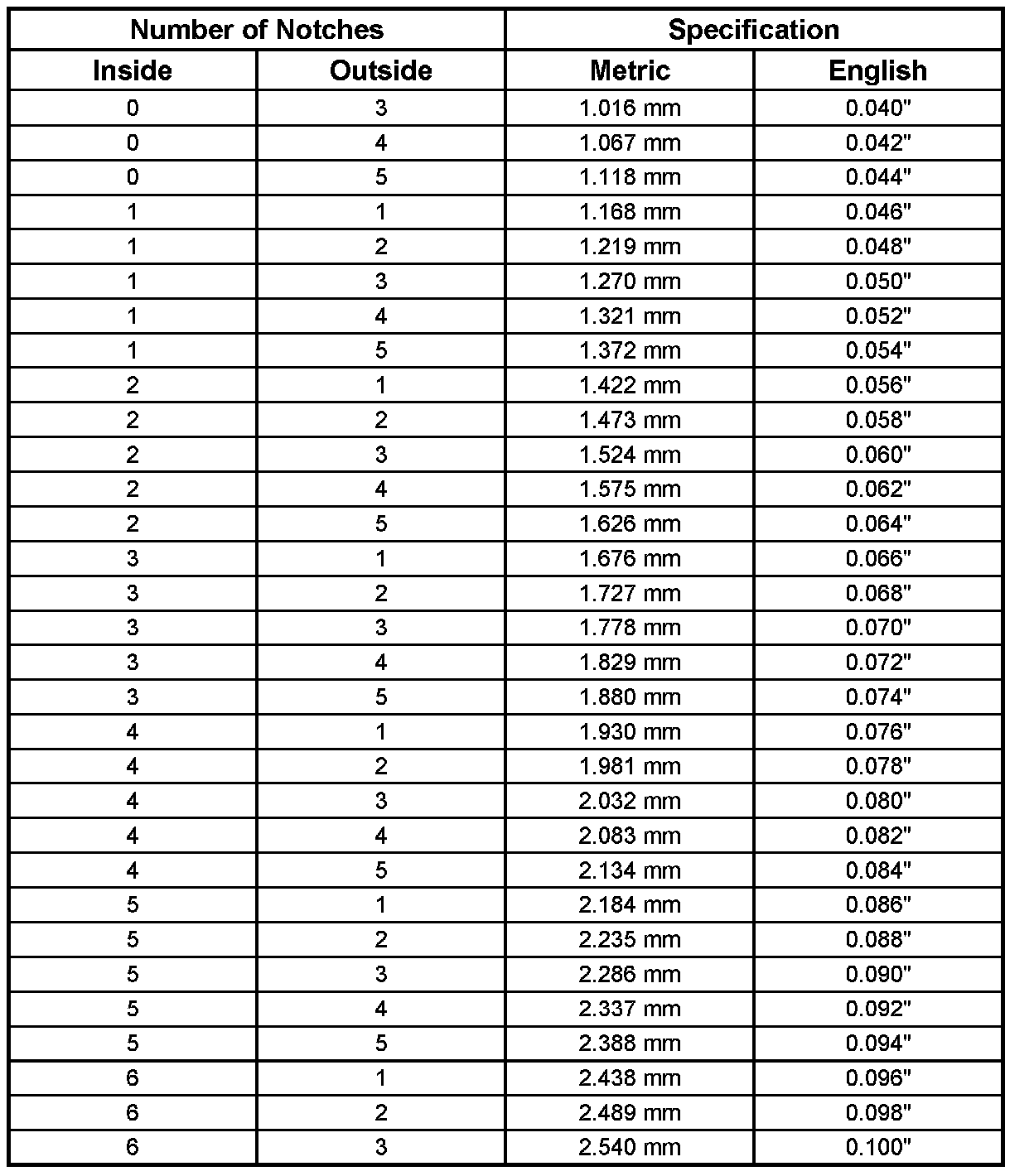

Differential Adjustment Shim Specifications:
