Front

Stabilizer Shaft Link Replacement

Removal Procedure
1. Raise and support the vehicle.

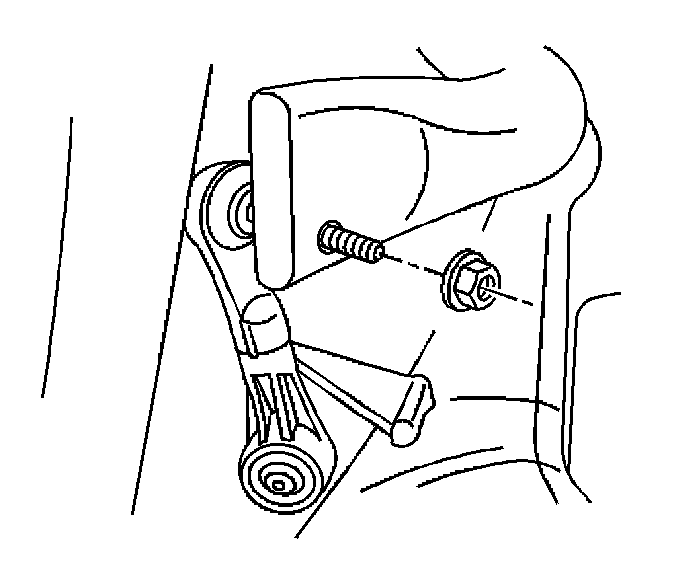

2. Remove the stabilizer shaft link to stabilizer shaft retaining nut.

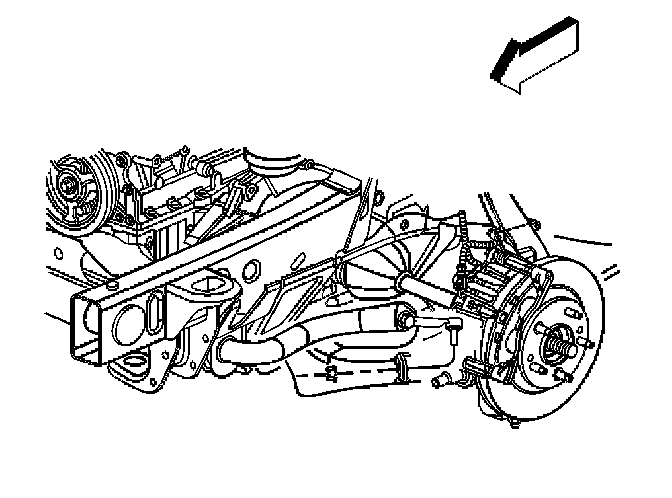

3. Remove the stabilizer shaft link to lower control arm retaining nut.

Notice: Refer to Stabilizer Shaft Damage Notice in Service Precautions.





4. Remove the stabilizer shaft link and washer.

Installation Procedure

Important: There is a washer between the stabilizer shaft link and the lower control arm made of hardened steel and has a felt inner liner. Only replace this washer with an identical washer, standard washers should not be used.

1. Install the stabilizer shaft link and the washer to the lower control arm.





2. Install the stabilizer shaft link to lower control arm retaining nut.
3. Install the stabilizer shaft link to the stabilizer shaft.

Notice: Refer to Fastener Notice in Service Precautions.

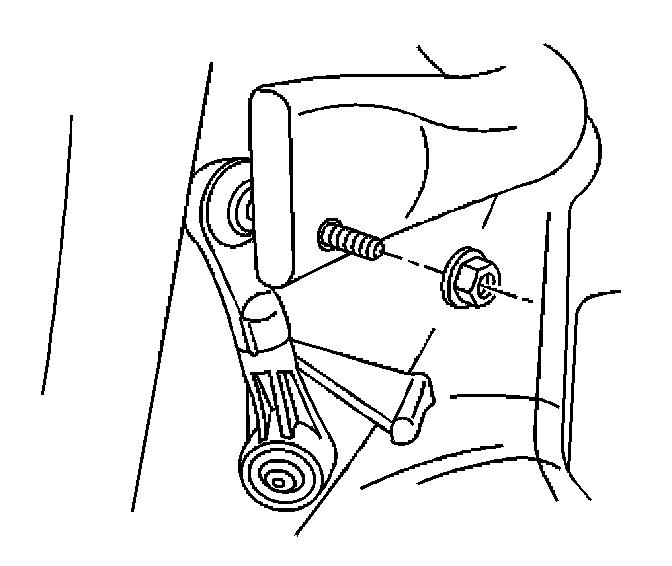

4. Install the stabilizer shaft link to stabilizer shaft retaining nut.
^ Tighten the stabilizer shaft retaining nuts to 100 Nm (74 ft. lbs.).





5. Lower the vehicle.
