Shift Lever Does Not Move With Brake Pedal Depressed
Shift Lever Does Not Move With Brake Pedal Depressed
Shift Lever Does Not Move with Brake Pedal Depressed

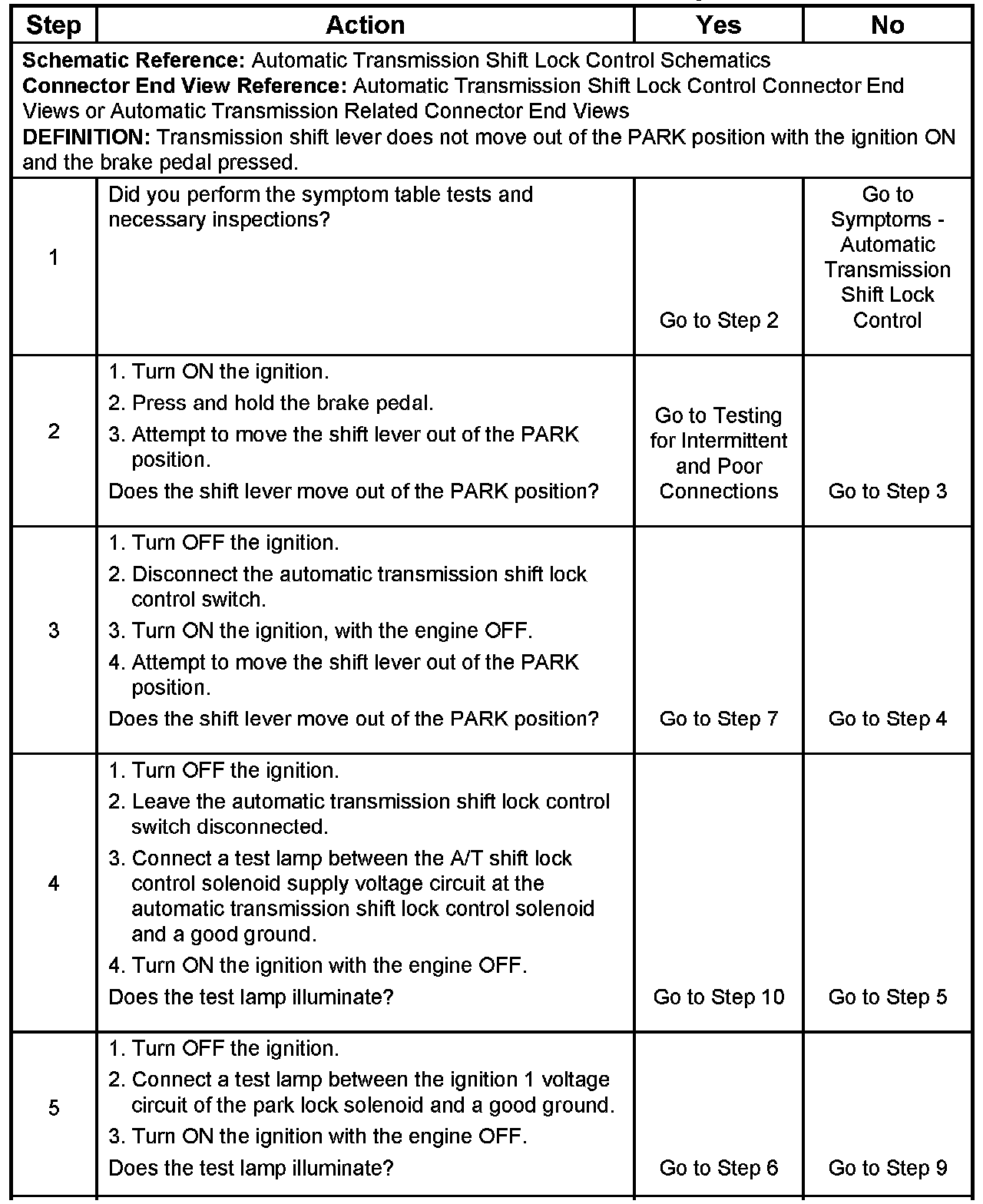

Test 1 Of 3:

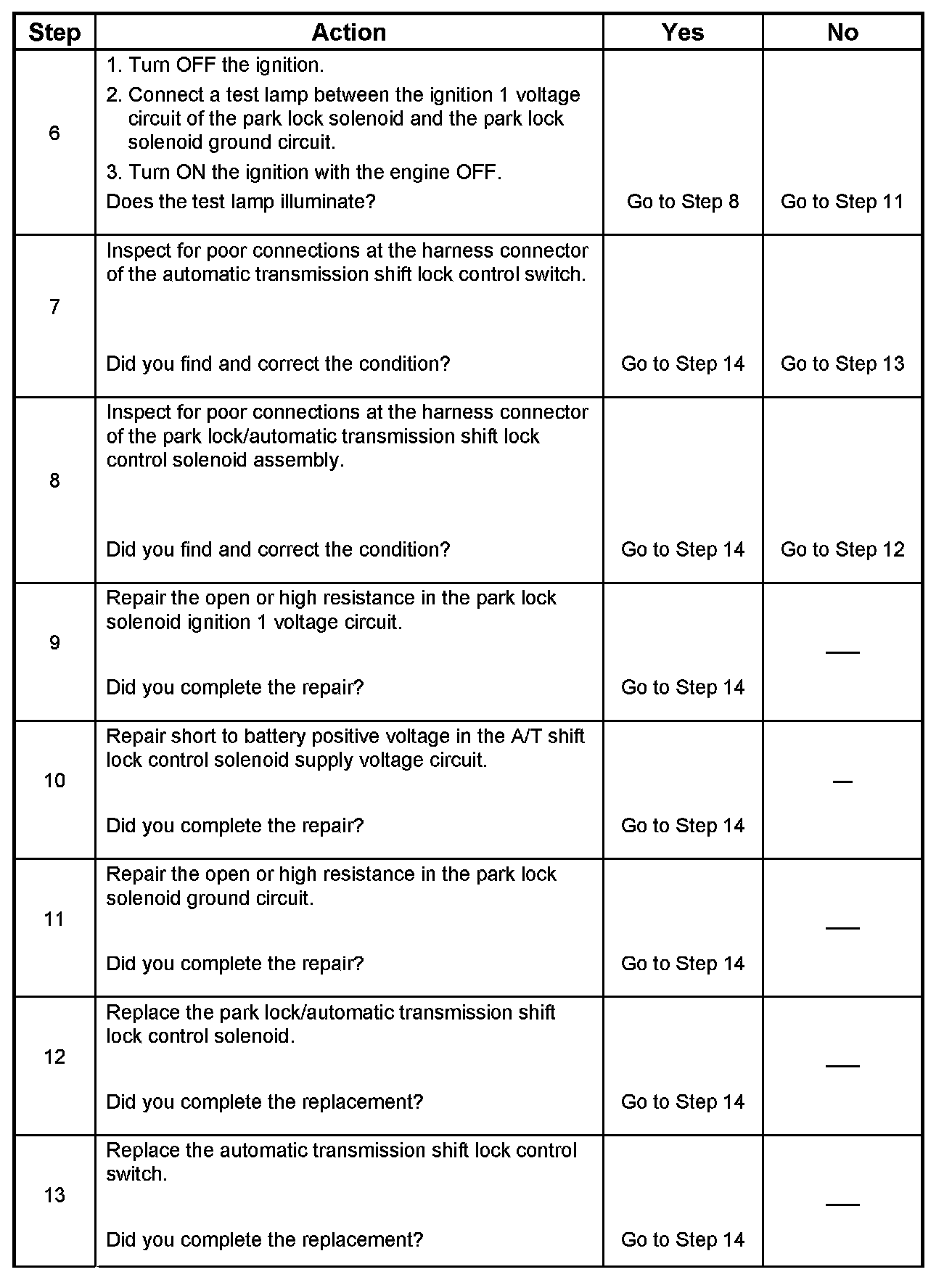

Test 2 Of 3:

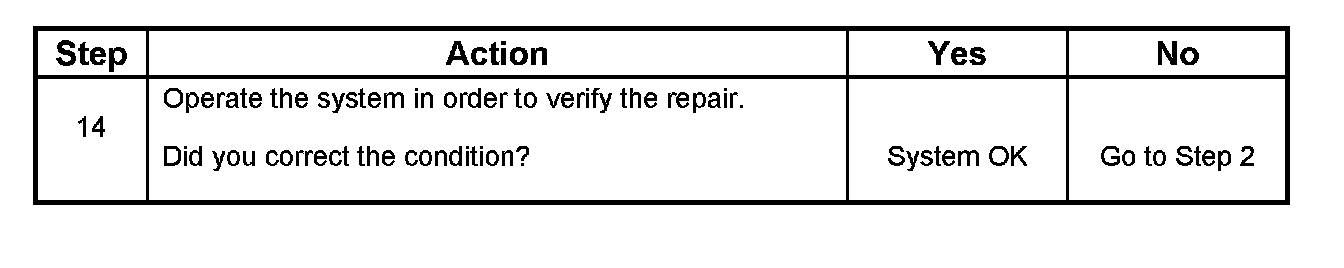

Test 3 Of 3:
