Wiper Inoperative - Rear

Wiper Inoperative - Rear

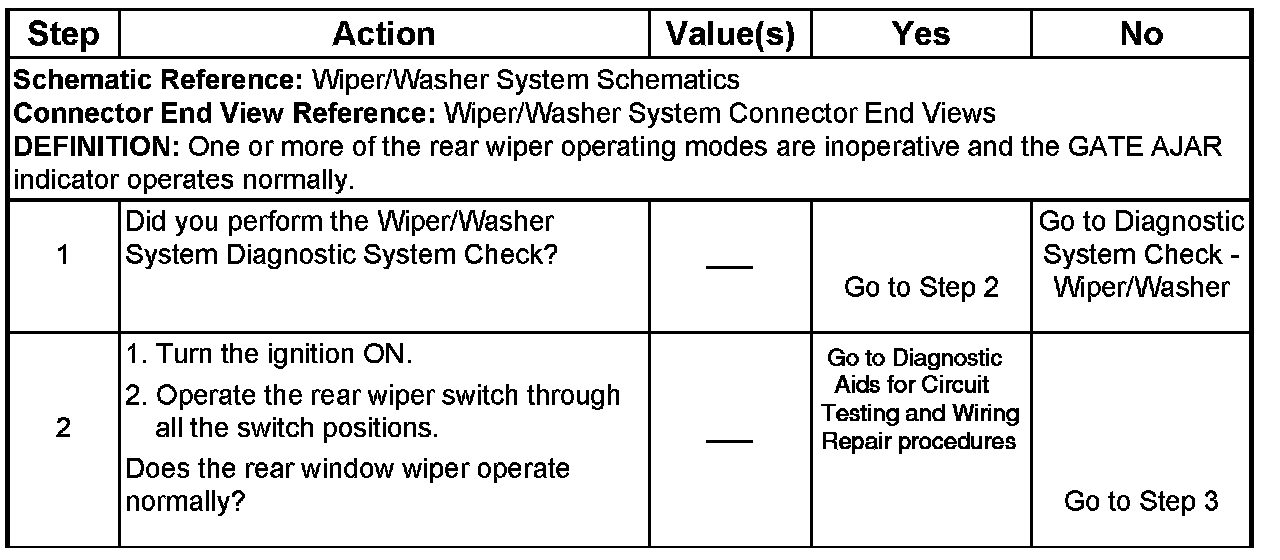

Step 1 - 2:

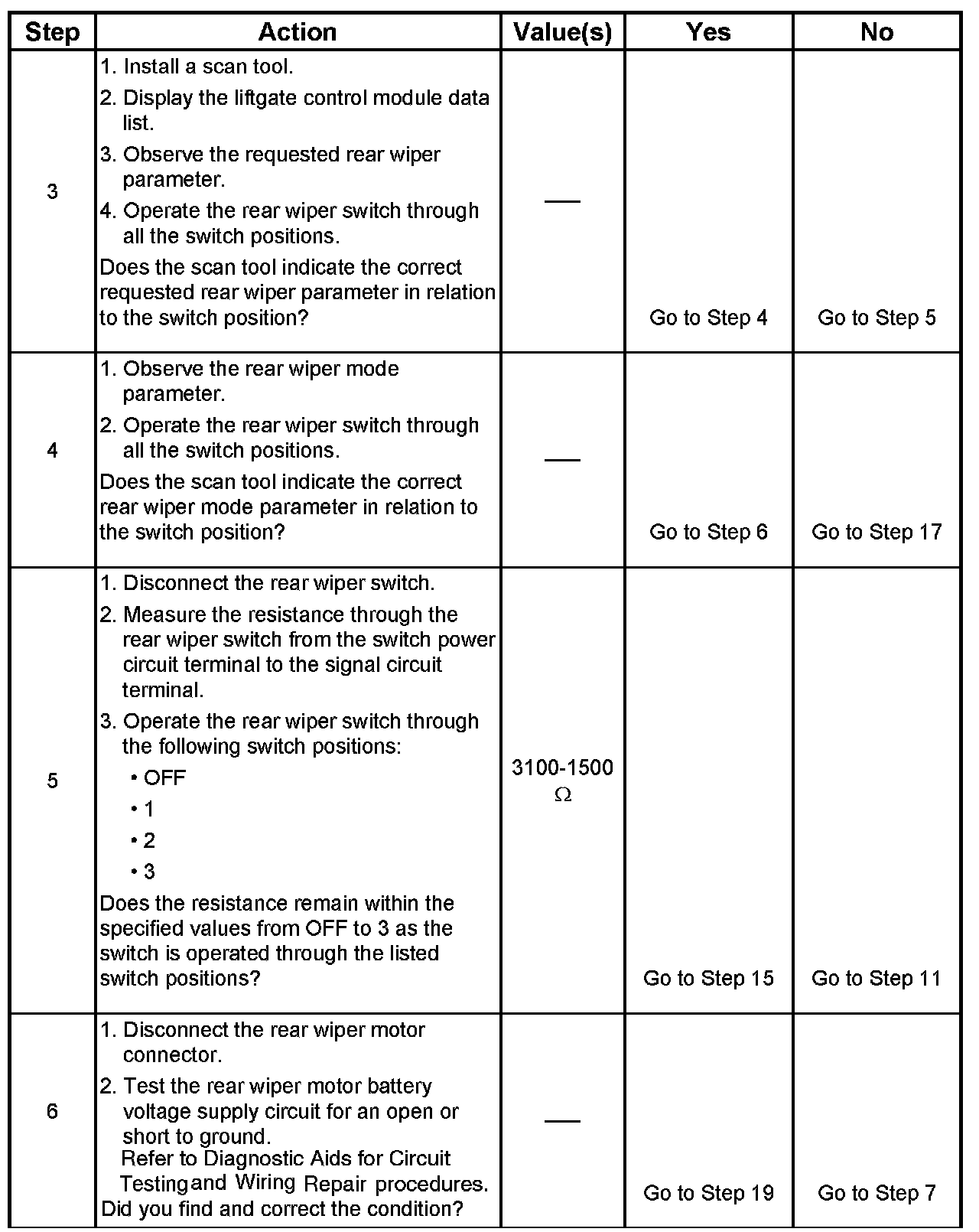

Step 3 - 6:

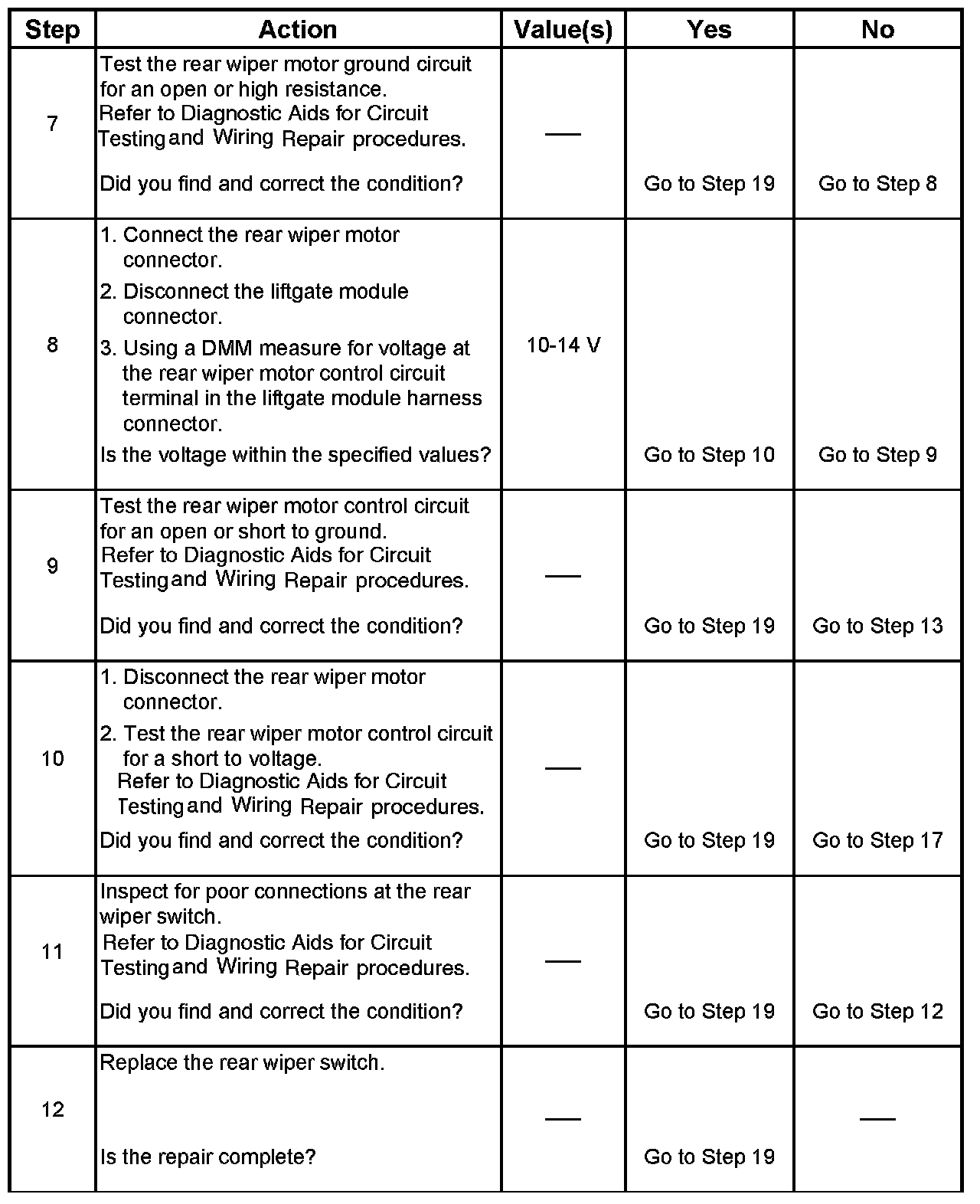

Step 7 - 12:

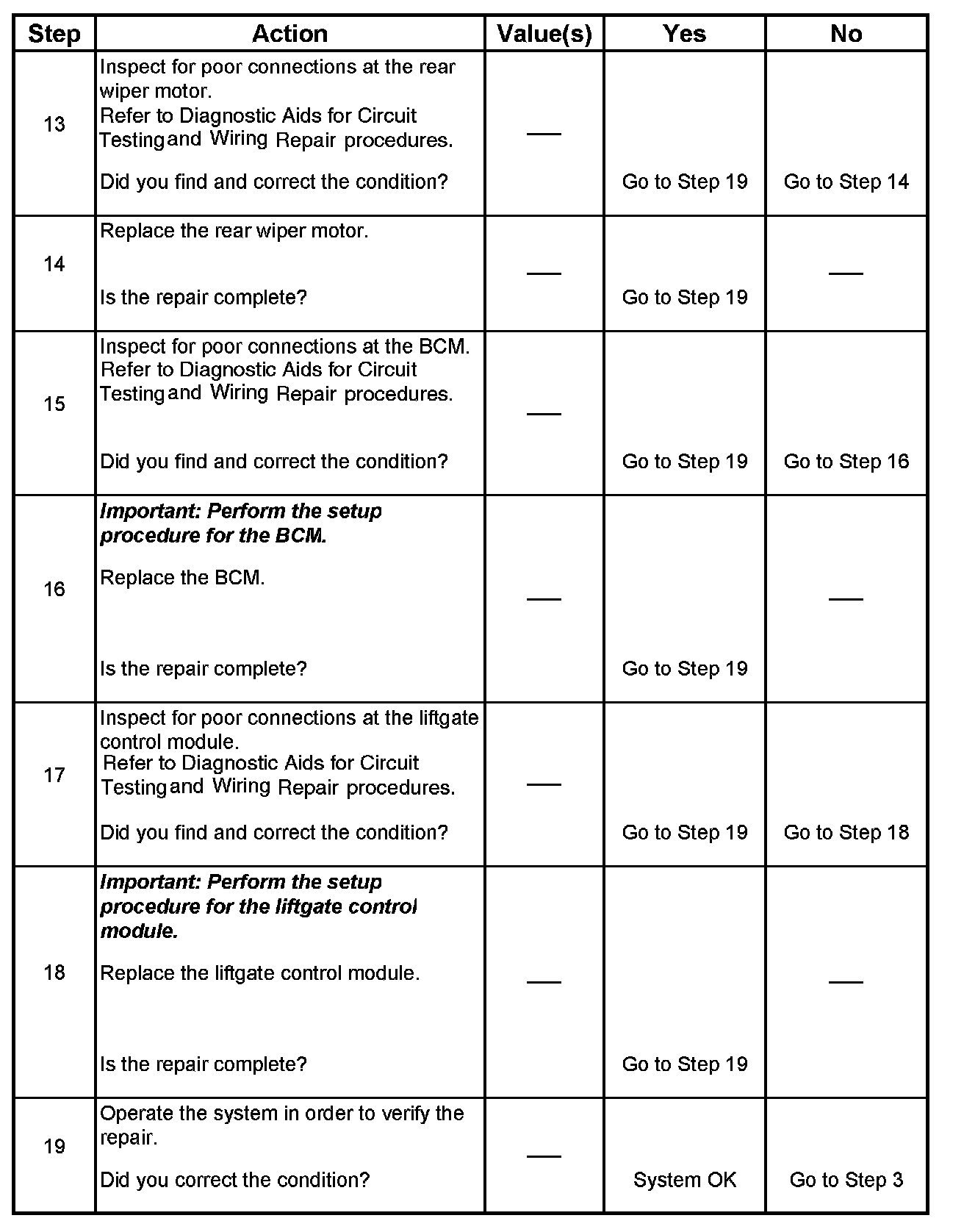

Step 13 - 19:

Test Description
The numbers below refer to the step numbers on the diagnostic table.
3. This step determines if the liftgate control module is receiving the correct switch position message from the body control module.
4. This step determines if the liftgate control module is attempting to operate rear wiper motor in the requested operating mode.
5. This step tests the resistance through the rear wiper switch. The measured resistance will be highest in the OFF position and reduce as the switch is turned from positions 1 through 3.
