Control Module, A/T

Harness Connections

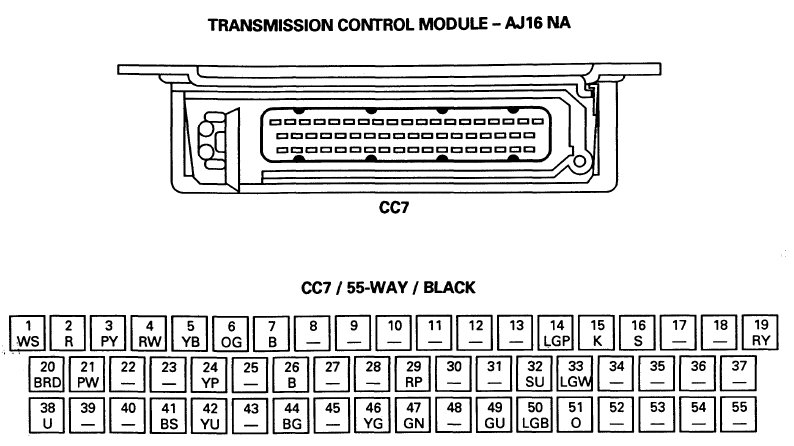

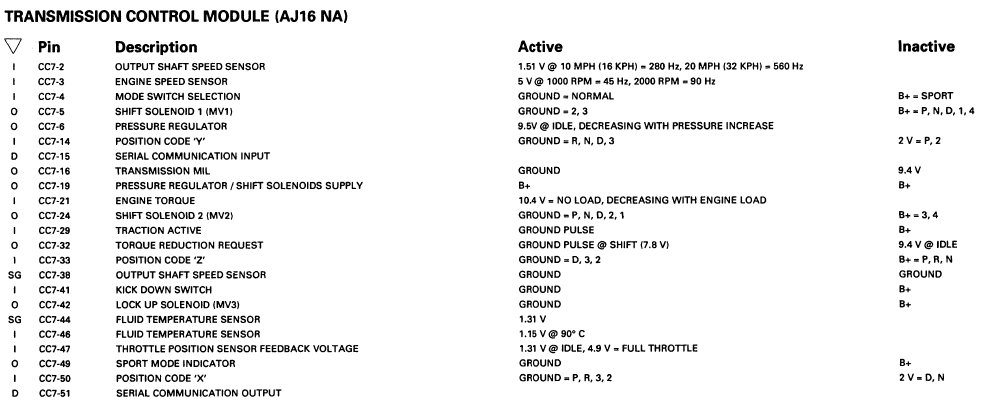

Transmission Control Module Connections - Pin Locations





Rotary Switch Harness





Main Harness Connectors - 12 way





Main Harness Connectors - 8 way
