Electronic Climate Control Diagnostics

Diagnostic Trouble Codes

NOTE: Displayed error codes are NOT compatible with Jaguar Diagnostic Equipment (JDE).

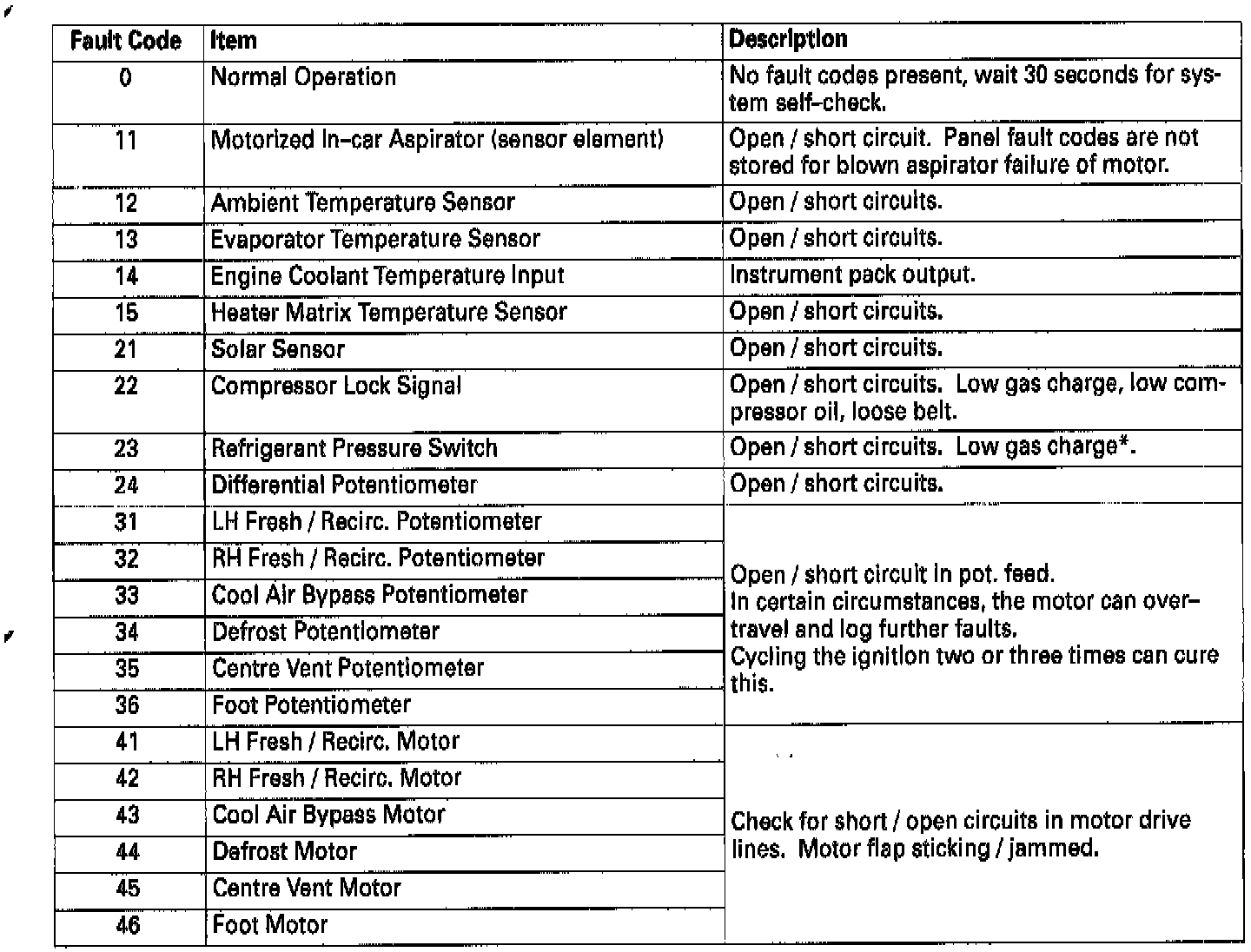

Fault Codes:

NOTE: In ambient temperatures below 0 °C, the system may log fault code 23 because low ambient can cause a temporary low gas pressure. In ambient temperatures above 35 °C, the system may log fault code 23 as temporary high pressure can exist within the system. *

Associated Faults:

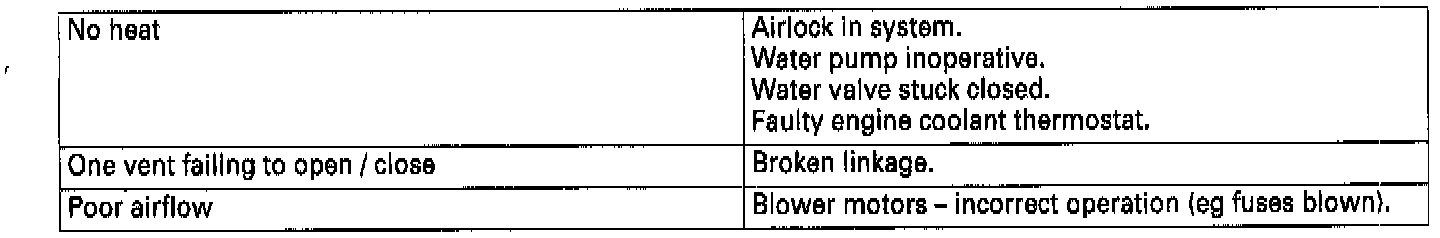

Other symptoms that may exist without storing fault codes:
