System Self-Test

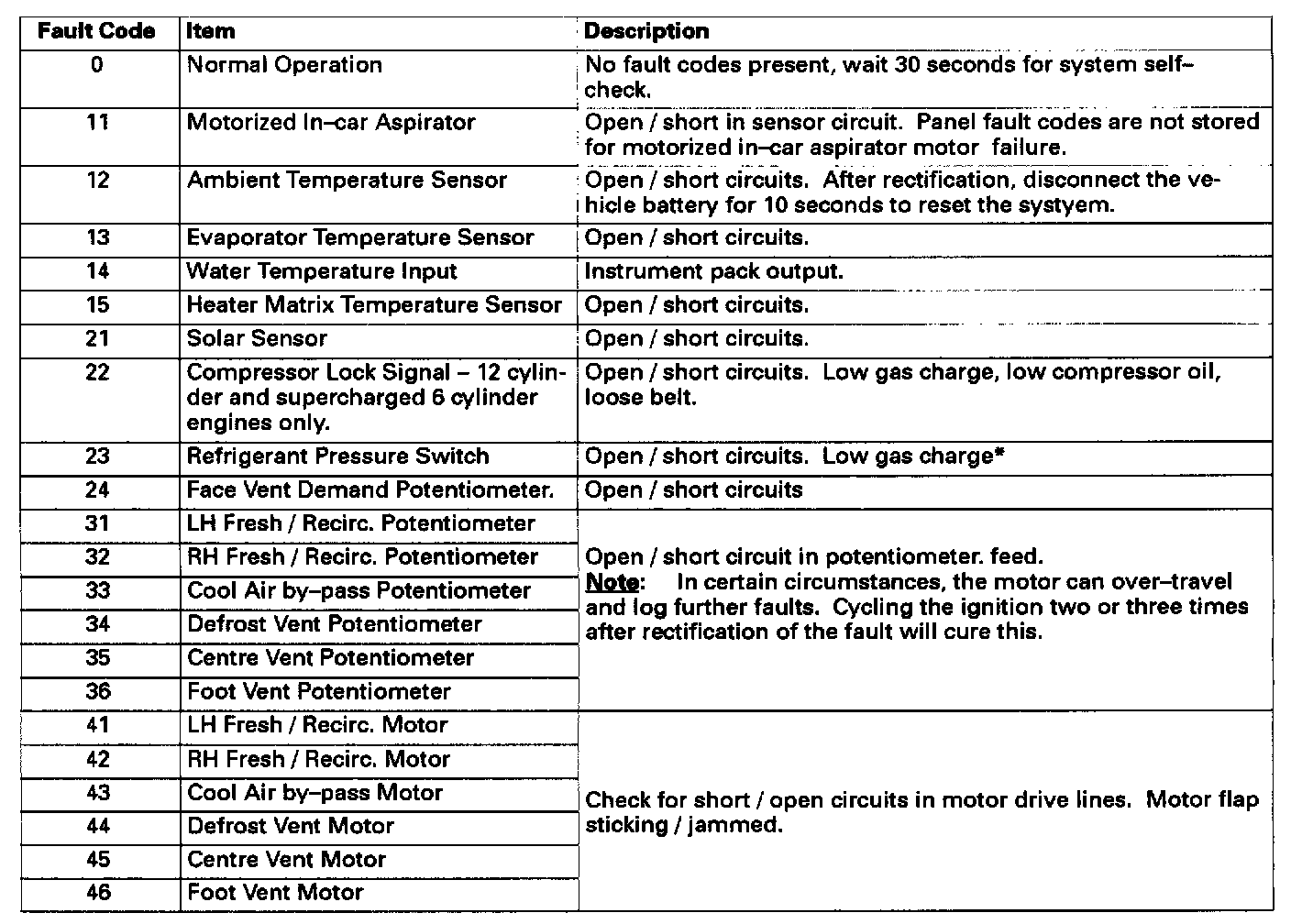

Control Panel Fault Code Key





NOTE: In ambient temperatures below 0 °C, the system may log fault code 23 because the low ambient causes a temporary low gas pressure. Where the ambient temperature rises above 40 °C, and if the engine is close to overheating, feed to the compressor clutch may be cut and code 23 registered.*
