Map Pocket: Service and Repair

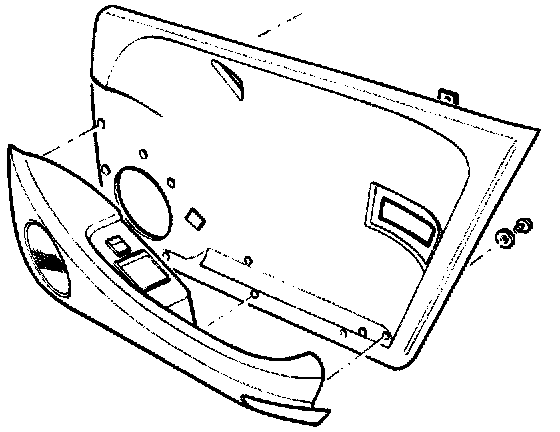

Fig 1.:

- Remove the door armrest.
- Remove the lower trim pad.
- Undo and remove the door pocket to trim pad securing screws (Fig.1). Remove the door pocket.
- Remove window lift switch assembly.
- Remove the speaker grille.

Refit in the reverse order of the removal procedure.
