Wheel Speed Sensor: Locations

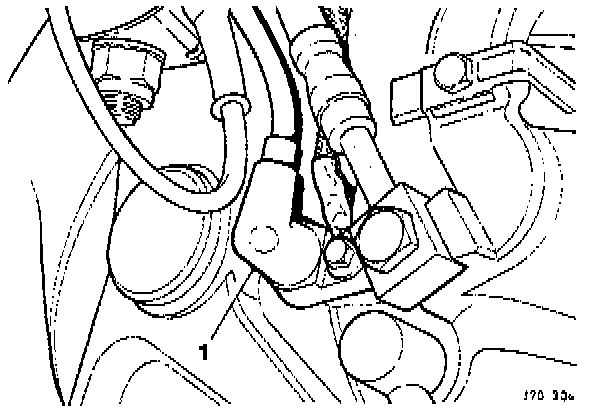

FRONT
The front sensors are mounted on the vertical link.





REAR
The rear wheel sensors are mounted on the hub carrier.
