Automatic Transmission/Transaxle
>>
Overhaul 4L80-E
>>

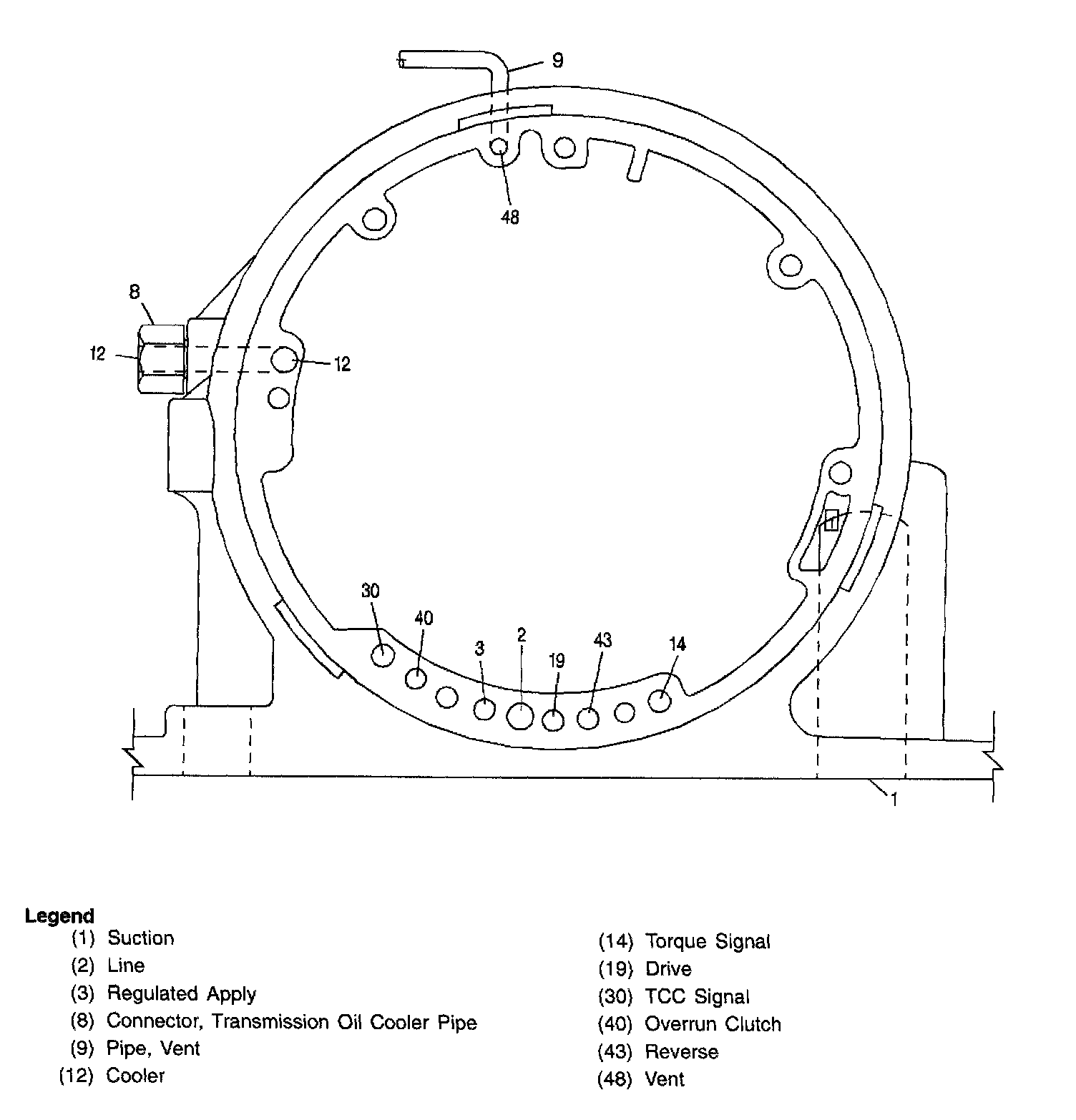

Case Fluid Passages (Pump Cover Side)
Case Fluid Passages (Pump Cover Side)
