Automatic Transmission/Transaxle
>>
Overhaul 4L80-E
>>

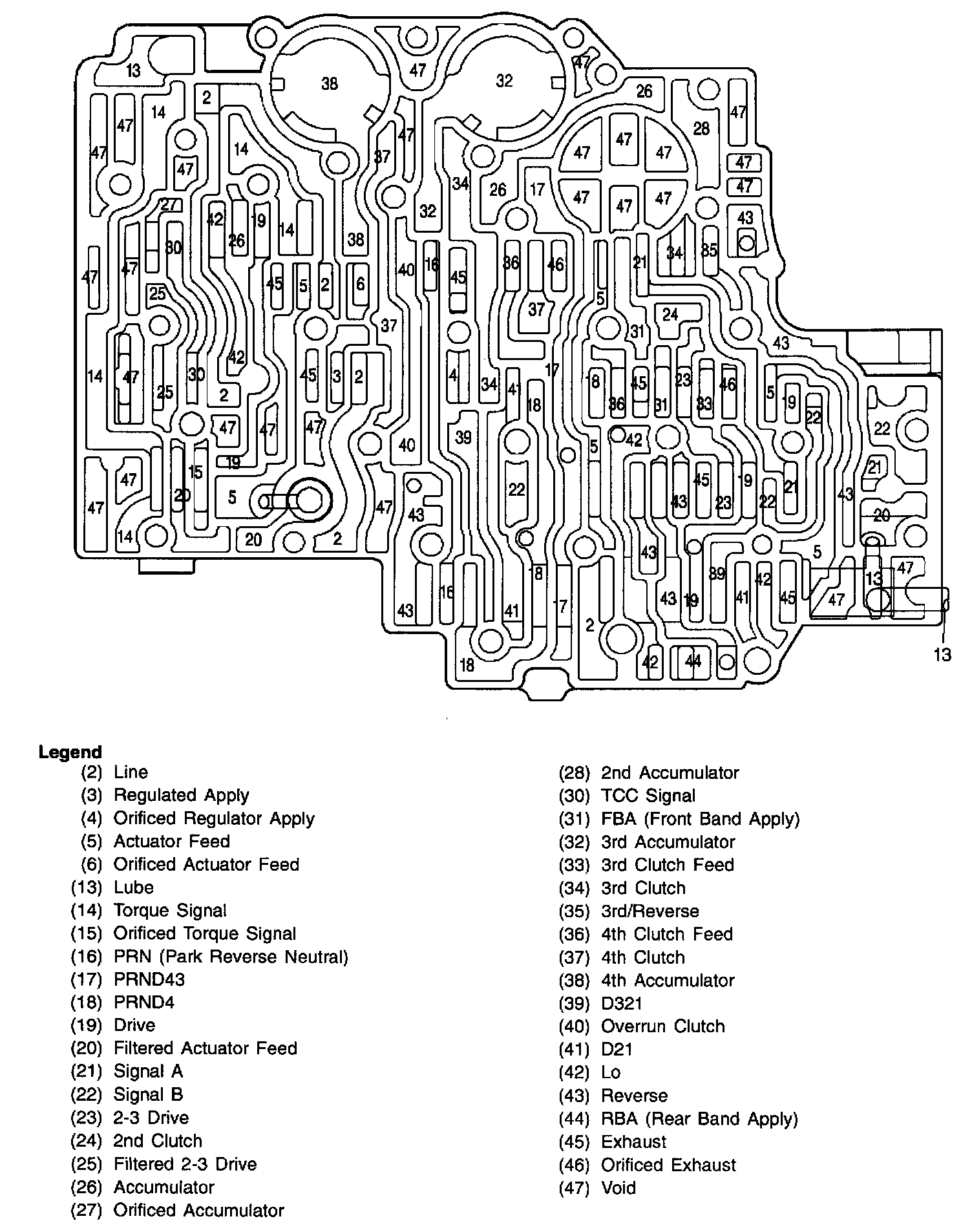

Control Valve Body Fluid Passages (Case Side)
Control Valve Body Fluid Passages (Case Side)
