Automatic Transmission/Transaxle
>>
Overhaul 4L80-E
>>

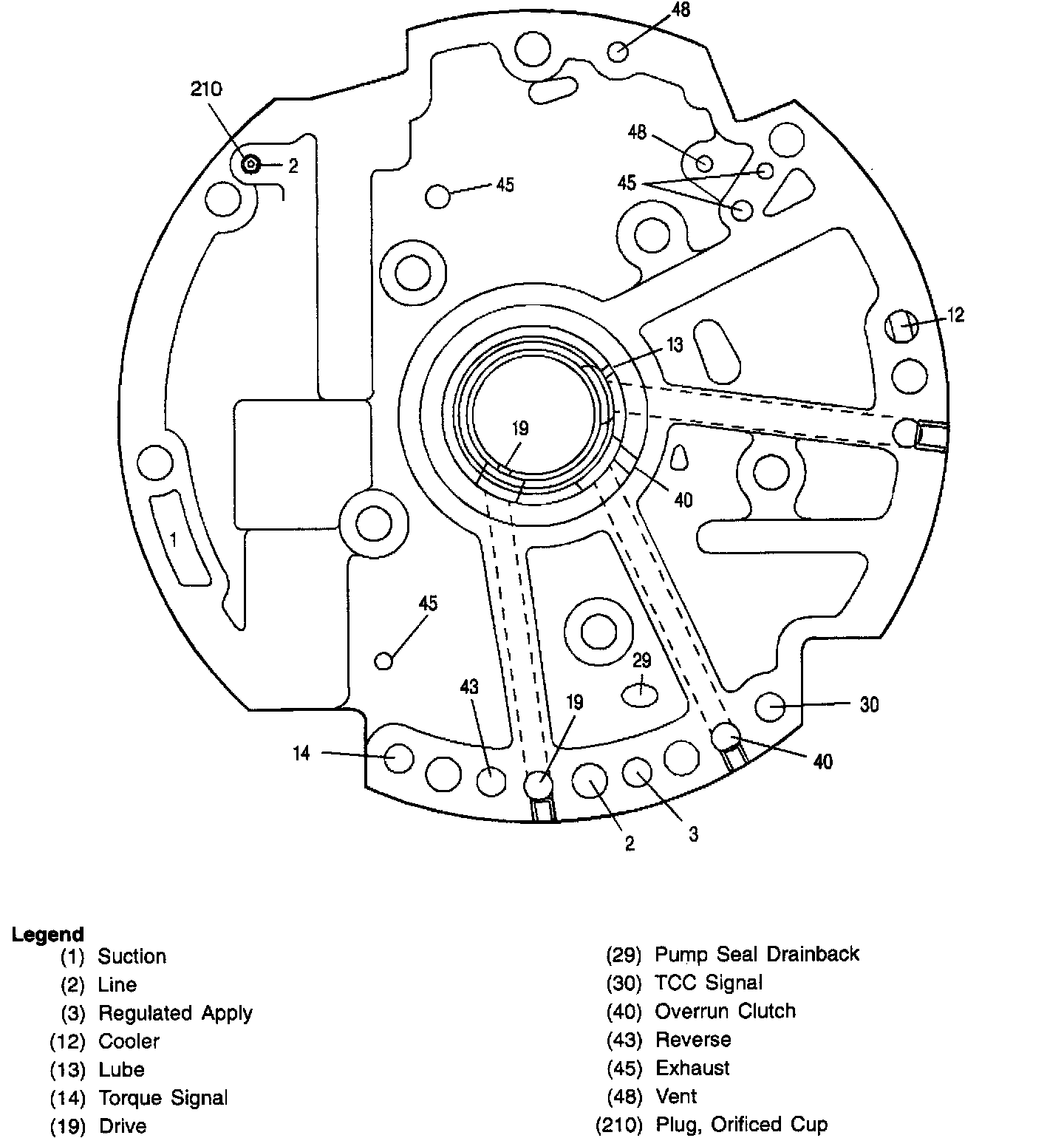

Pump Cover Fluid Passages (Case Side)
Pump Cover Fluid Passages (Case Side)
