Seat Belt Buckle: Service and Repair

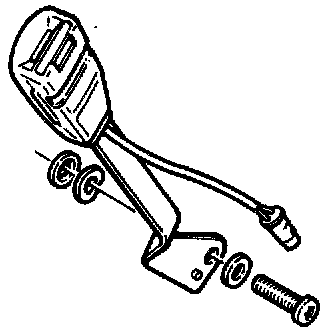

Fig. 1:

- Disconnect vehicle battery ground lead.
- Remove the front seat cushion.
- Disconnect cable connector and remove cable into seat frame.
- Remove securing bolt, buckle unit (Fig.1) and wavy washer.

Refit in the reverse order of the removal procedure.
