Front Seat Belt

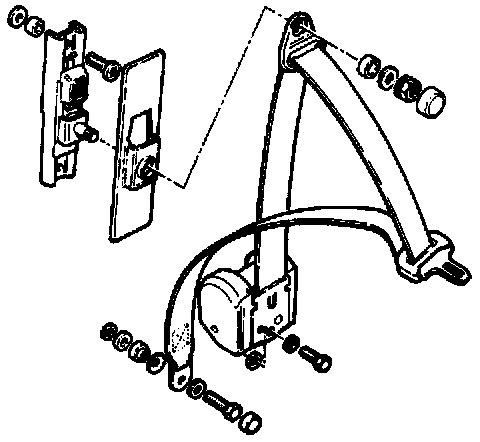

Fig. 1:

- Position the front seat for access.
- Disconnect vehicle battery ground lead.
- Release 'B' post upper trim and belt aperture cover.
- Remove cover from seat belt upper fixing.
- Remove seat belt upper fixing and release seat belt anchor from height adjuster; remove wavy washer.
- Lower the upper trim pad with seat belt onto the seat.
- Remove 'B' post lower trim.
- Remove seat belt lower fixing, disconnect anchor plate and remove wavy washer.
- Release upper trim pad from seat belt. Remove upper guide fixings at 'B' post.
- Remove seat belt reel fixings and remove reel and belt assembly (Fig.1).

Refit in the reverse order of the removal procedure.
