System Specifications

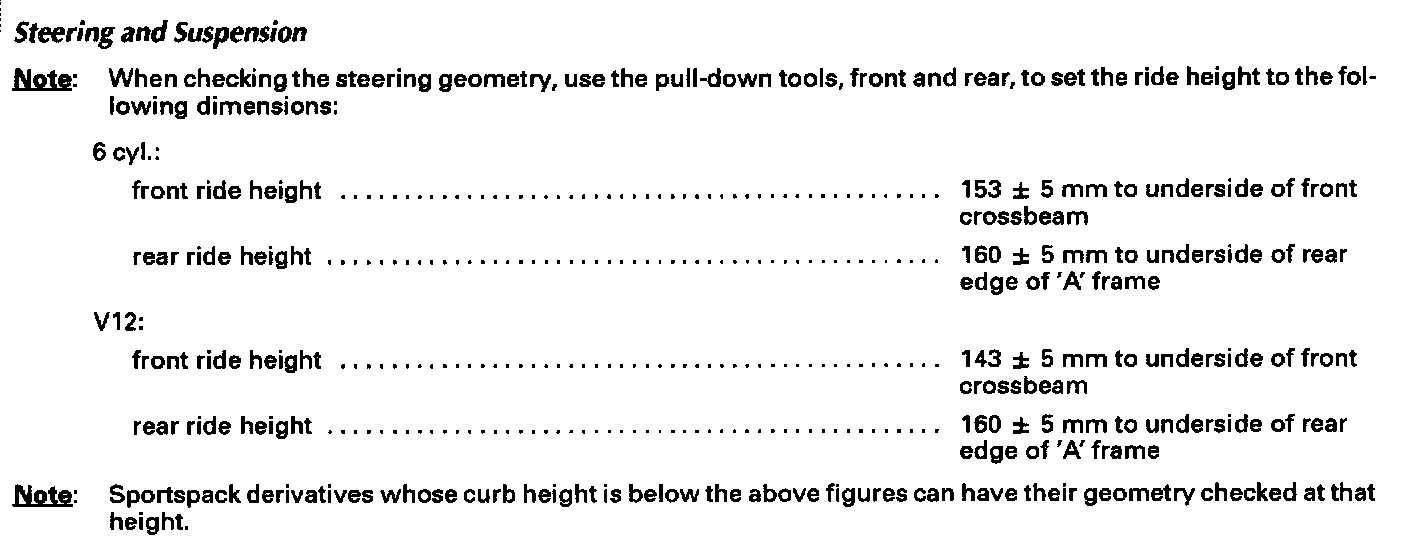

Steering and Suspension:

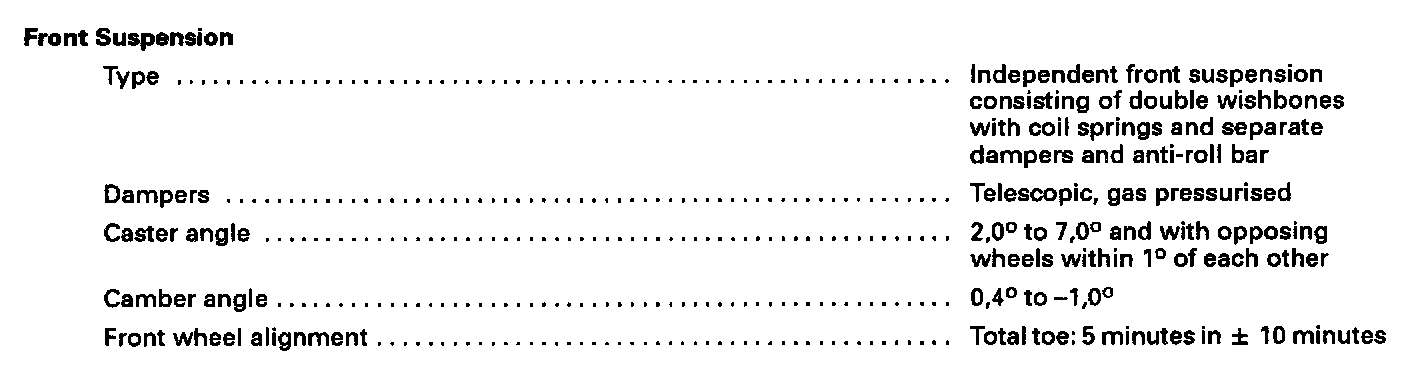

Front Suspension:

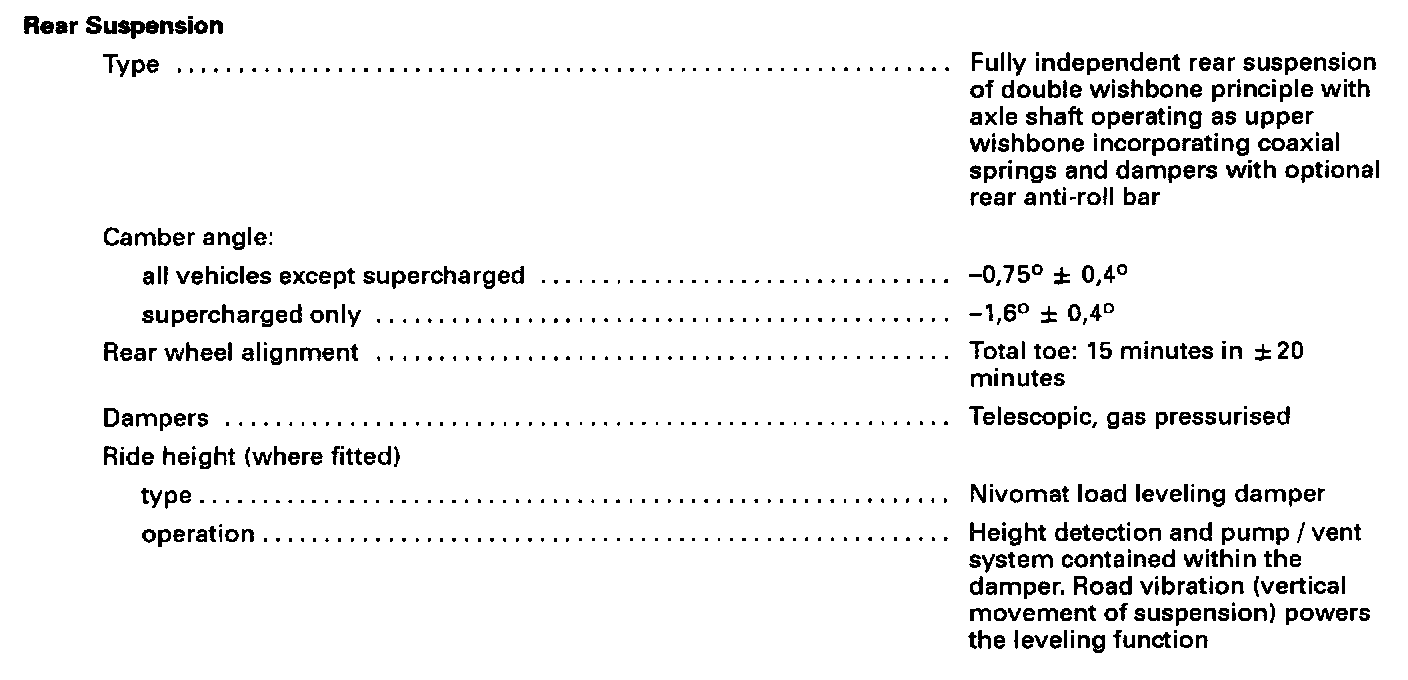

Rear Suspension:

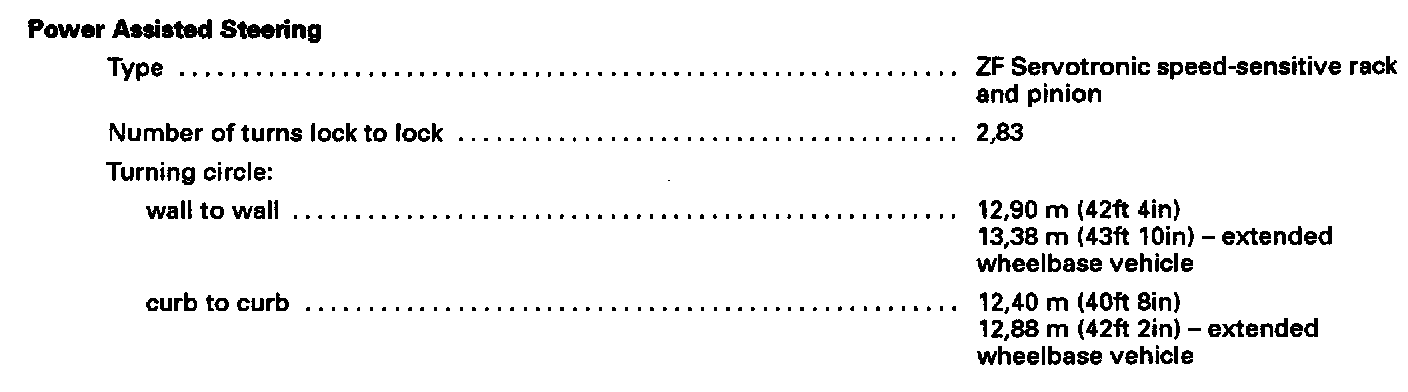

Power Assisted Steering:
