Fourth Clutch Piston Travel Check

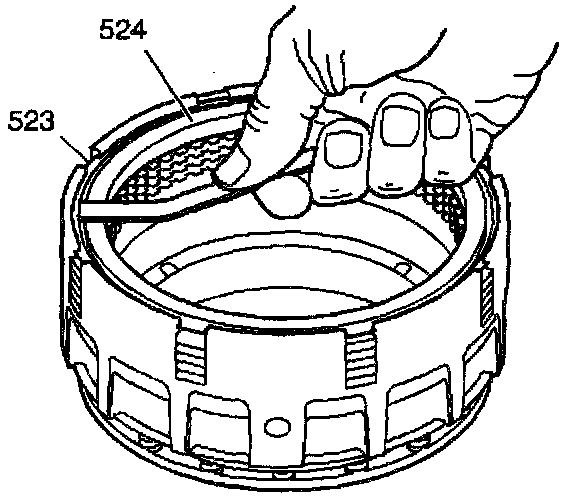

Using a feeler gage, measure between the fourth clutch backing plate (524) and the fourth clutch backing plate retainer ring (523). The measurement should be 1.016 - 2.540 mm (0.040 - 0.100 inch).
Using a feeler gage, measure between the fourth clutch backing plate (524) and the fourth clutch backing plate retainer ring (523). The measurement should be 1.016 - 2.540 mm (0.040 - 0.100 inch).
