Speed Sensor Assembly Installation

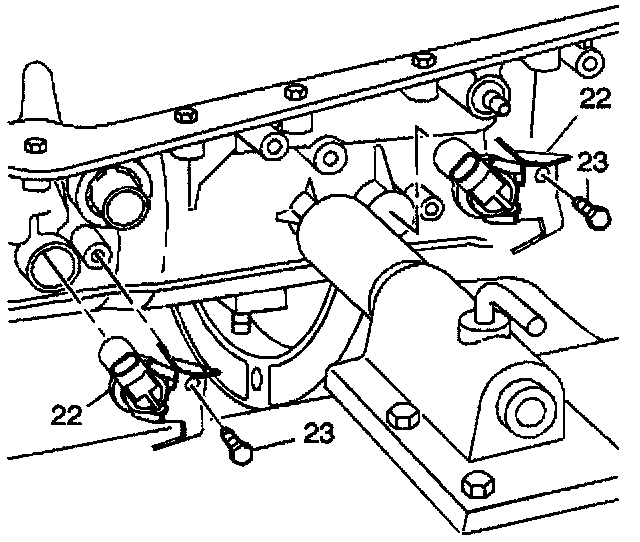

1. Install the input and output speed sensors (22) into the transmission case.
2. Install the input and output speed sensor bolts (23).
^ Tighten the bolts to 11 Nm (97 inch lbs.).
