Transmission Oil Pump Disassemble

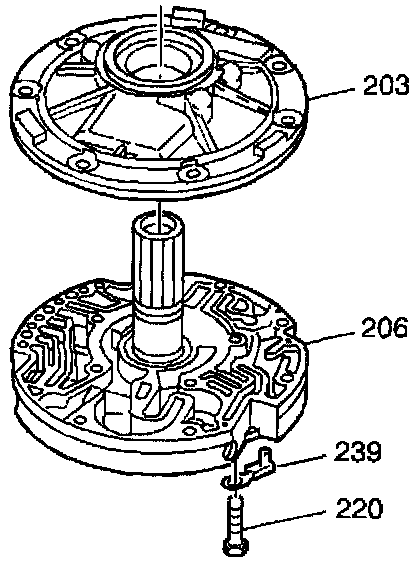

1. Remove the transmission oil pump cover bolts (220).
2. Remove the vent passage splash shield (239).
3. Separate the oil pump body (203) and cover (206).
