Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems
SYSTEM DIAGRAM

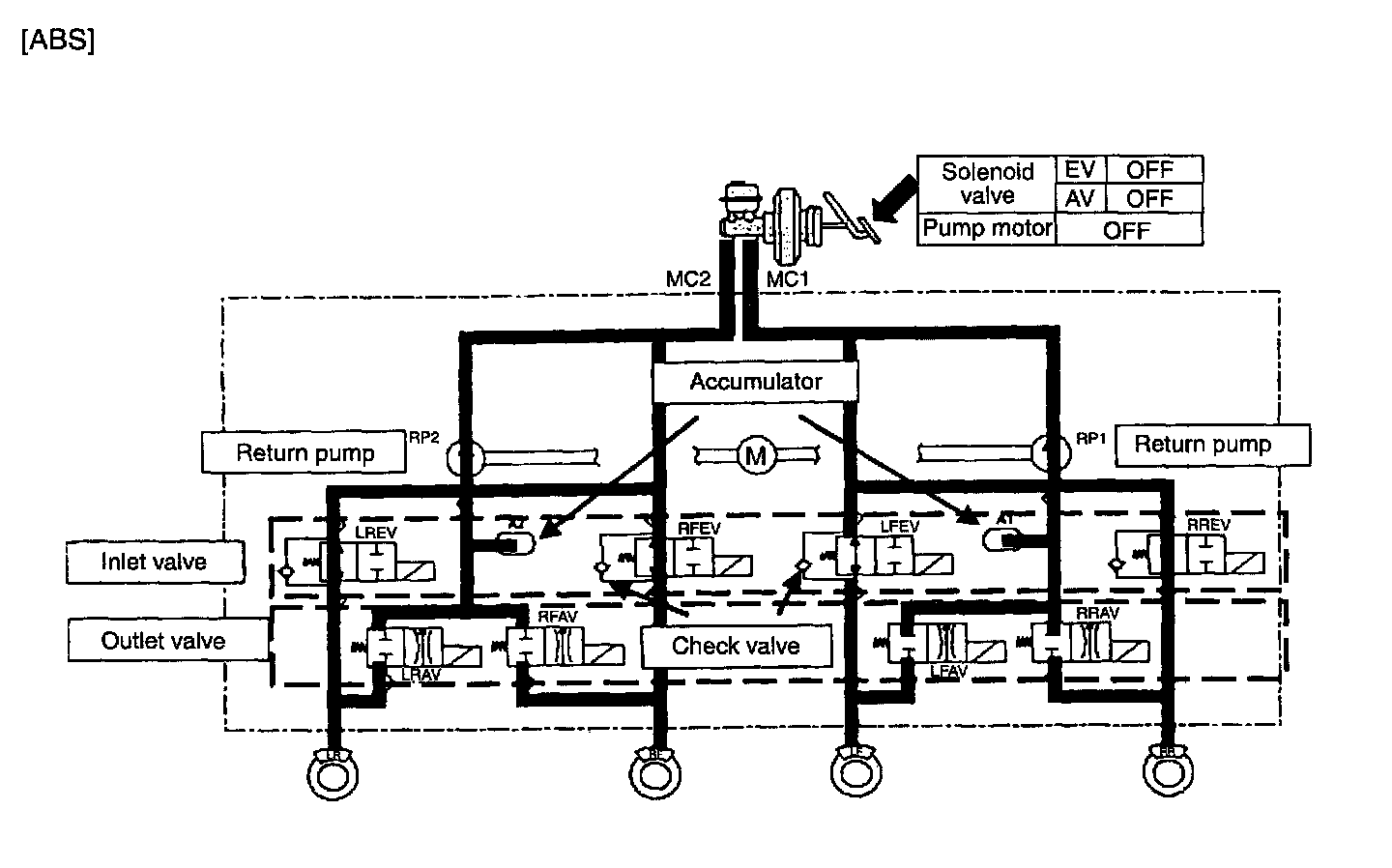

ABS:

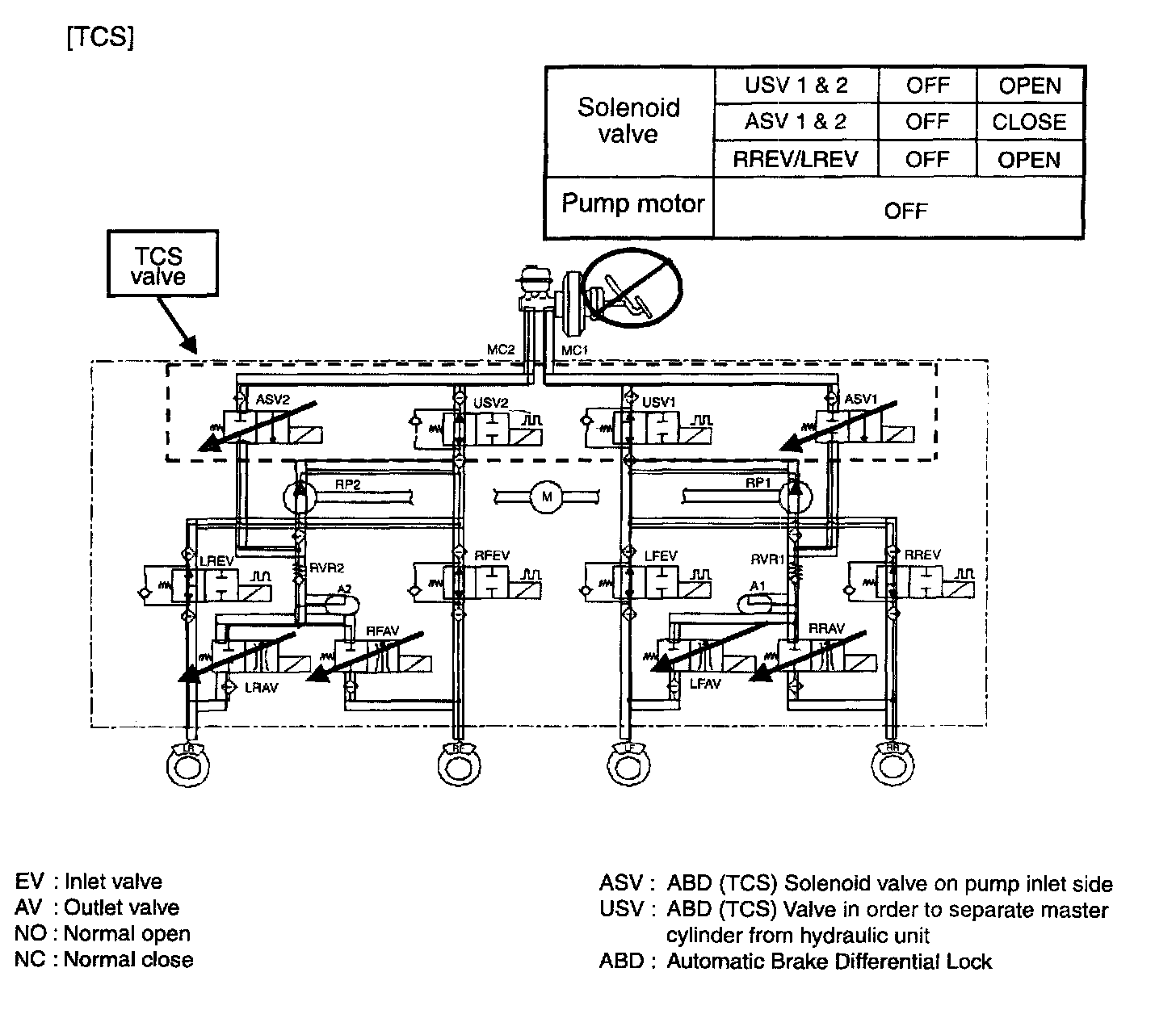

TCS:
