Rear Speaker

REMOVAL

REAR SPEAKER
1. Remove the rear package tray trim.

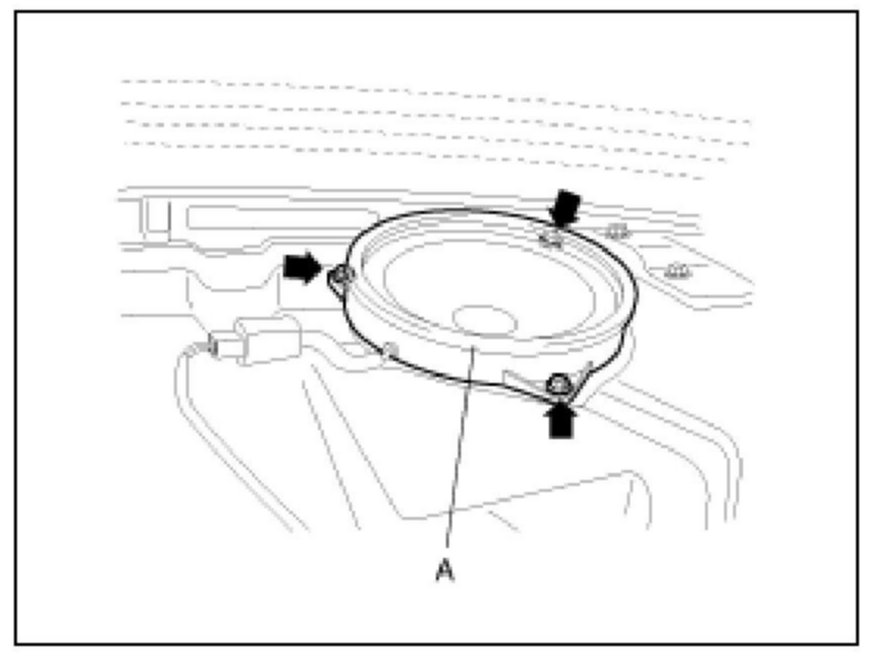

2. Remove the rear speaker(A) after removing 3 screws.
3. Installation is the reverse of removal.
