Hydraulic Control Assembly - Antilock Brakes: Service and Repair

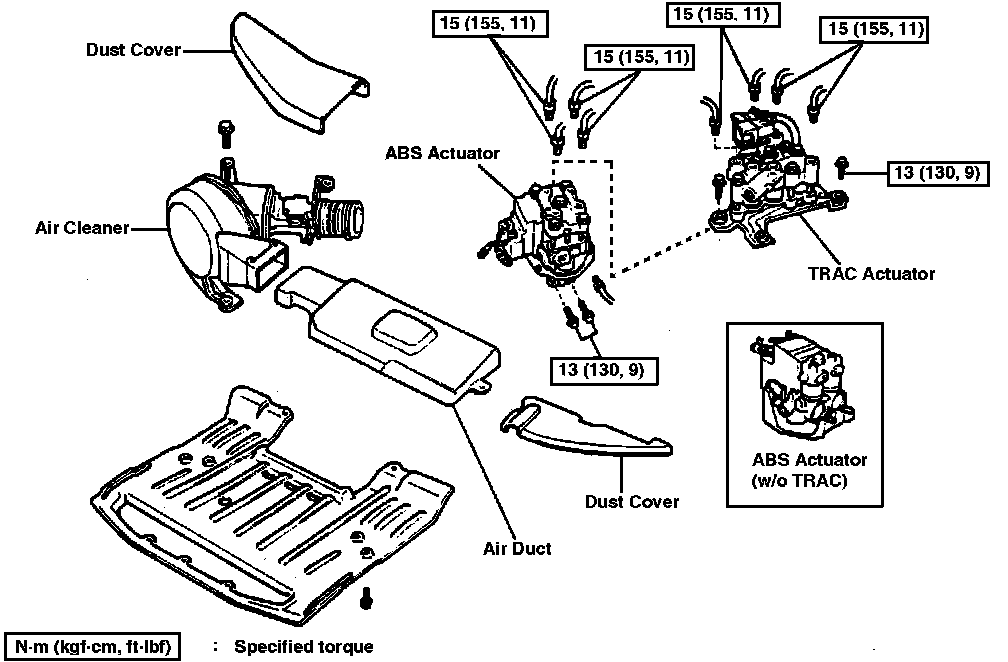

Fig. 23 Actuator Service (Part 1 Of 2):

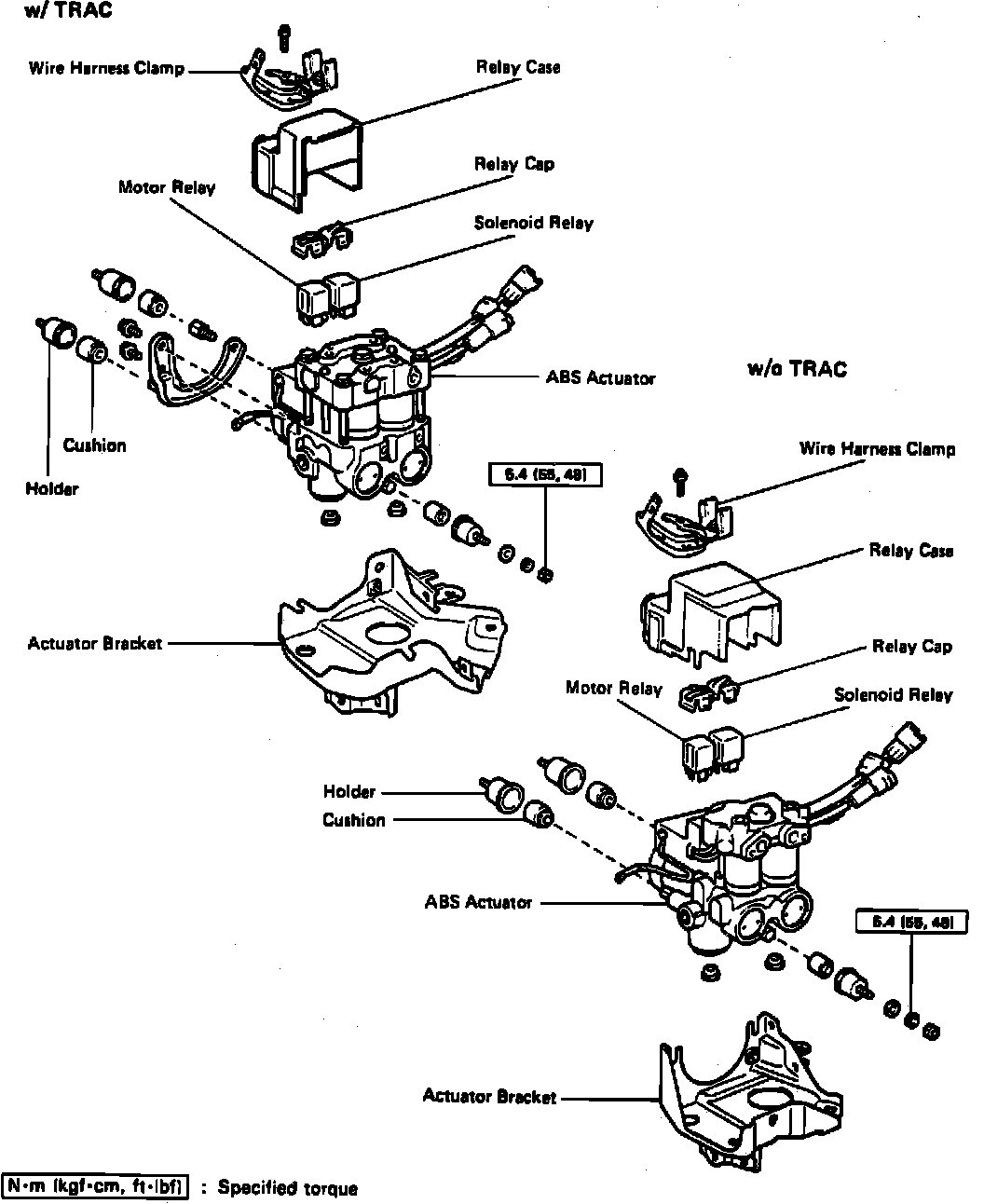

Fig. 23 Actuator Service (Part 2 Of 2):

Refer to Fig. 23, when removing the actuator, noting the following:
1. On models with TRAC, remove TRAC actuator.
2. On all models, using brake tube union nut wrench tool No. 09751-36011 or equivalent, disconnect the brake tubes from actuator.
3. Reverse procedure to install, bleeding the brake system when operation is complete.
