Air Mix Control Motor

REMOVAL

1. REMOVE AIR MIX SERVOMOTOR (Driver Side)
a. Remove these parts:
1. No.1 undercover
2. No.1 safety pad

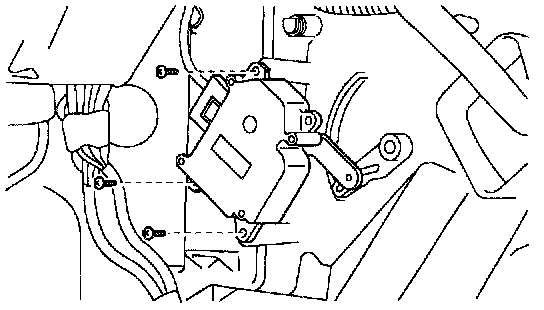

b. Remove the air mix servomotor.
1. Disconnect the connector.
2. Remove the 3 screws and servomotor.

2. REMOVE AIR MIX SERVOMOTOR (Passenger Side)
a. Remove heater radiator.

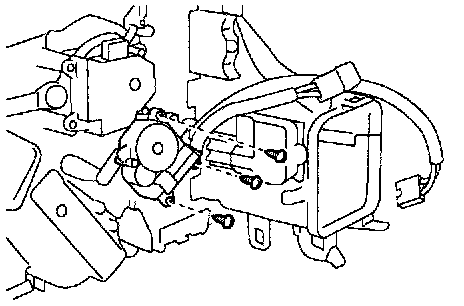

b. Remove the air mix servomotor.
1. Disconnect the connector.
2. Remove the 3 screws and servomotor.

INSTALLATION
Installation is in the reverse order of removal.
