Antenna Relay: Testing and Inspection

Auto Antenna Models:
INSPECT ANTENNA MOTOR CONTROL RELAY CIRCUIT

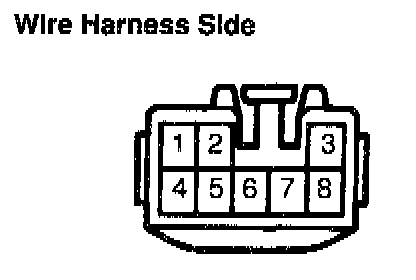

Disconnect the connector from the relay and inspect the

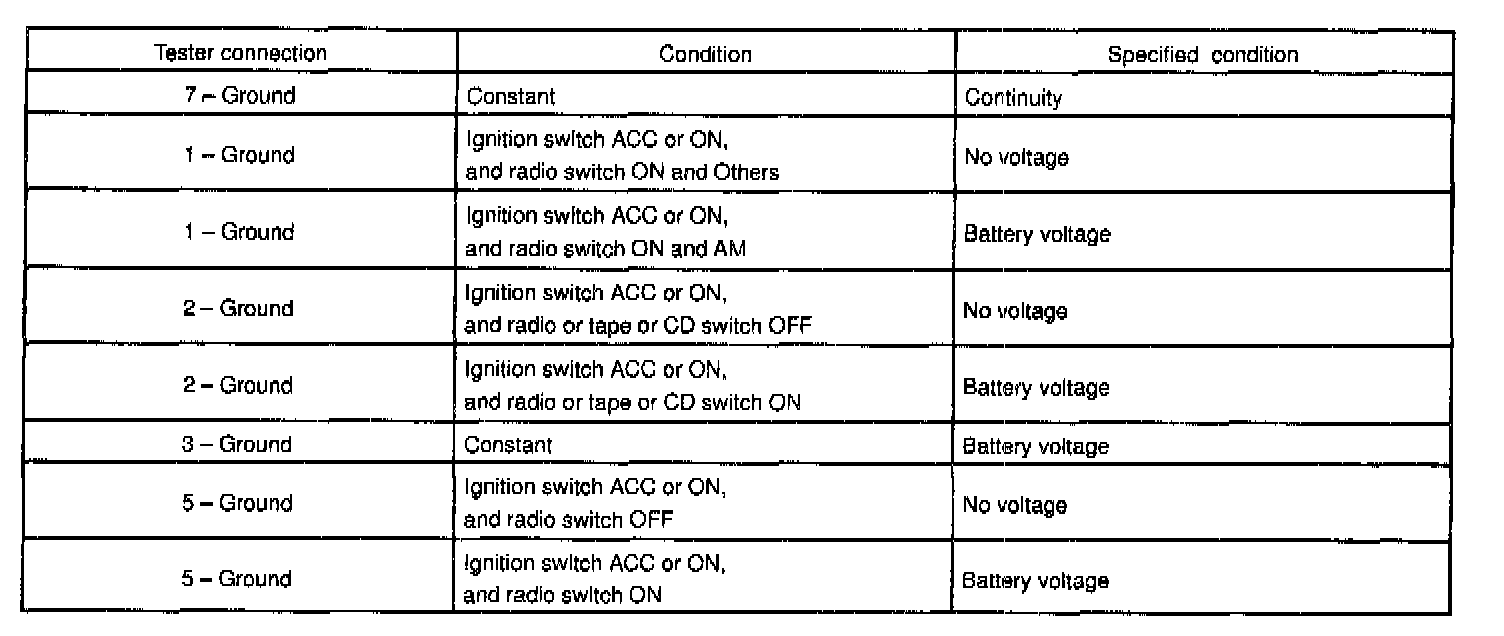

connector on wire harness side, as shown in the chart below.
