Air Mix Control Motor

REMOVAL

1. REMOVE THESE PARTS:
a. No.1 lower panel
b. Lower LH panel




2. REMOVE AIR MIX SERVOMOTOR
a. Disconnect the connector.

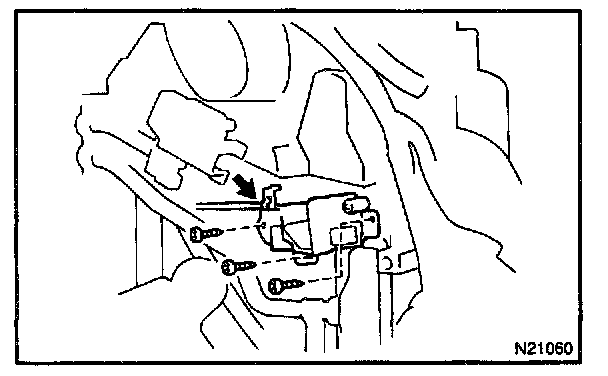

b. Remove the 3 screws and servomotor, then disconnect the control cable.

INSTALLATION
Installation is in the reverse order of removal.
