Component Locations

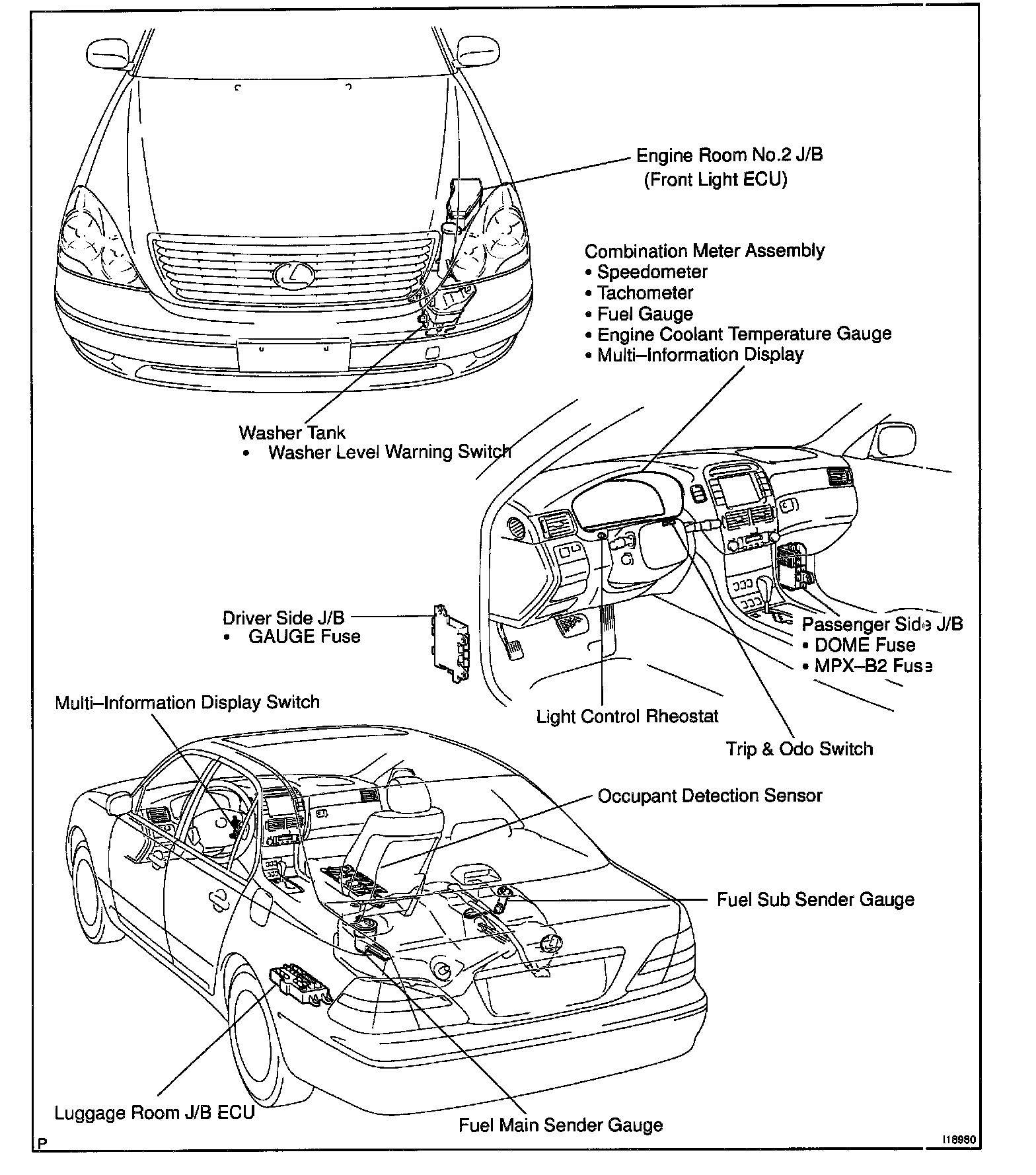

Combination Meter System:

Illumination Light System (Part 1):

Illumination Light System (Part 2):

Combination Meter:

Combination Meter:
