Cellular Phone Communication Circuit

CIRCUIT DESCRIPTION

This circuit detects the stale of the steering pad switch and sends it to the cellular phone.

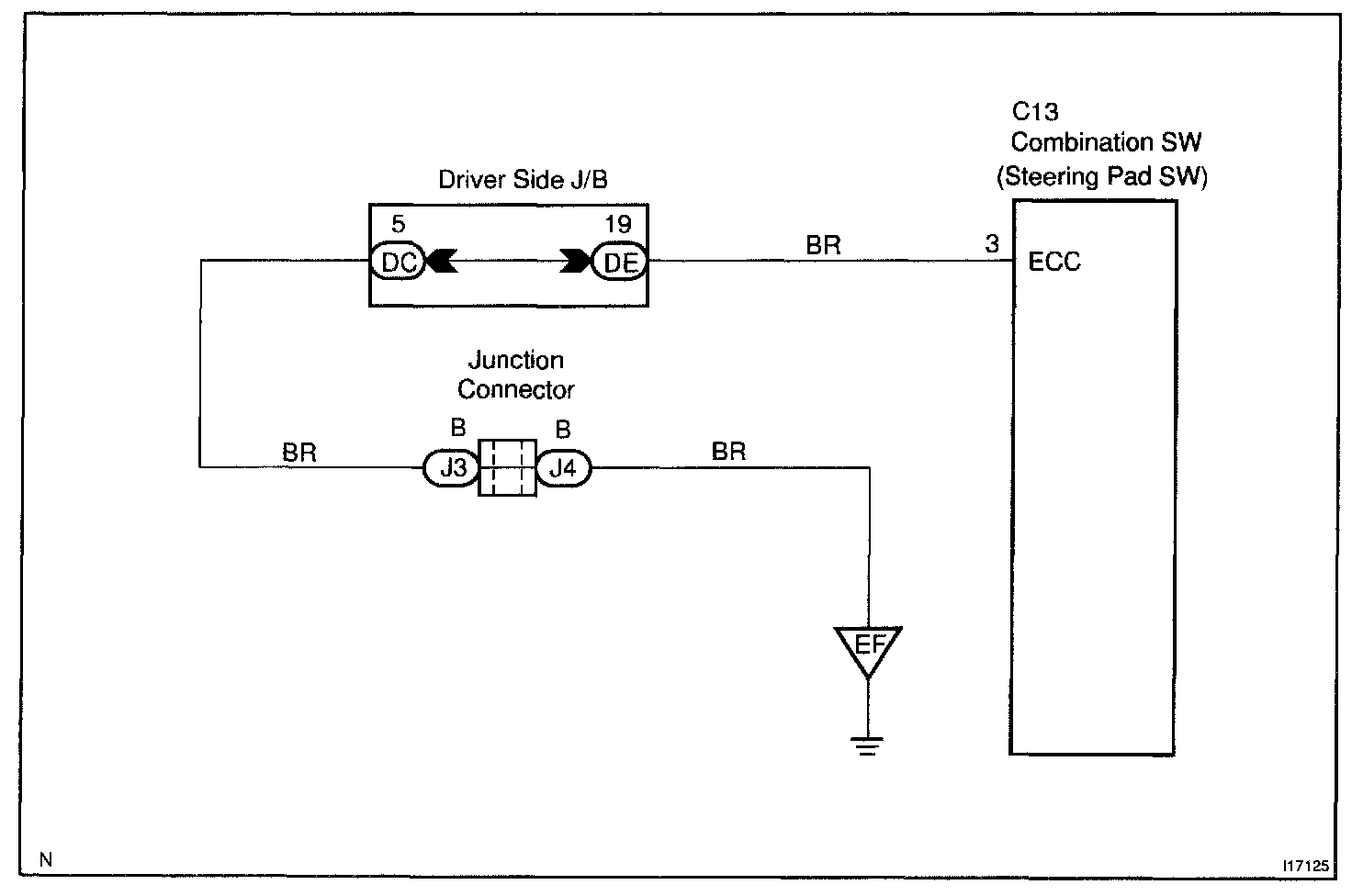

Wiring Diagram:

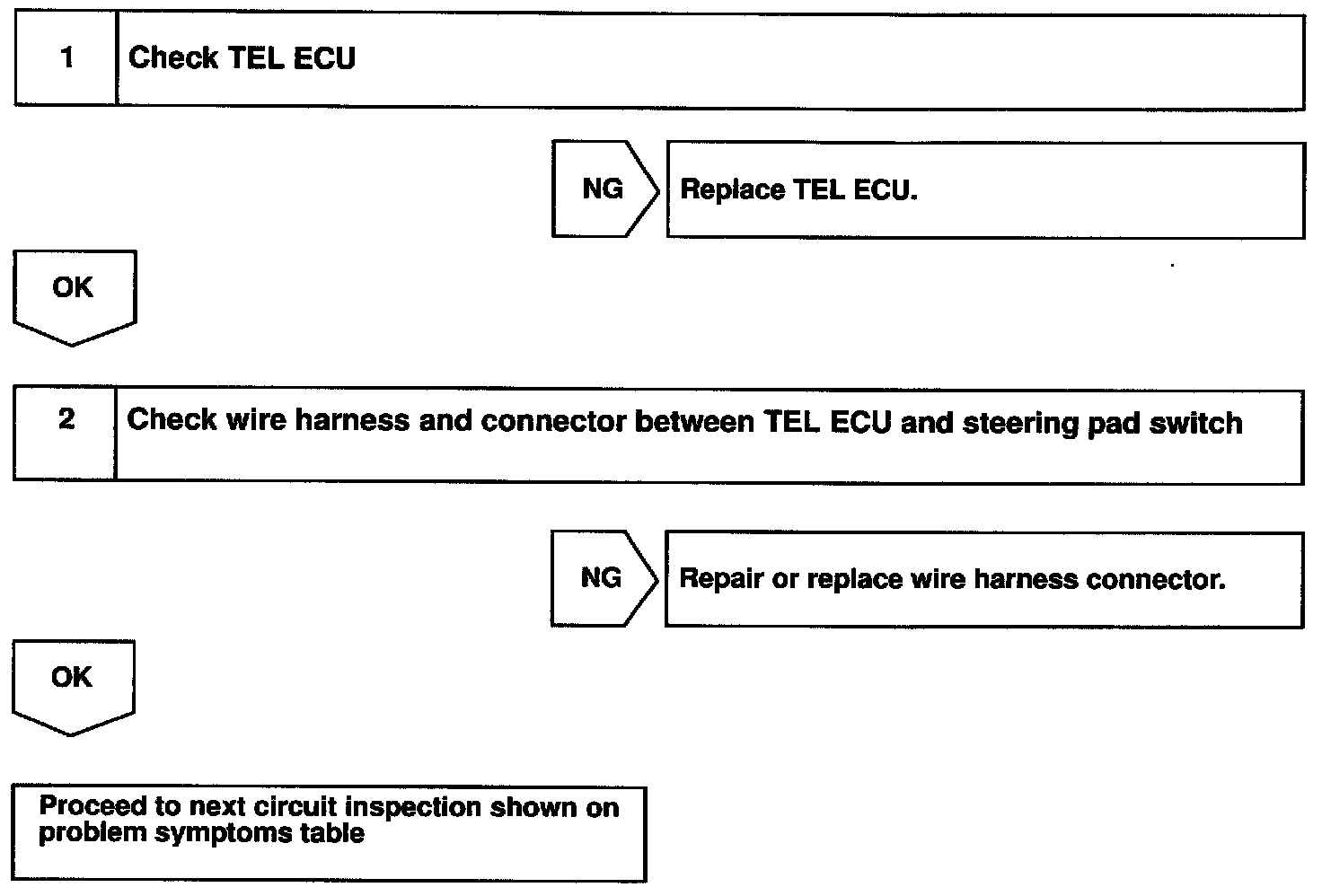

Step 1 - 2:




INSPECTION PROCEDURE
