Diesel Data
: Automotive Repair
Home
>>
Lexus
>>
2003
>>
LS 430 V8-4.3L (3UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>
H12 - I21
H12 - I21

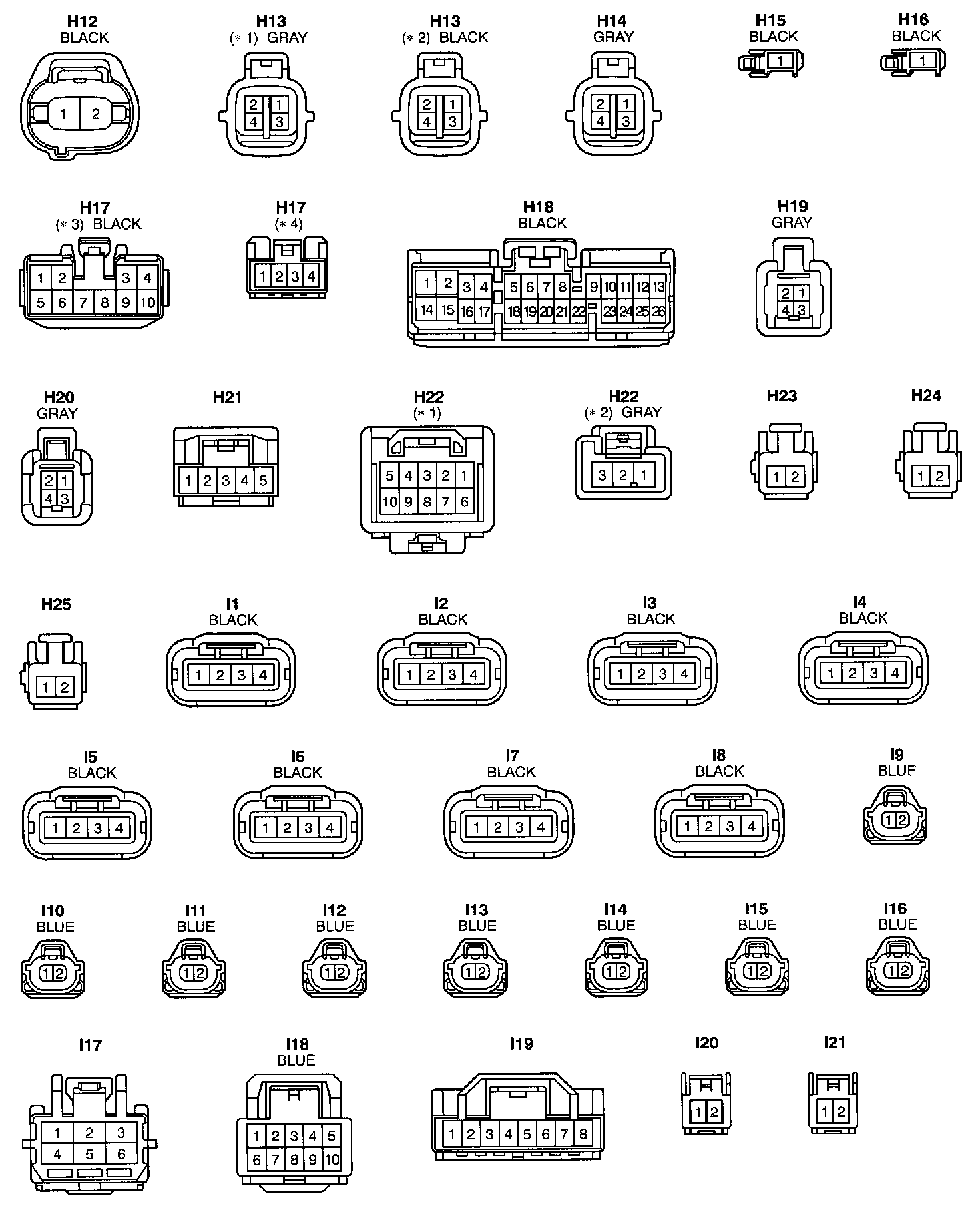

H12 - I21:
