Home
>>
Lexus
>>
2003
>>
LS 430 V8-4.3L (3UZ-FE)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Air Bag
>>
Air Bag Harness
>>
Locations
>>
Connector Locations
Connector Locations

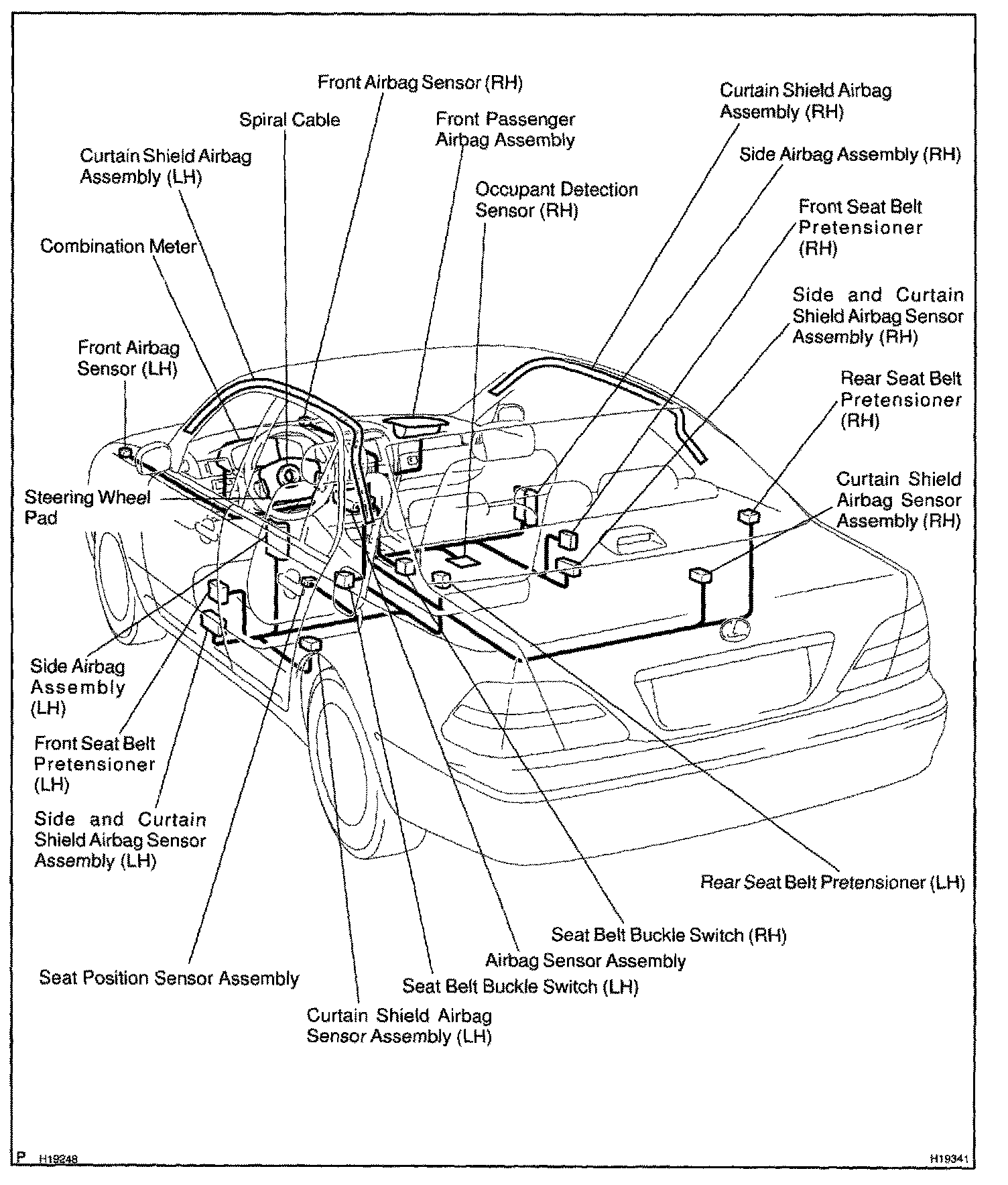

Wire Harness And Connector:
