Diesel Data
: Automotive Repair
Home
>>
Lexus
>>
2008
>>
IS 250 RWD V6-2.5L (4GR-FSE)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Brake Pedal Assy
>>
Service and Repair
>>
Components
Components

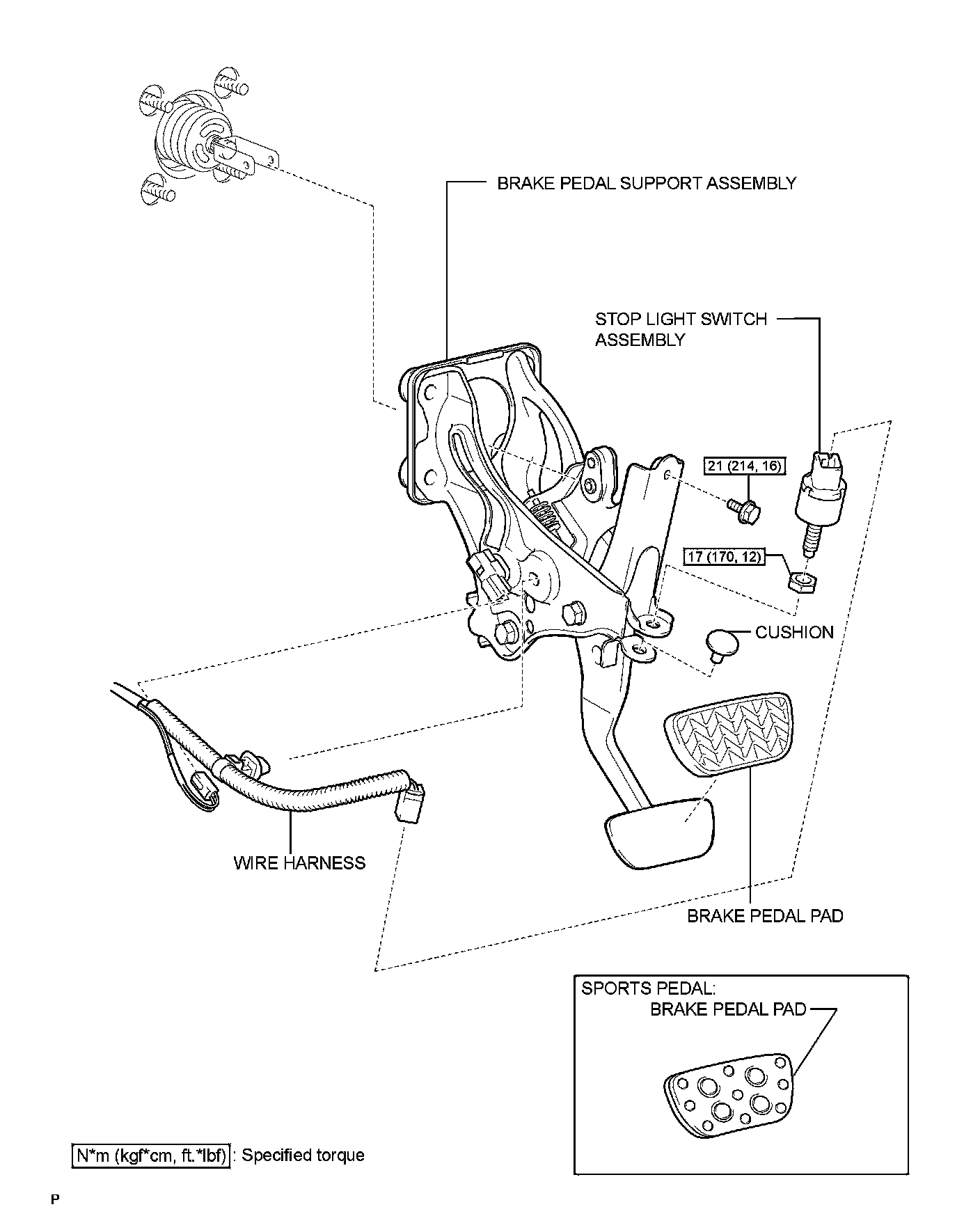

BRAKE PEDAL:
COMPONENTS
