Removal

CLUTCH ACCUMULATOR:

REMOVAL

1. DISCONNECT CLUTCH LINE






(a) Remove the bolt and separate the clutch line clamp.

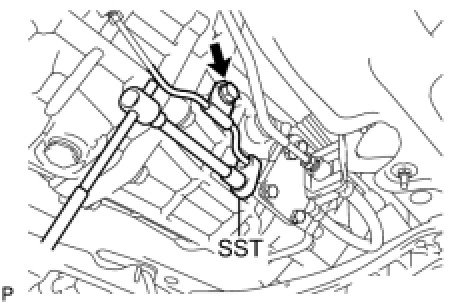

(b) Using SST, disconnect the clutch line.
SST: 09023-00101
HINT: Use a container to catch the fluid.

2. REMOVE CLUTCH TUBE

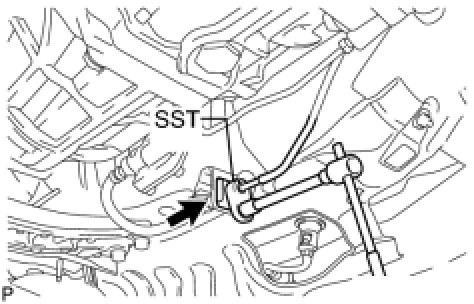

(a) Using SST, disconnect the clutch line.
SST: 09023-00101
HINT: Use a container to catch the fluid.

(b) Remove the clip and disconnect the clutch tube.
HINT: Use a container to catch the fluid.

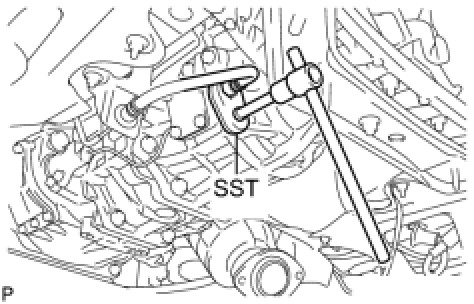

(c) Using SST, remove the clutch tube.
SST: 09023-12701
HINT: Use a container to catch the fluid.

3. REMOVE CLUTCH ACCUMULATOR ASSEMBLY

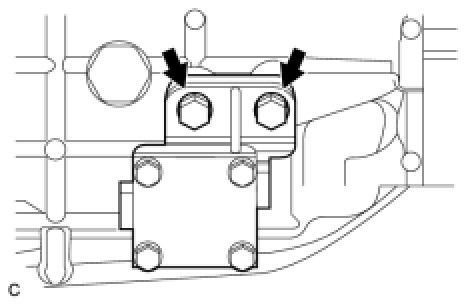

(a) Remove the 2 bolts and clutch accumulator.
