Installation

2GR-FSE ENGINE MECHANICAL: ENGINE REAR OIL SEAL:

INSTALLATION

1. INSTALL ENGINE REAR OIL SEAL

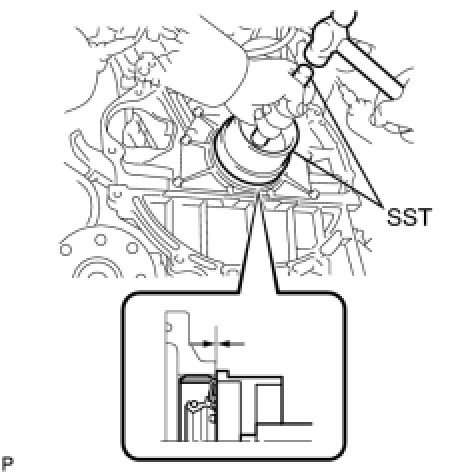

(a) Using SST and a hammer, tap in the oil seal until its surface is flush with the rear oil seal retainer edge.
SST: 09223-15030
SST: 09950-70010
09951-07150
- Wipe off extra grease of the crankshaft.
- Keep the lip free of foreign matter.
- Do not tap on the oil seal at an angle.

2. INSTALL DRIVE PLATE AND RING GEAR SUB-ASSEMBLY Installation

3. INSTALL AUTOMATIC TRANSMISSION ASSEMBLY Installation.

4. CHECK FOR ENGINE OIL LEAKS
