Seat Belt Tensioner Reduction Solenoid
Seat Belt Tensioner Reduction Solenoid

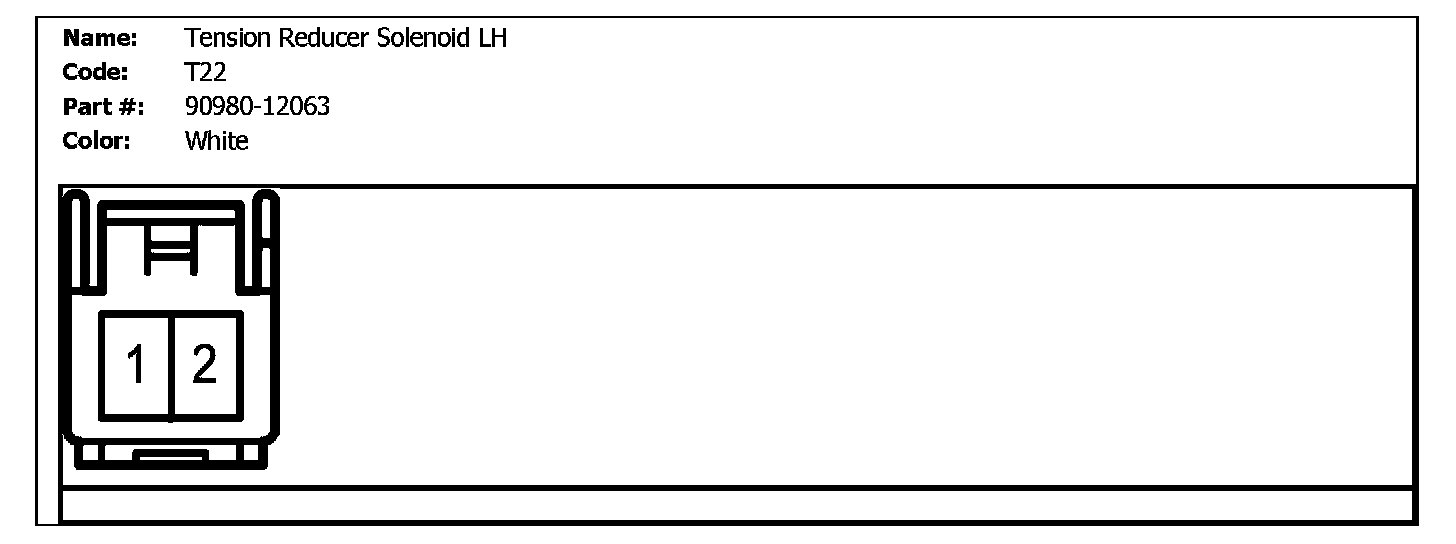

T22 (Tension Reducer Solenoid LH):

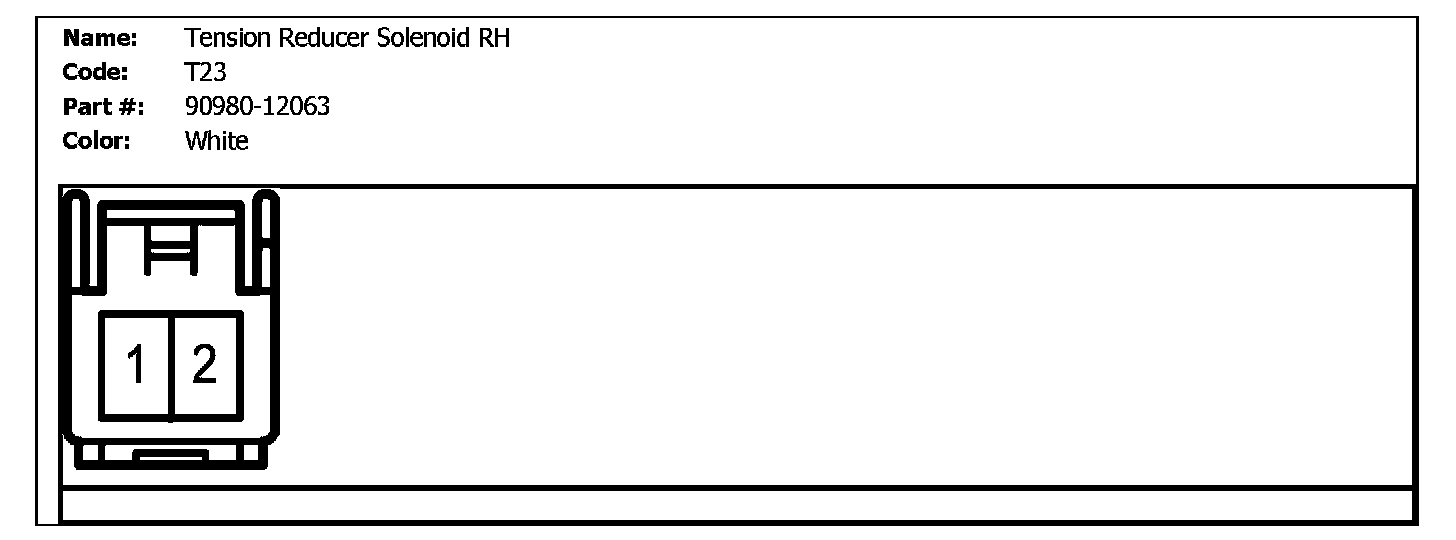

T23 (Tension Reducer Solenoid RH):
