Home >> Lexus >> 2008 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Drive/Propeller Shafts, Bearings and Joints >> Drive/Propeller Shaft >> Service and Repair >> Components

Components

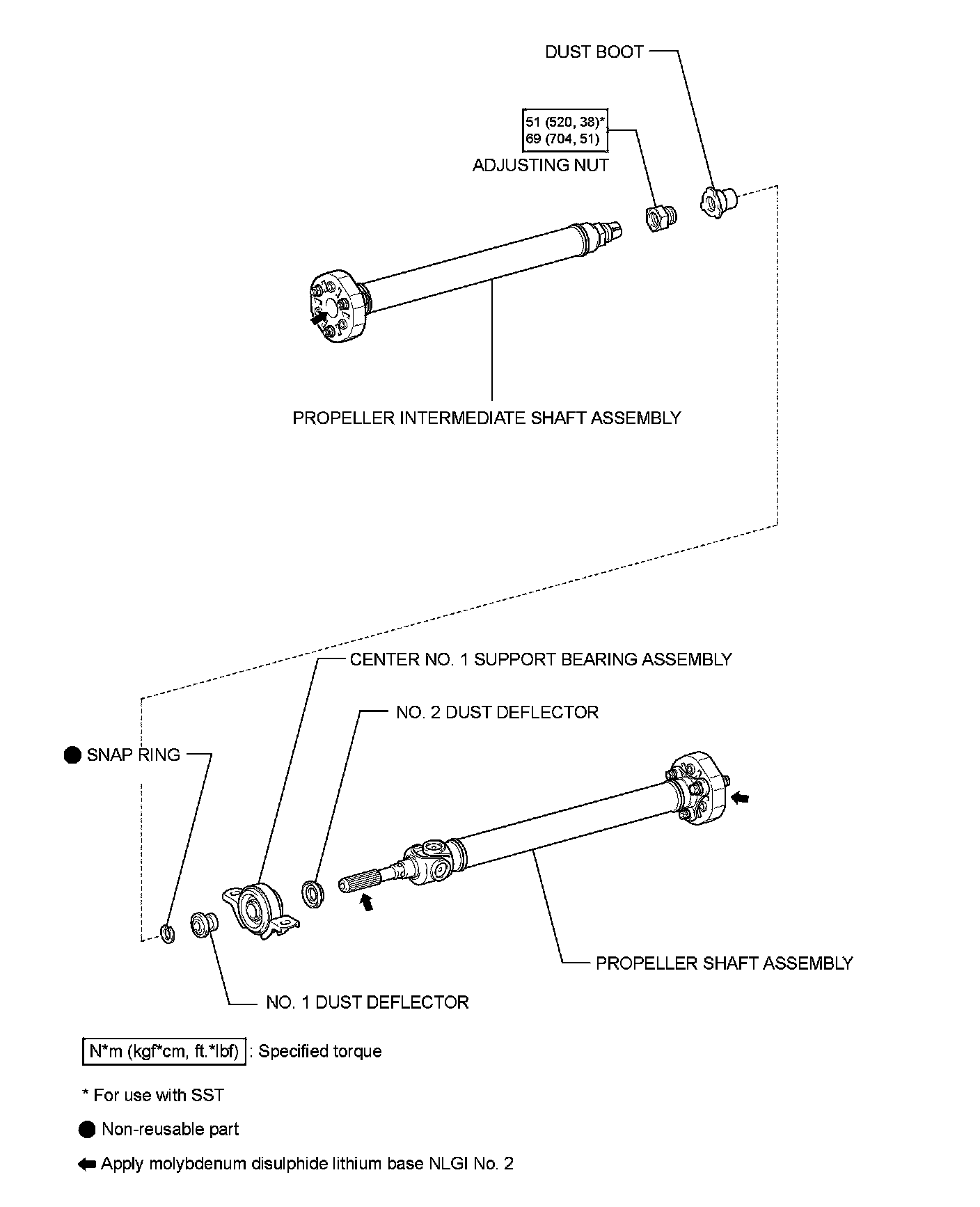

PROPELLER SHAFT: REAR PROPELLER SHAFT ASSEMBLY:

COMPONENTS
