Body Control Module
Body Control Module

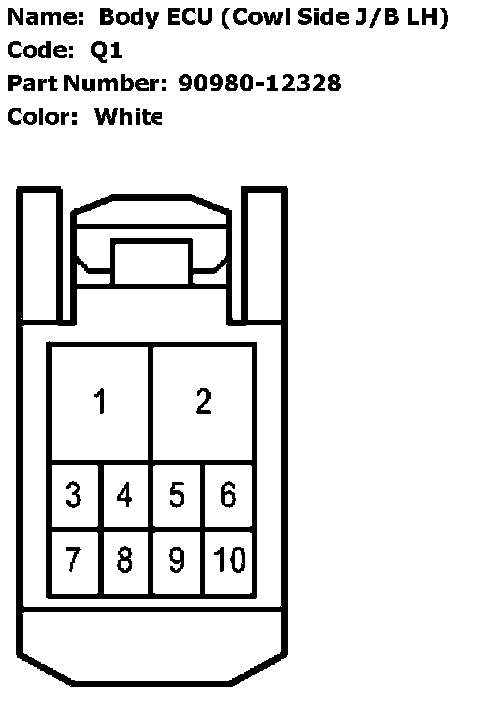

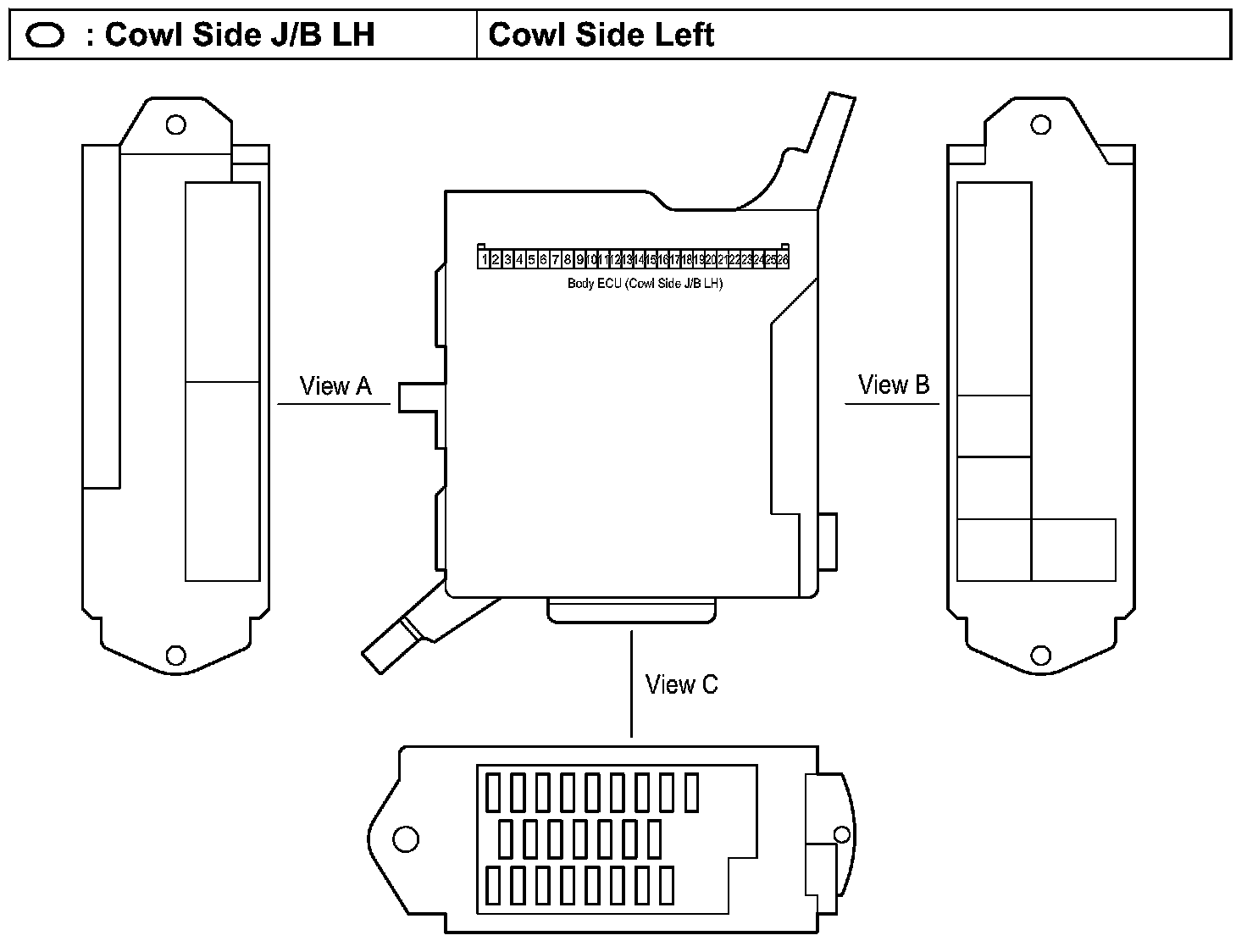

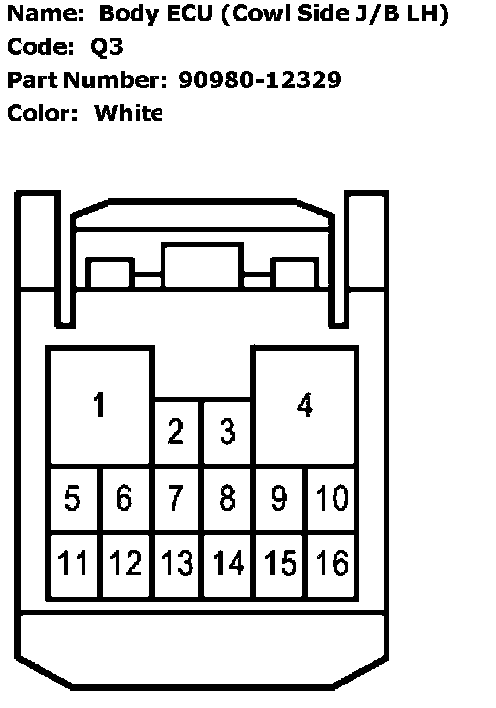

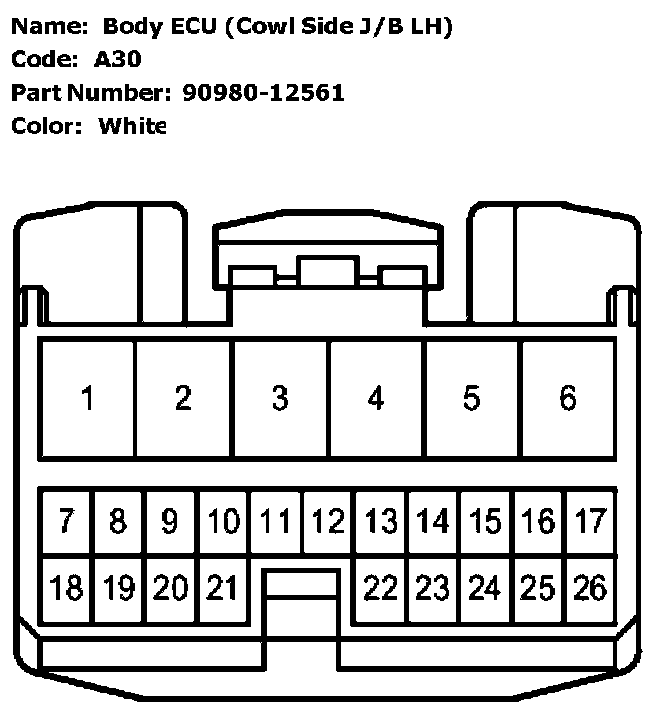

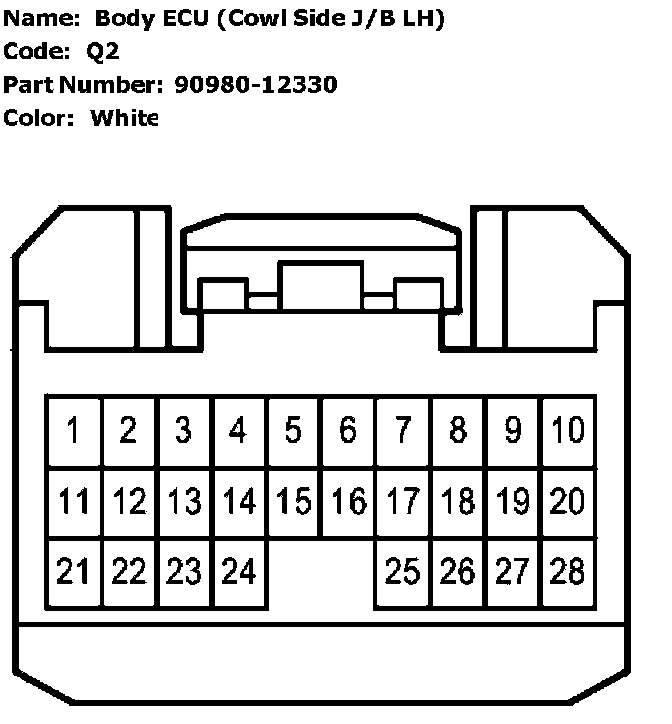

Cowl Side J/B LH - Cowl Side Left:

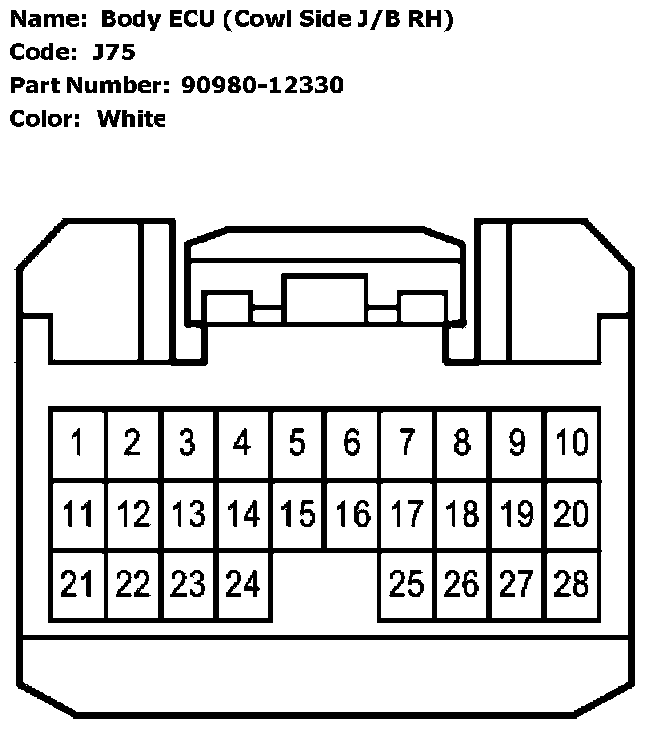

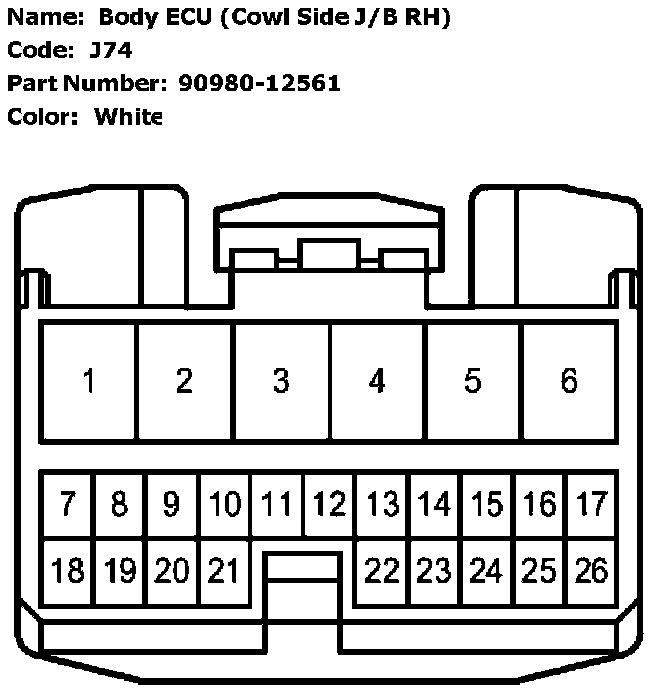

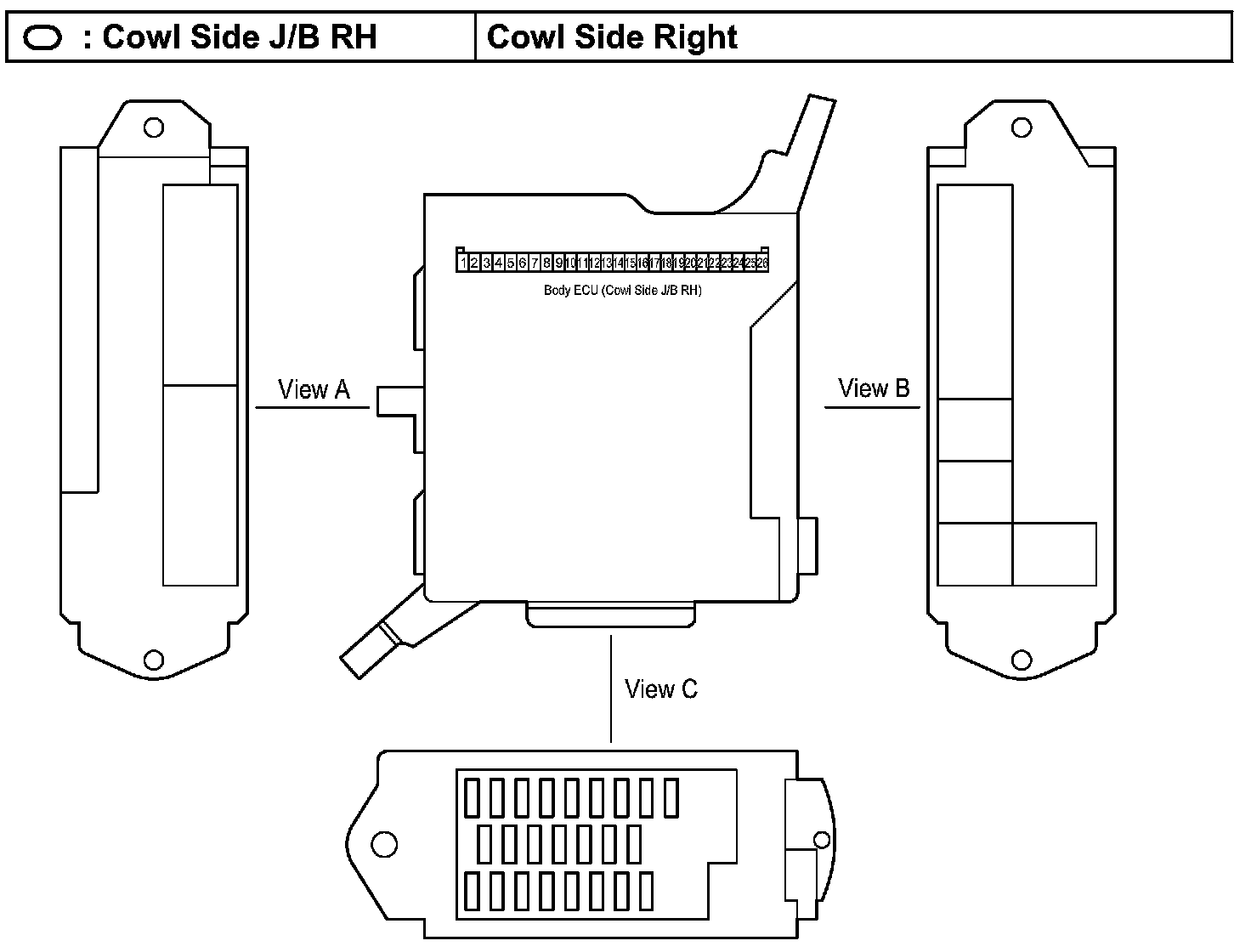

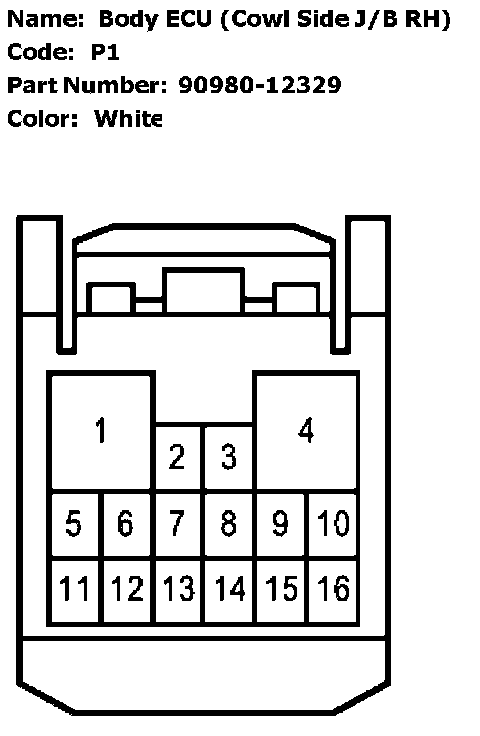

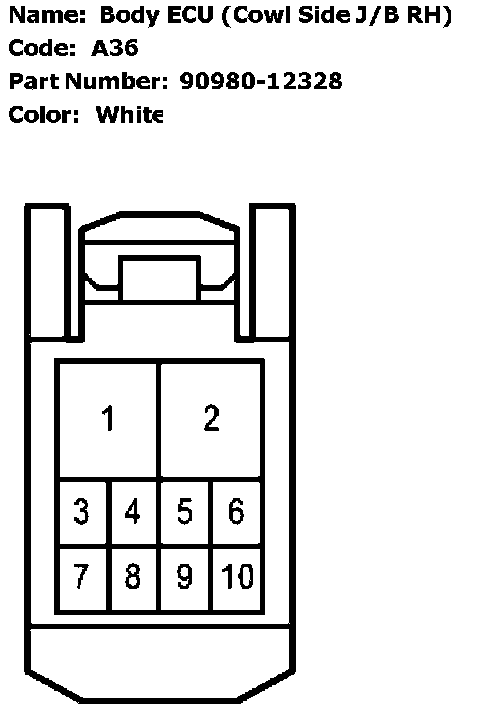

Cowl Side J/B RH - Cowl Side Right:
