Diesel Data
: Automotive Repair
Home
>>
Lexus
>>
2009
>>
IS 350 V6-3.5L (2GR-FSE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>
Q-Z
>>

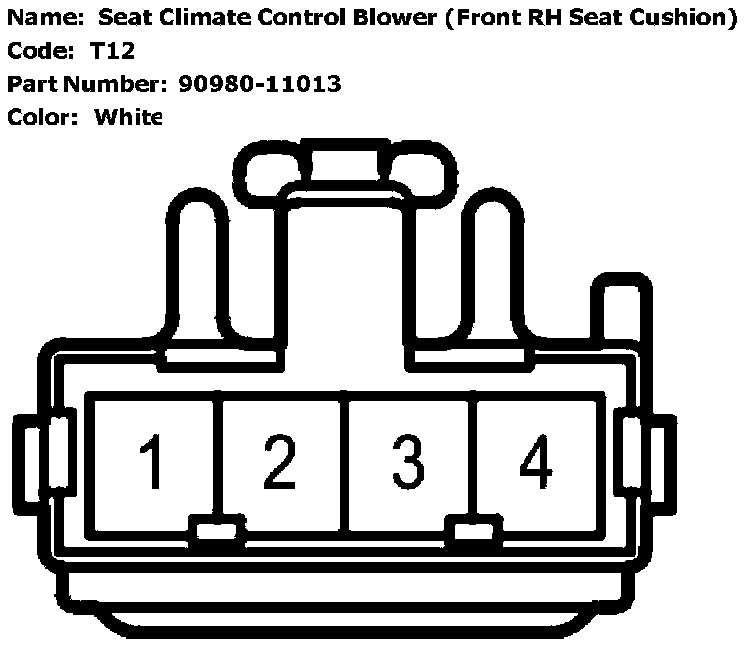

T12 (Seat Climate Control Blower (Front RH Seat Cushion))
T12 (Seat Climate Control Blower (Front RH Seat Cushion))
