Seat Belt Tensioner: Testing and Inspection








SEAT BELT: SEAT BELT TENSION REDUCER: PROBLEM SYMPTOMS TABLE

PROBLEM SYMPTOMS TABLE

Seat Belt Tension Reducer

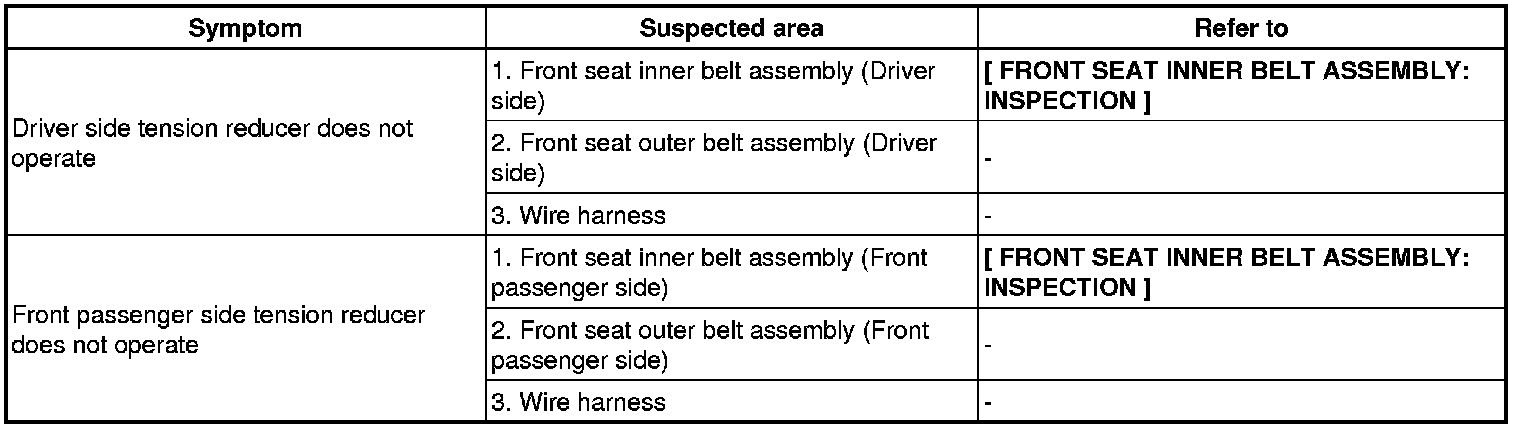

Symptom Chart:
