Removal

CLUTCH: CLUTCH ACCUMULATOR: REMOVAL

REMOVAL

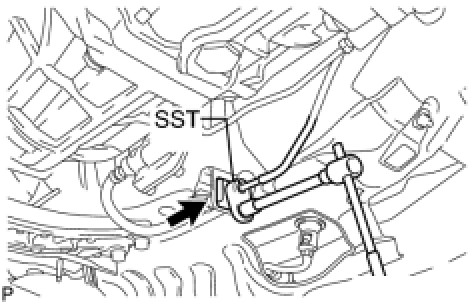

1. DISCONNECT CLUTCH LINE





(a) Remove the bolt and separate the clutch line clamp.
(b) Using SST, disconnect the clutch line.
SST: 09023-00101
HINT:
Use a container to catch the fluid.

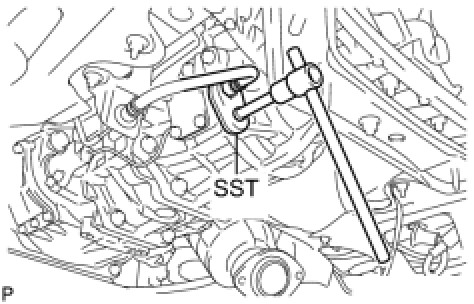

2. REMOVE CLUTCH TUBE





(a) Using SST, disconnect the clutch line.
SST: 09023-00101
HINT:
Use a container to catch the fluid.

(b) Remove the clip and disconnect the clutch tube.
HINT:
Use a container to catch the fluid.

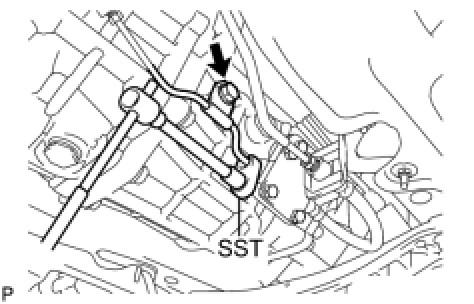

(c) Using SST, remove the clutch tube.
SST: 09023-12701
HINT:
Use a container to catch the fluid.

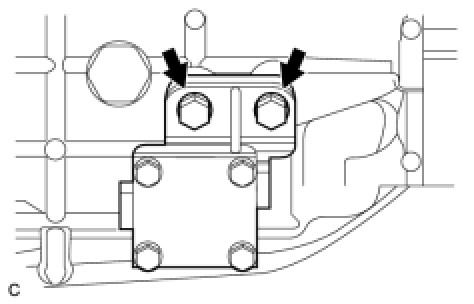

3. REMOVE CLUTCH ACCUMULATOR ASSEMBLY





(a) Remove the 2 bolts and clutch accumulator.
