Removal

CLUTCH: CLUTCH RELEASE CYLINDER: REMOVAL

REMOVAL

1. SEPARATE CLUTCH ACCUMULATOR ASSEMBLY





(a) Remove the 3 bolts and separate the clutch accumulator assembly.
2. DISCONNECT CLUTCH LINE

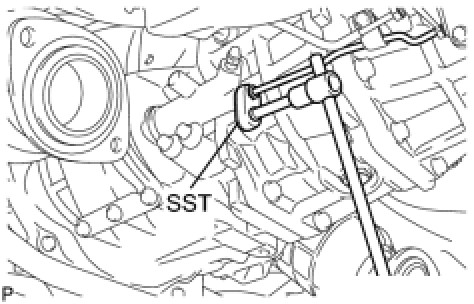

(a) Using SST, disconnect the clutch line.
SST: 09023-00101
HINT:
Use a container to catch the fluid.





3. REMOVE CLUTCH RELEASE CYLINDER ASSEMBLY
(a) Remove the 2 bolts and clutch release cylinder.
