Diesel Data
: Automotive Repair
Home
>>
Lexus
>>
2009
>>
IS 350 V6-3.5L (2GR-FSE)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Clutch
>>
Clutch Pedal Assembly
>>
Service and Repair
>>
Components
Components

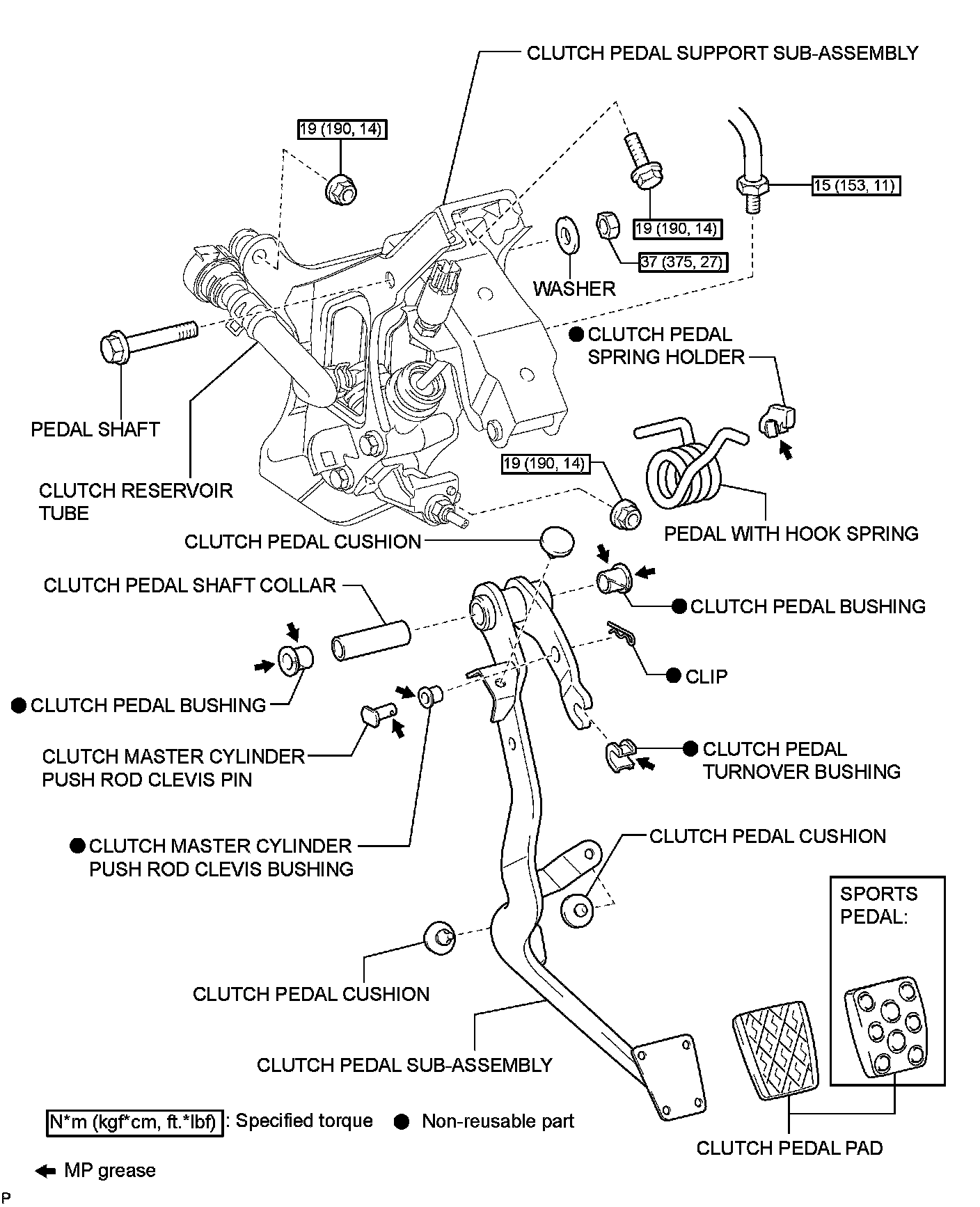

CLUTCH: CLUTCH PEDAL: COMPONENTS
COMPONENTS
ILLUSTRATION
