Propeller Shaft System
PROPELLER SHAFT: PROPELLER SHAFT SYSTEM: PROBLEM SYMPTOMS TABLE
PROBLEM SYMPTOMS TABLE
Use the table below to help find the cause of the problem. Check each part. If necessary, replace these parts.
FRONT PROPELLER SHAFT ASSEMBLY (for 4WD)

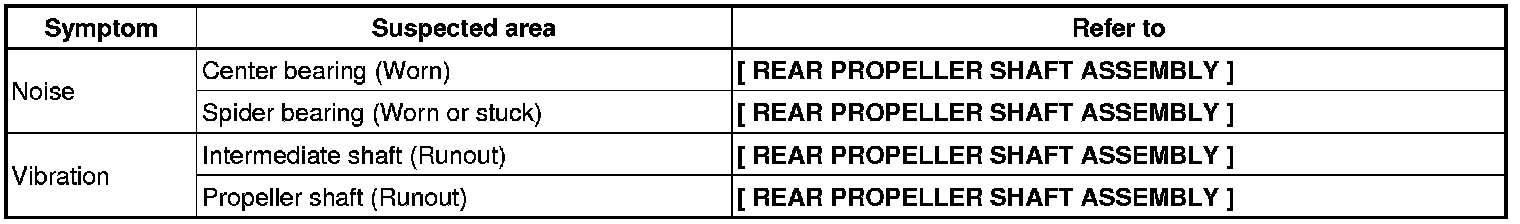

Symptom Chart (Part 1):
REAR PROPELLER SHAFT ASSEMBLY (2GR-FSE)

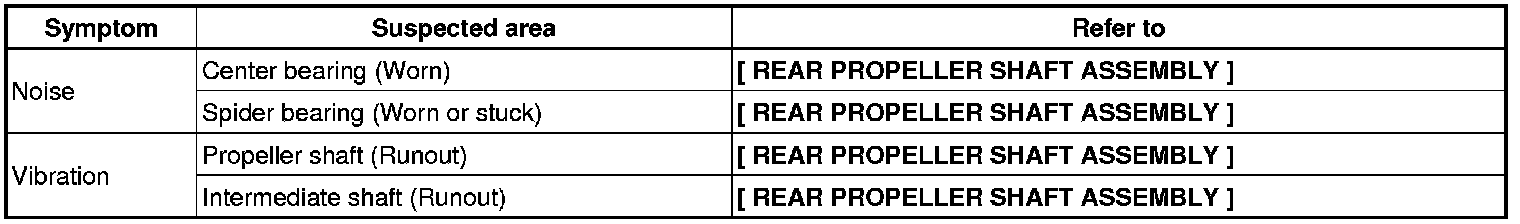

Symptom Chart (Part 2):
REAR PROPELLER SHAFT ASSEMBLY (4GR-FSE)
