Diesel Data
: Automotive Repair
Home
>>
Lexus
>>
2010
>>
IS 350C V6-3.5L (2GR-FSE)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Hydraulic System
>>
Hydraulic Control Assembly - Antilock Brakes
>>
Service and Repair
>>
Components
Components

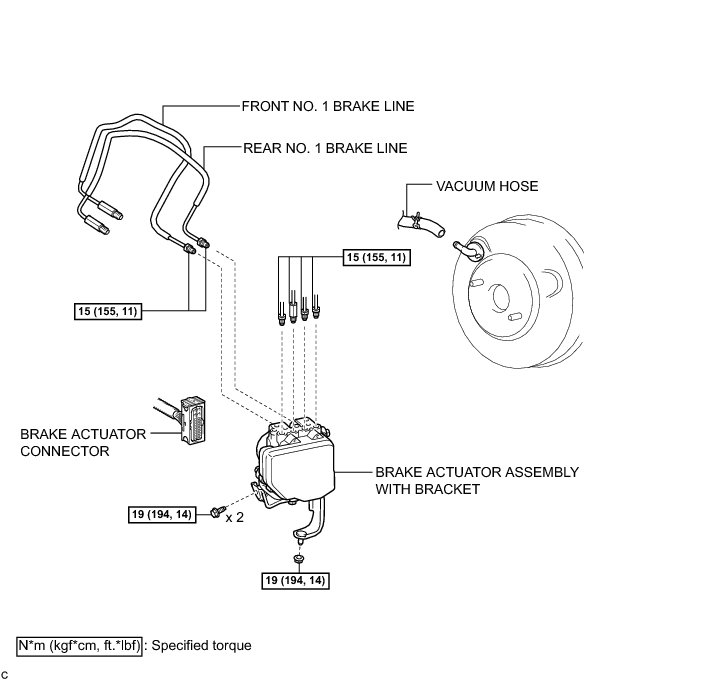

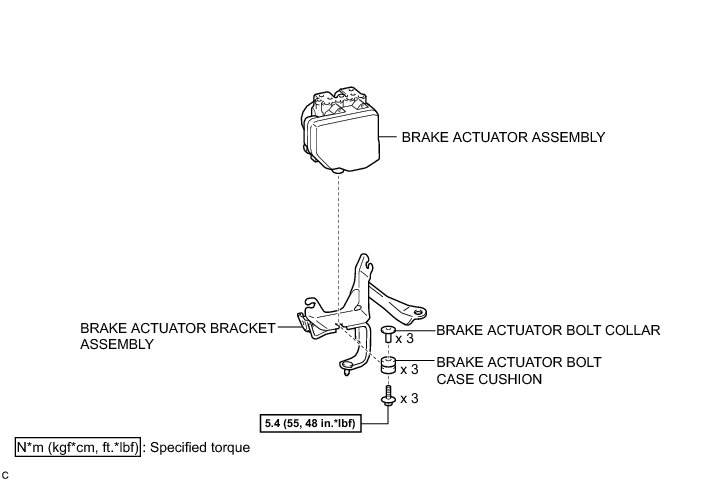

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: BRAKE ACTUATOR: COMPONENTS
